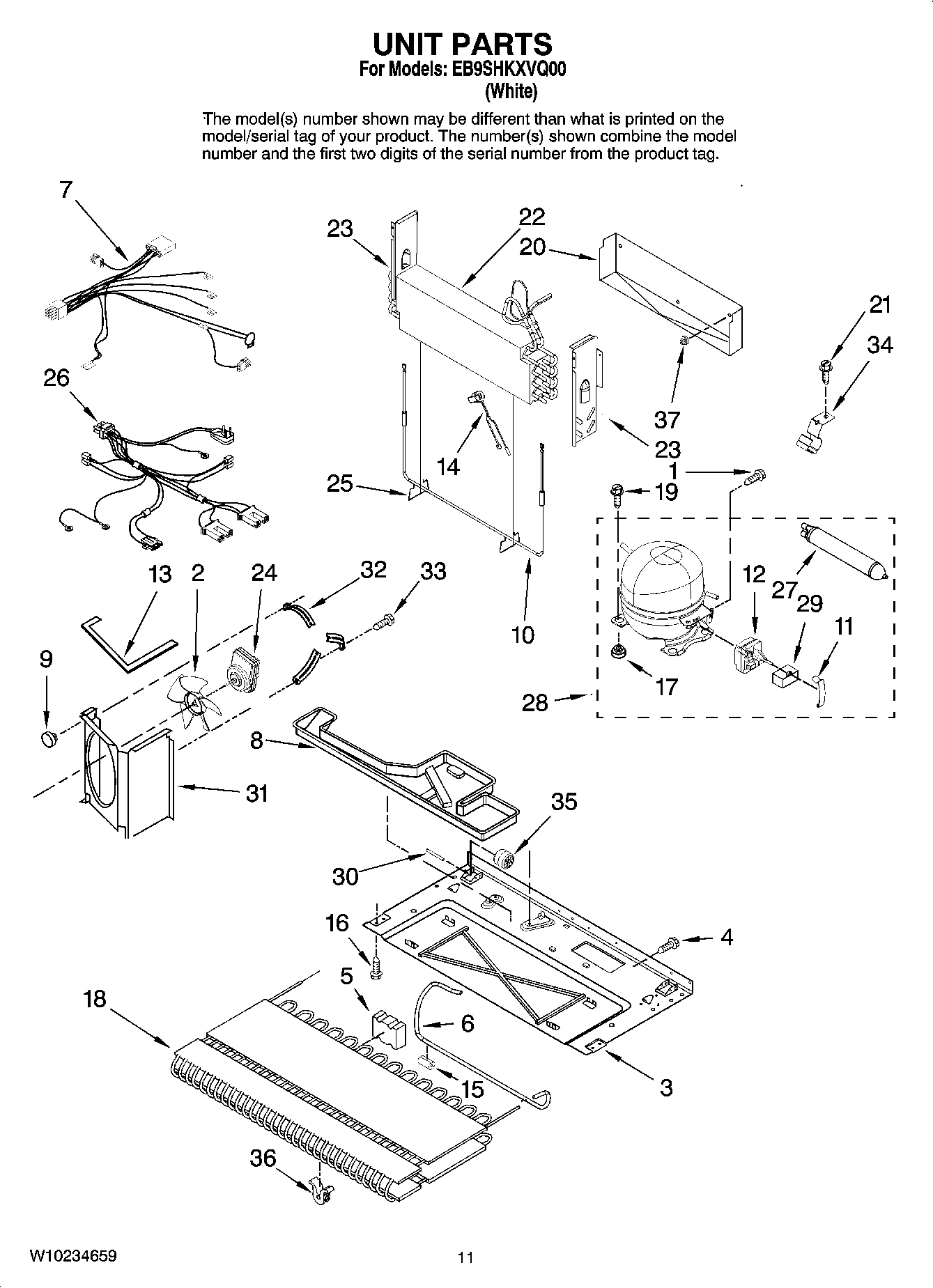

EB9SHKXVQ00 06 – UNIT PARTS

EB9SHKXVQ00 06 – UNIT PARTS

Written by

in

EB9SHKXVQ00 06 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	Block, Condenser
6	Tube, Discharge
7	Harness, Evap. Heater
8	Drain Pan
9	Grommet (3)
10	WP67002135 Whirlpool Refrigerator Defrost Heater
11	Clip, Capacitor
12	8201769 Whirlpool Refrigerator Compressor Relay Overload Start Device
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	WPW10169124 Whirlpool Refrigerator Grommet
18	W10346423 Whirlpool Refrigerator Condenser
19	12846902 Whirlpool Refrigerator Screw
20	W11337775 Whirlpool Drip Tray
21	WP33001882 Whirlpool Screw
22	EVAPORATOR
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	13060302 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29	W10613606 Whirlpool Refrigerator Start Device Relay Overload
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	WP67004953 Whirlpool Refrigerator Bracket
33	WP67004954 Whirlpool Refrigerator Screw
34	10547003 Whirlpool Refrigerator Dryer Clip
35	WP67005149 Whirlpool Roller
36	WPW10137529 Whirlpool Refrigerator Grommet
37	CLIP, EVAP (2)
