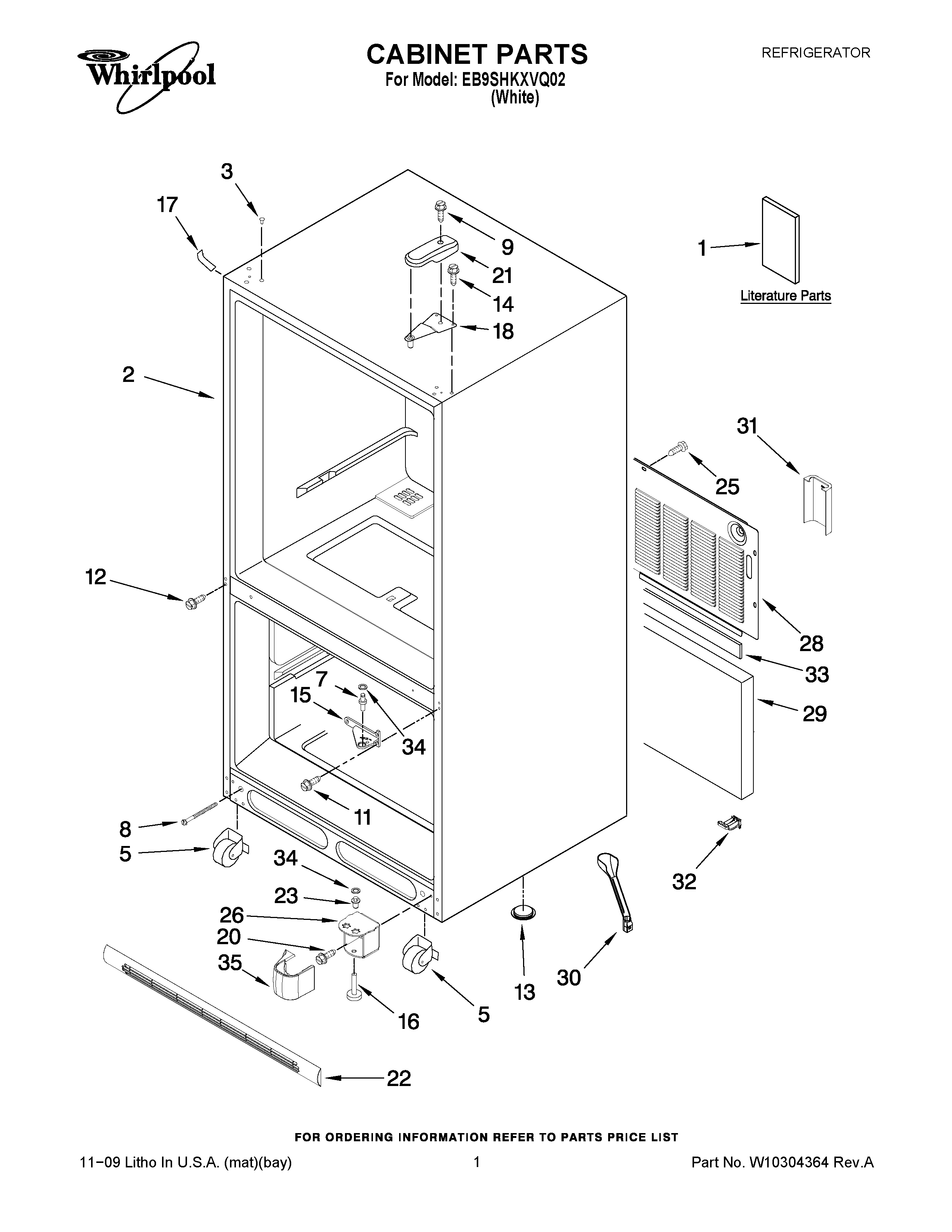

EB9SHKXVQ02 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Use & Care Guide
1	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	WP67001130 Whirlpool Refrigerator White Button Plug
5	ROLLER ASSY.(REAR)
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
11	WP67006380 Whirlpool Screw
12	WP489349 Whirlpool Refrigerator Screw
13	A3076901 Whirlpool Refrigerator Plug
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	12587703W Whirlpool Refrigerator Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
20	67006564 Whirlpool Refrigerator Screw
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	GRILLE ASSEMBLY (WHITE)
23	67007018 Whirlpool Refrigerator Bottom Hinge PIN
25	67006425 Whirlpool Refrigerator Screw
26	12465002WD Whirlpool Refrigerator Bottom Hinge
28	W10210978 Whirlpool Refrigerator Back Cover
29	INSULATION, SOUND
30	W10619951 Whirlpool Drain Tube with Grommet
31	W10208592 Whirlpool Refrigerator Valve Cover
32	SWEEP, WATER VALVE
33	B5759655 Whirlpool Refrigerator Gasket
34	WPM0274057 Whirlpool Refrigerator Shim
35	Cover, Hinge (White)
