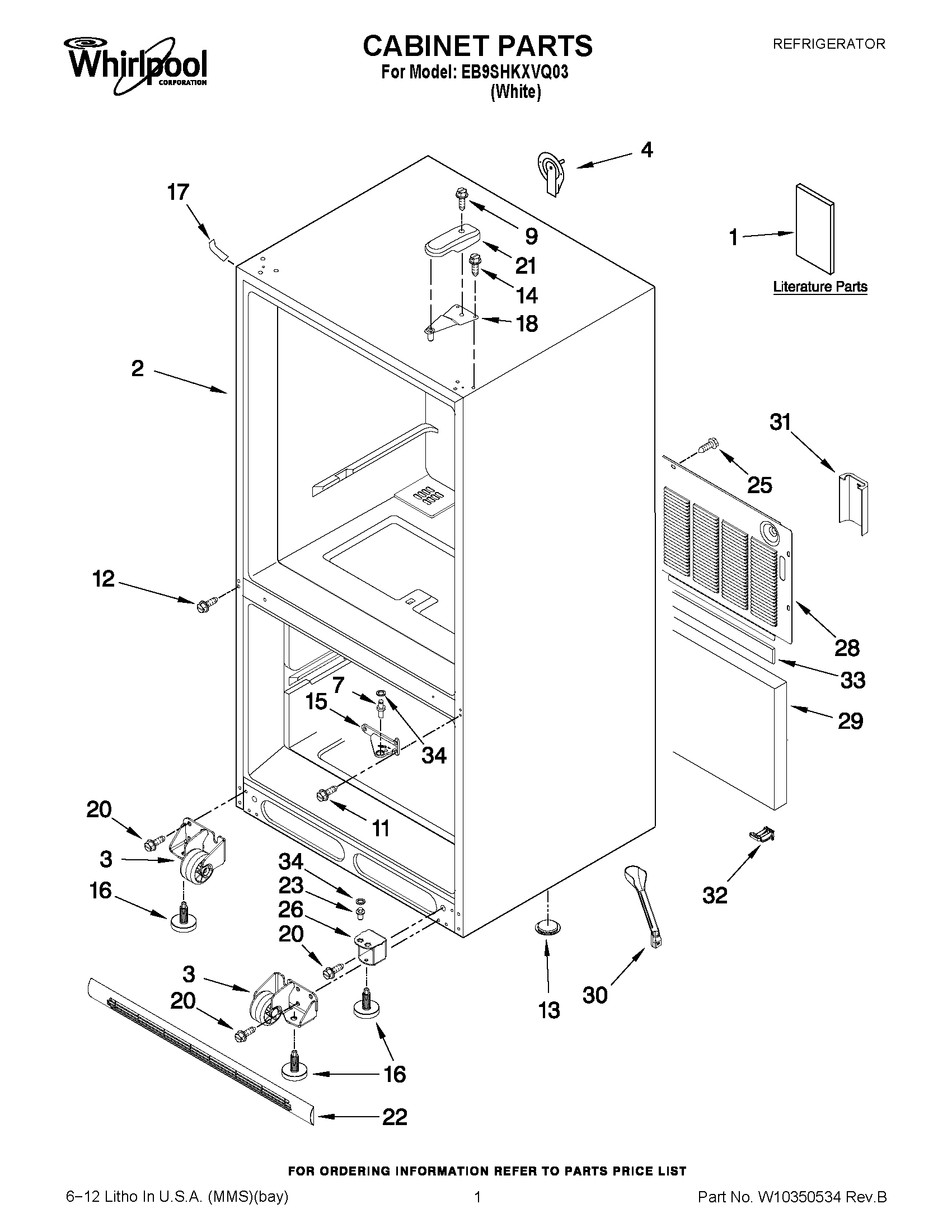

EB9SHKXVQ03 01 – CABINET PARTS

EB9SHKXVQ03 01 – CABINET PARTS

Written by

in

EB9SHKXVQ03 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Use & Care Guide
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10515762 Whirlpool Refrigerator Cabinet Roller
3WPW10515763 Whirlpool Refrigerator Cabinet Roller
412726003 Whirlpool Refrigerator Water Cover
7WP67006744 Whirlpool Refrigerator Center Pin
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
12WP489349 Whirlpool Refrigerator Screw
13A3076901 Whirlpool Refrigerator Plug
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WPW10141622 Whirlpool Leveler
1712587703W Whirlpool Refrigerator Cover
18WP12566606ED Whirlpool Refrigerator Door Hinge
2067006564 Whirlpool Refrigerator Screw
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22WPW10534166 Whirlpool Refrigerator Front Grille
2367007018 Whirlpool Refrigerator Bottom Hinge PIN
2567006425 Whirlpool Refrigerator Screw
26W10315062 Whirlpool Refrigerator Door Hinge
28W10210978 Whirlpool Refrigerator Back Cover
29INSULATION, SOUND
30W10619951 Whirlpool Drain Tube with Grommet
31W10208592 Whirlpool Refrigerator Valve Cover
32SWEEP, WATER VALVE
33B5759655 Whirlpool Refrigerator Gasket
34WPM0274057 Whirlpool Refrigerator Shim
