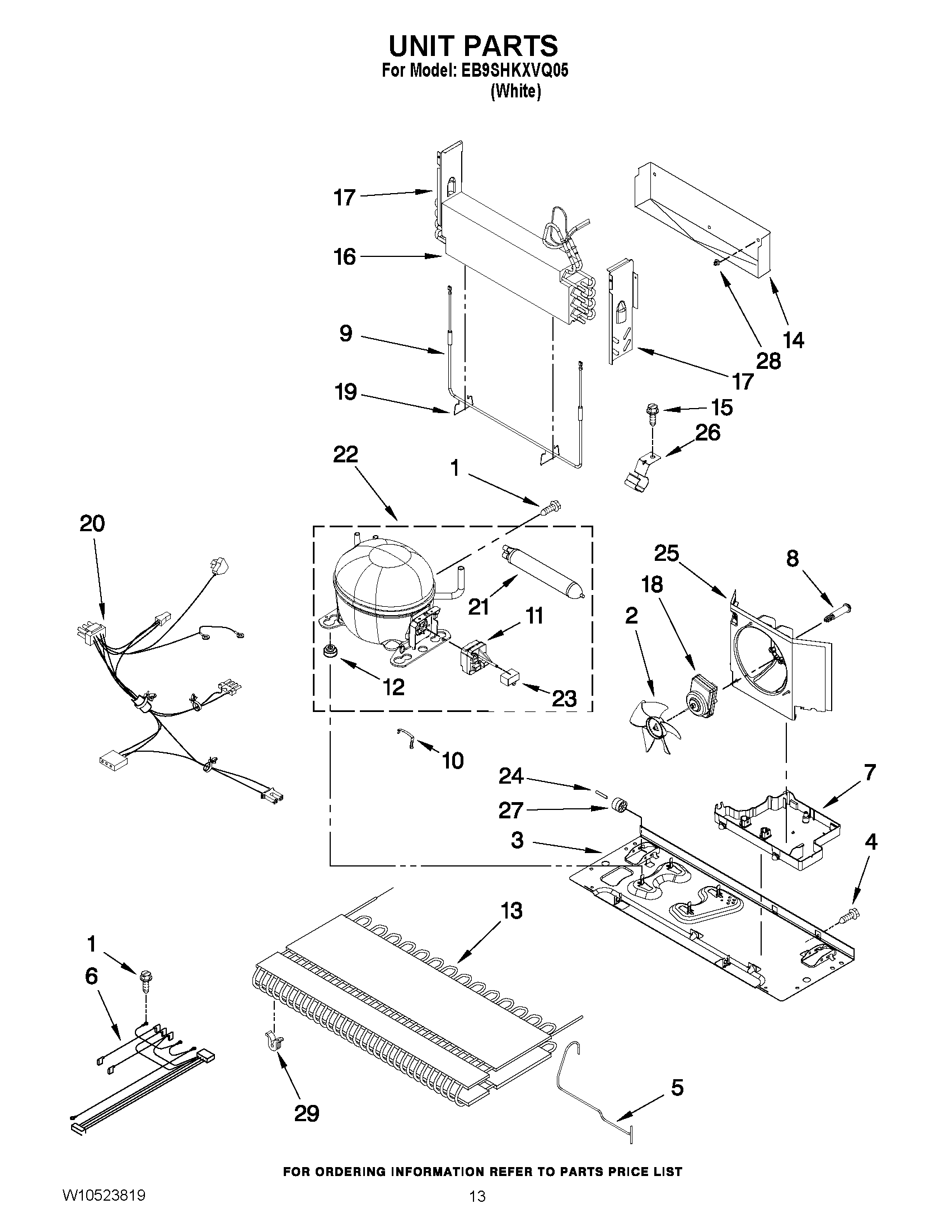

EB9SHKXVQ05 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10294014 Whirlpool Refrigerator Tube
6	W11260592 Whirlpool Refrigerator Wire Harness
7	WPW10655367 Whirlpool Refrigerator Drip Pan
8	W10829281 Whirlpool Refrigerator Screw
9	WP12729127 Whirlpool Refrigerator Heater
10	W11092534 Whirlpool Refrigerator Clip
11	WP2320150 Whirlpool Refrigerator Start Device
12	WPW10169124 Whirlpool Refrigerator Grommet
13	W10346423 Whirlpool Refrigerator Condenser
14	TRAY, DRIP
15	WP33001882 Whirlpool Screw
16	W10920993 Whirlpool Refrigerator Evaporator
17	Dam (Right Side)
17	Dam (Left Side)
18	W11613295 Whirlpool Condenser Motor
19	W11673433 Whirlpool Clip
20	WPW10234024 Whirlpool Refrigerator Wire Harness
21	WPW10143759 Whirlpool Dryer Filter
22	W10233960 Whirlpool Refrigerator Compressor
23	WPW10662129 Whirlpool Refrigerator Run Capacitor
24	67006434 Whirlpool Axle Pin
25	W11556315 Whirlpool Shroud
26	W10281329 Whirlpool Clamp
27	WP67005149 Whirlpool Roller
28	CLIP, EVAP (2)
29	WPW10137529 Whirlpool Refrigerator Grommet
