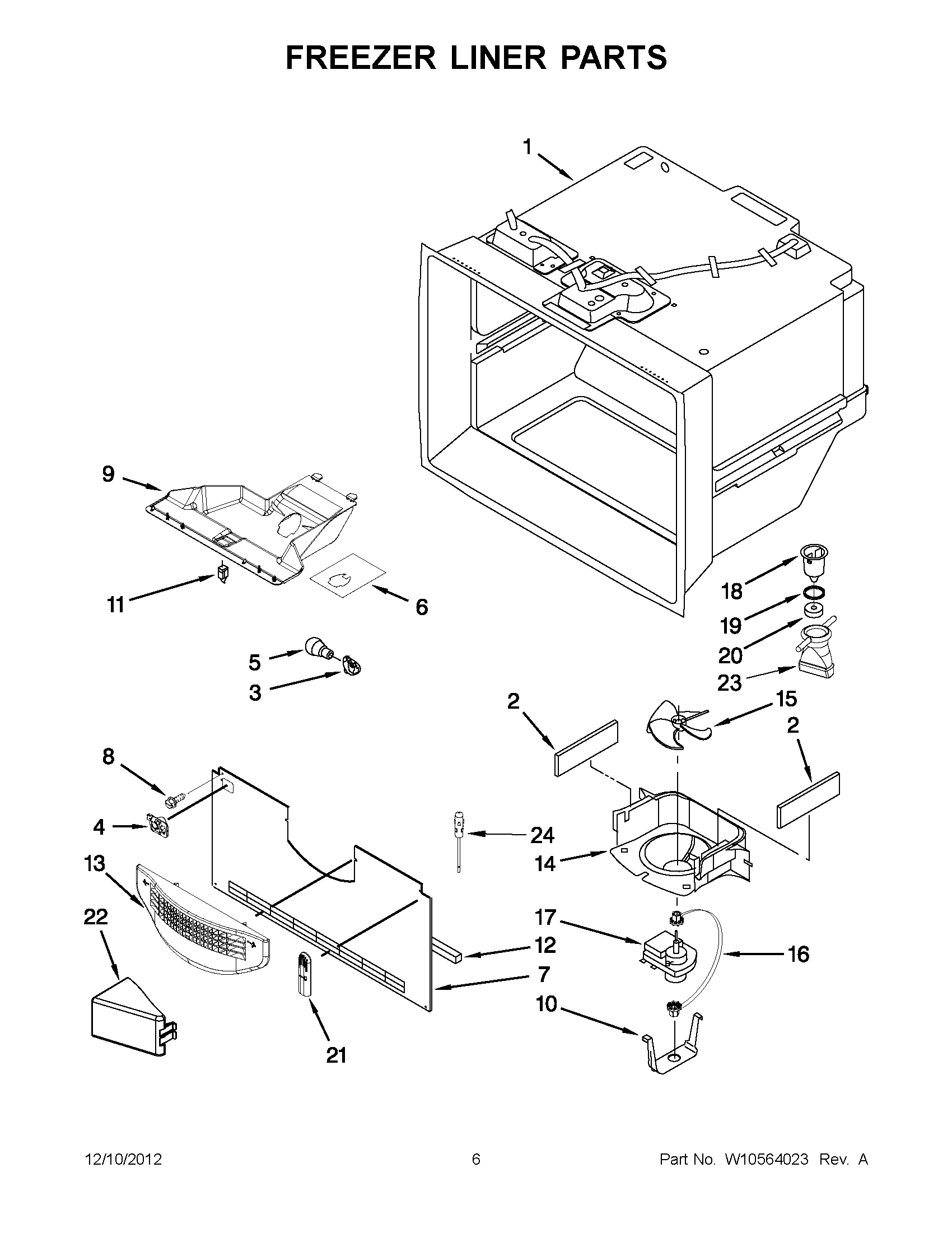

EB9SHKXVQ07 03 – FREEZER LINER PARTS

EB9SHKXVQ07 03 – FREEZER LINER PARTS

Written by

in

EB9SHKXVQ07 03 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11447232 Whirlpool Refrigerator Socket
4W11448709 Whirlpool Refrigerator Bracket
54396822 Whirlpool Refrigerator Light Bulb
6W11469652 Whirlpool Refrigerator Shield
7WPW10308414 Whirlpool Refrigerator Evaporator Cover
8WP489349 Whirlpool Refrigerator Screw
9WPW10277025 Whirlpool Refrigerator Housing
10CLIP, EVAPORATOR MOTOR
11W11396033 Whirlpool Refrigerator Rocker Switch
12A3189394 Whirlpool Refrigerator Gasket
13WPW10175909 Whirlpool Grille Assembly
14WPW10167023 Whirlpool Refrigerator Shroud
15WP2169142 Whirlpool Fan Blade
16W10121318 Whirlpool Refrigerator Grommet
17WPW10128551 Whirlpool Evaporator Fan Motor
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20WPB8381501 Whirlpool Refrigerator Door Gasket
21WP67003924 Whirlpool Refrigerator Cover
22W10157765 Whirlpool Refrigerator Deflector
23W10619951 Whirlpool Drain Tube with Grommet
2412002355 Whirlpool Refrigerator Thermistor Kit
