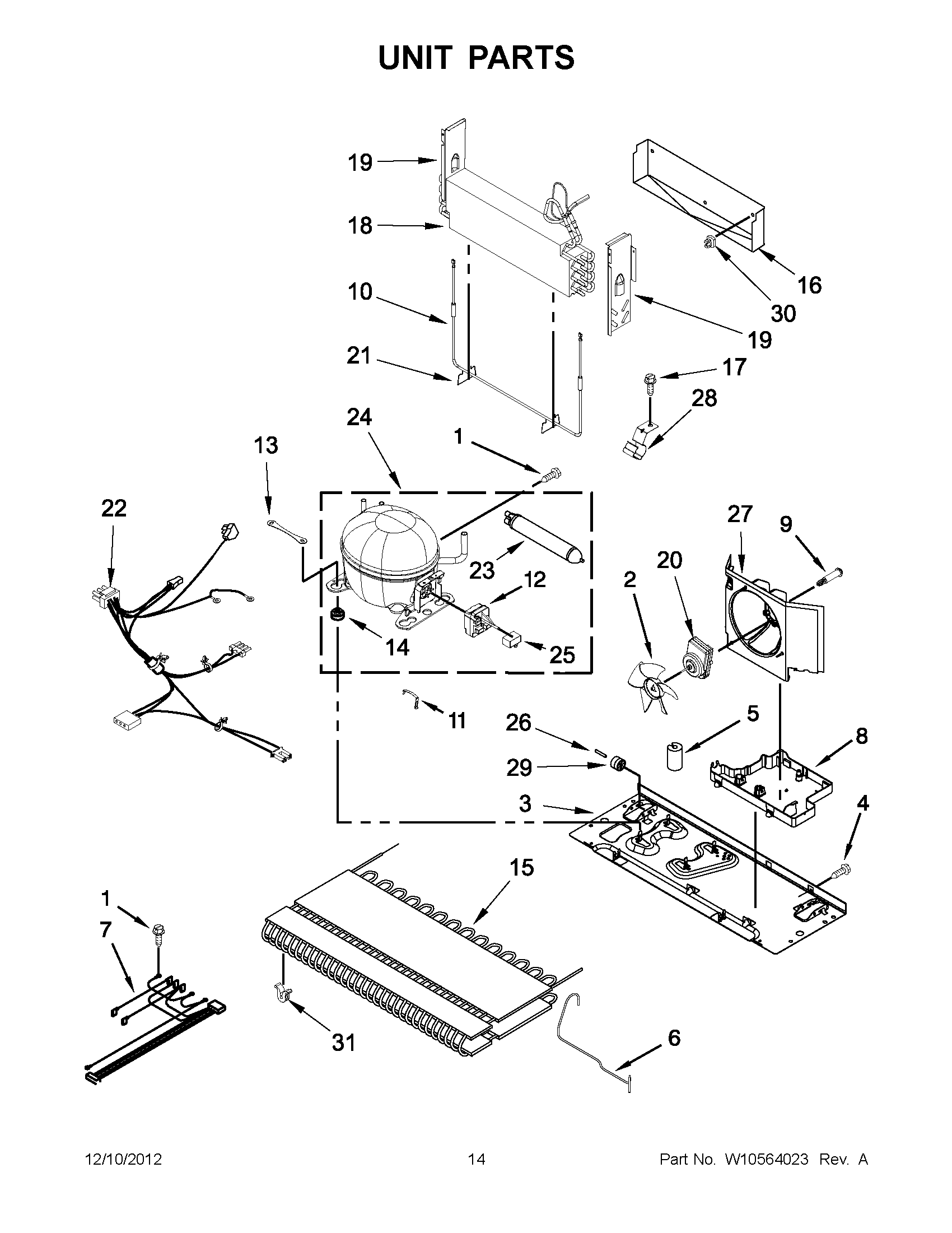

EB9SHKXVQ07 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480107 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	W10852725 Whirlpool Refrigerator Grommet
6	W10294014 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729127 Whirlpool Refrigerator Heater
11	W11661170 Whirlpool Clip
12	WPW10194431 Whirlpool Start Device
13	W10236396 Whirlpool Refrigerator Strap
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W10346423 Whirlpool Refrigerator Condenser
16	TRAY, DRIP
17	WP33001882 Whirlpool Screw
18	W10920993 Whirlpool Refrigerator Evaporator
19	Dam (Right Side)
19	Dam (Left Side)
20	W11613295 Whirlpool Condenser Motor
21	W11673433 Whirlpool Clip
22	WPW10234024 Whirlpool Refrigerator Wire Harness
23	WPW10143759 Whirlpool Dryer Filter
24	W10233960 Whirlpool Refrigerator Compressor
25	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
26	67006434 Whirlpool Axle Pin
27	W11556315 Whirlpool Shroud
28	W10281329 Whirlpool Clamp
29	WP67005149 Whirlpool Roller
30	CLIP, EVAP (2)
31	WPW10137529 Whirlpool Refrigerator Grommet
