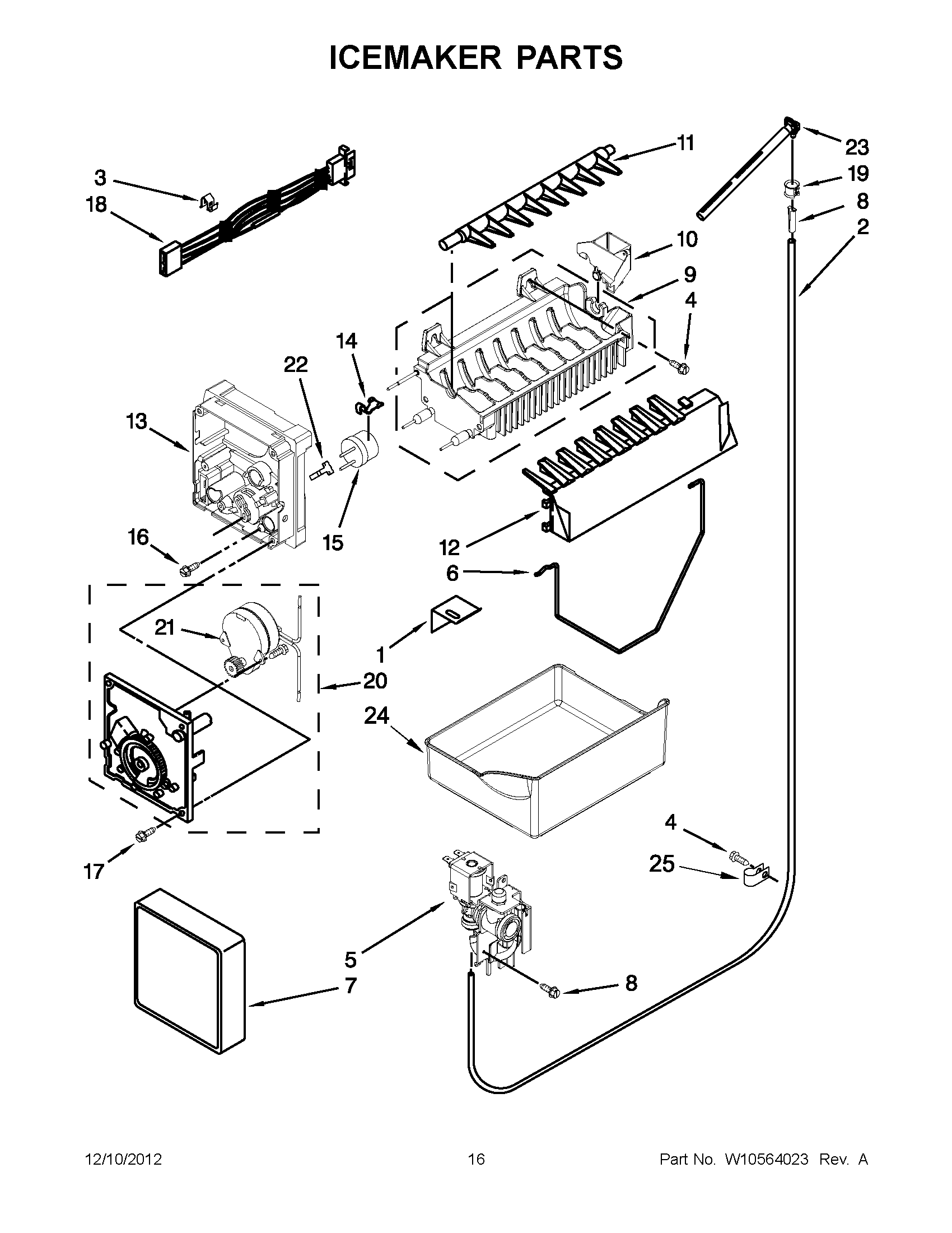

EB9SHKXVQ07 08 – ICEMAKER PARTS

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
2	WPW10449192 Whirlpool Refrigerator Water Tube
3	Clamp
5	VALVE-INLT
6	W11559683 Whirlpool Ice Level Arm
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPA3223101 Whirlpool Refrigerator Insert PL
9	WPW10300025 Whirlpool Refrigerator Ice Mold
10	W10410073 Whirlpool Fill Cup Assembly
11	W10318914 Whirlpool Refrigerator Ejector Arm
12	WPW10122563 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP628379 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	W10001280 Whirlpool Refrigerator Screw
17	WP489464 Whirlpool Refrigerator Screw
18	WPW10458985 Whirlpool Wire Harness
19	WPM0114003 Whirlpool Microwave Speed Clip Clamp
20	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
21	CABINET (NOT A SERVICEABLE PART)
23	W11176463 Whirlpool Refrigerator Water Tube
24	WP67001255 Whirlpool Ice Bucket
25	W11456069 Whirlpool Refrigerator Clamp
100	W10884390 Whirlpool Refrigerator Ice Maker Assembly
