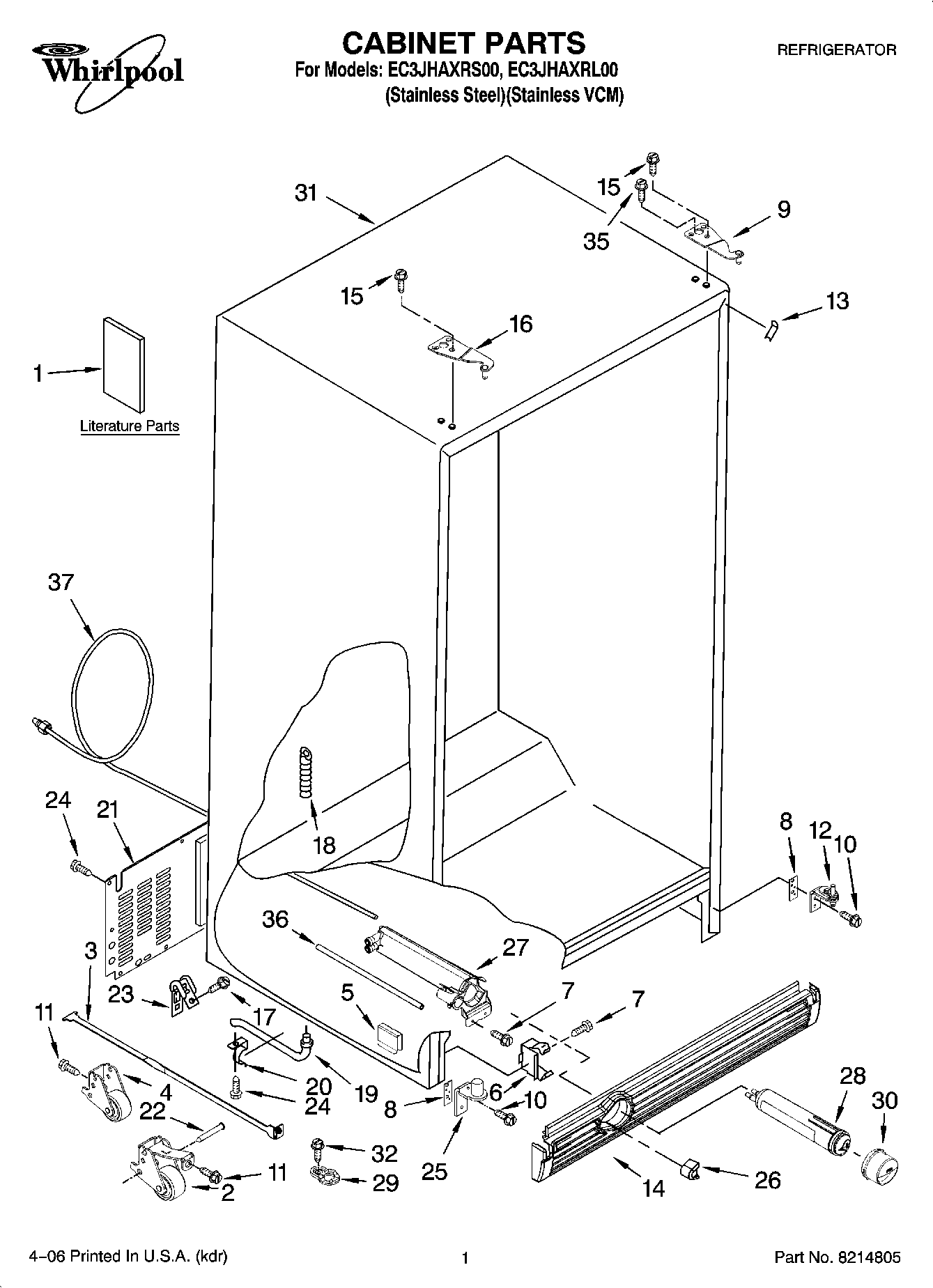

EC3JHAXRL00 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Installation Instructions
1	Service & Wiring Sheet
1	Use & Care Guide
1	Modular Icemaker Service Sheet
1	Energy Guide
2	ASSEMBLY, FRONT ROLLER (RIGHT HAND)
2	ASSEMBLY, FRONT ROLLER (LEFT HAND)
3	Strap, Roller
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008B Whirlpool Refrigerator Butt Hinge
10	WP489497 Whirlpool Screw
11	W10151272 Whirlpool Refrigerator Screw
12	Hinge Assembly, Bottom-RC
13	Filler, Wrapper (Black)
14	Grille (Black)
15	3400108 Whirlpool Refrigerator Screw
16	2307007B Whirlpool Refrigerator Butt Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Extension Tube
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	PIN, ROLLER
23	549193 Whirlpool Refrigerator Power Clamp
25	Hinge Assembly, Bottom-FC
26	WP2260503B Whirlpool Refrigerator Button
27	WPW10121140 Whirlpool Refrigerator Housing
28	FILTER 3-SINGLE TEAL
29	WP2223751 Whirlpool Refrigerator Door Cam
30	WP2260518B Whirlpool Water Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP489483 Whirlpool Screw
35	W10853301 Whirlpool Refrigerator Screw
36	WPW10350006 Whirlpool Refrigerator Water Tube
37	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
