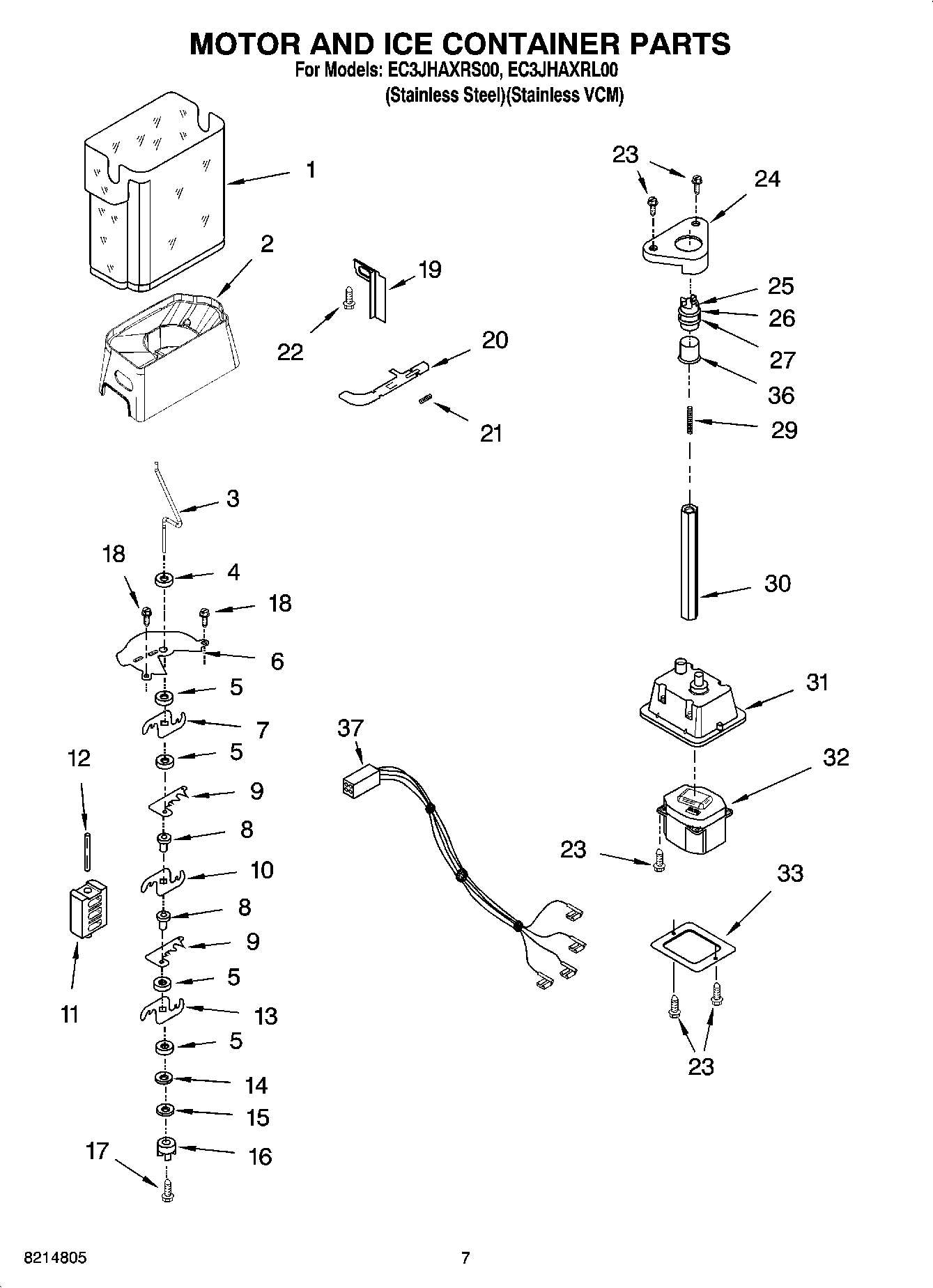

EC3JHAXRL00 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	Ice Bin
2	Crusher Bin
3	W10852517 Whirlpool Refrigerator Ice Auger
4	Washer
5	WP1119007 Whirlpool Refrigerator Spacer
6	Cover, Crusher
7	W10278731 Whirlpool Refrigerator Blade
8	WP1119005 Whirlpool Refrigerator Spacer
9	Blade, Fixed
10	W10278732 Whirlpool Refrigerator Blade
11	Block, Blade
12	489229 Whirlpool Refrigerator Roll Pin
13	W10278733 Whirlpool Refrigerator Blade
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	WP2315403 Whirlpool Refrigerator Bin Button
20	Latch, Bin
21	WP2198608 Whirlpool Refrigerator Spring
22	2198671 Whirlpool Refrigerator Screw
23	WP8281163 Whirlpool Refrigerator Screw
24	Holder
25	WP2220458 Whirlpool Drive Cam
26	WP2198628 Whirlpool Door Seal
27	WP2212370 Whirlpool Washer
29	W10852956 Whirlpool Refrigerator Spring
30	WP2188917 Whirlpool Drive Shaft
31	Enclosure, Motor
32	WP2252130 Whirlpool Refrigerator Motor
33	Cover
36	WP2212365 Whirlpool Refrigerator Sleeve
37	W10683539 Whirlpool Refrigerator Dispensing Harness
100	Ice Container Assembly
