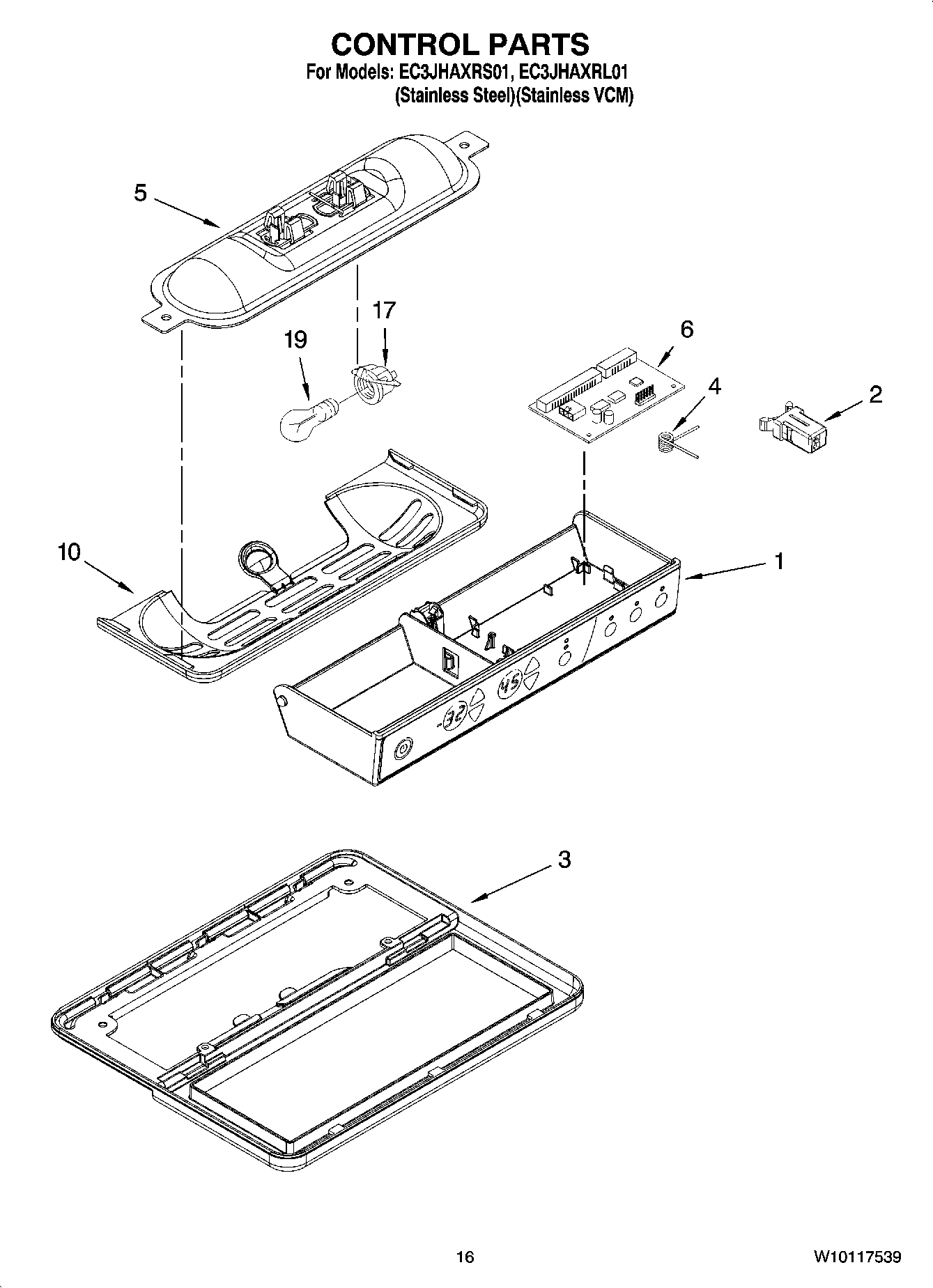

EC3JHAXRL01 10 – CONTROL PARTS

Written by

Products

Position	Product
1	Control Box (Includes 6)
2	WP2223877 Whirlpool Door Hook
3	Trim, Control Box
4	Spring, Torsion
5	2223680 Whirlpool Refrigerator Shield
6	Control Board Asm
10	WP2223506 Whirlpool Refrigerator Light Lens
17	WPW10191429 Whirlpool Refrigerator Socket
19	WPA3073101 Whirlpool Light Bulb
