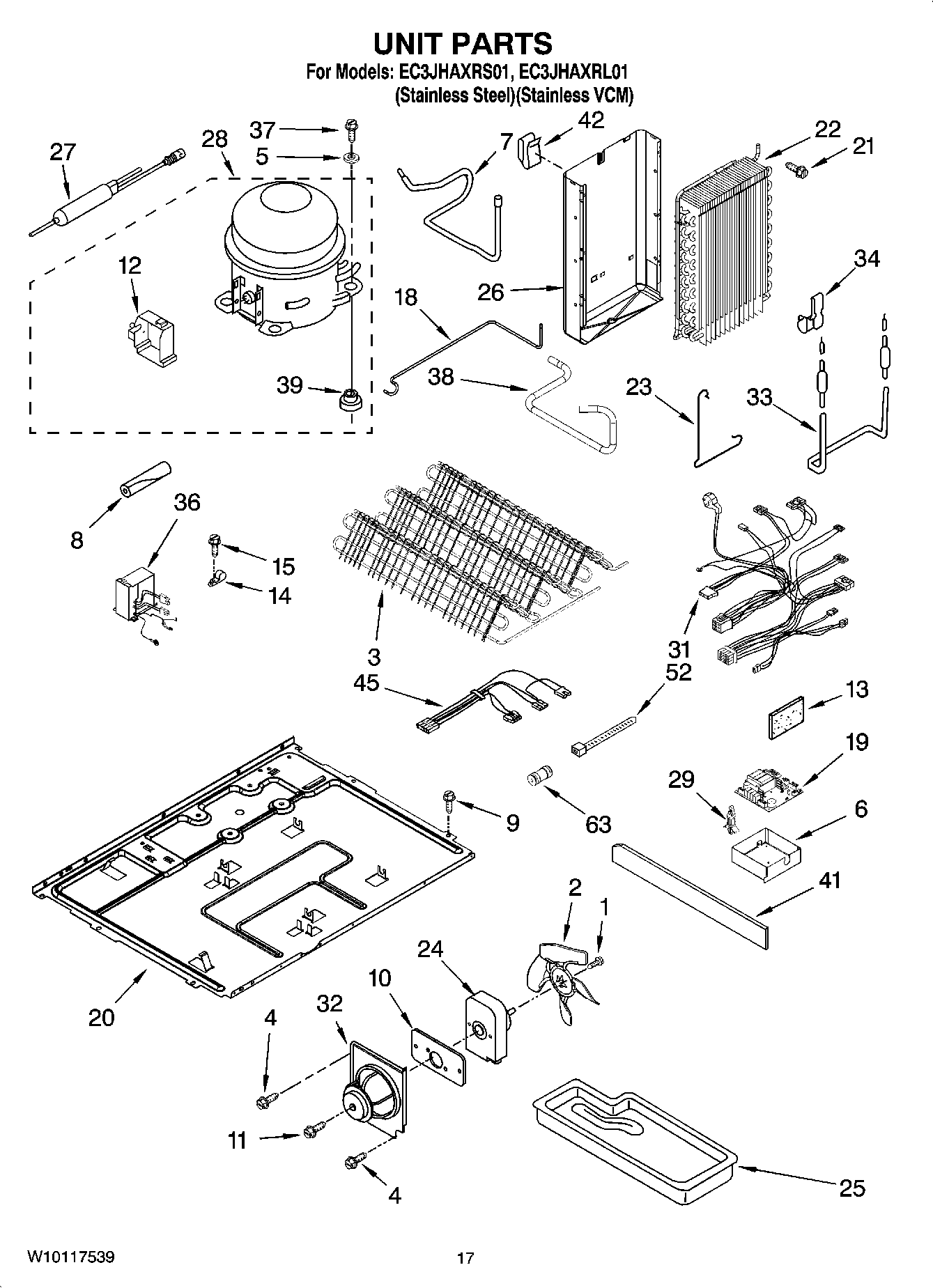

EC3JHAXRL01 11 – UNIT PARTS

EC3JHAXRL01 11 – UNIT PARTS

Written by

in

EC3JHAXRL01 11 – UNIT PARTS

Products

PositionProduct
1WP488234 Whirlpool Air Conditioner Screw
2W11458267 Whirlpool Refrigerator Fan Blade
3W10193018 Whirlpool Refrigerator Condenser
48281197 Whirlpool Refrigerator Screw
5Washer (4)
6Housing, Control Board
7W10528579 Whirlpool Refrigerator Tube
8SLEEVE
93400524 Whirlpool Refrigerator Screw
10Plate
11WP8281196 Whirlpool Screw
122215676 Whirlpool Refrigerator Terminal Cover
13W11553819 Whirlpool Refrigerator Insulation
14W11456069 Whirlpool Refrigerator Clamp
15WPW10141625 Whirlpool Refrigerator Screw Assembly
18Tube, Condenser to Heat Loop
19W10219463 Whirlpool Control Board + Core
20Baseplate
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25Tray, Evaporator
26SHIELD, HEAT
27W10843121 Whirlpool Refrigerator Tube
288201675 Whirlpool Refrigerator Compressor
292223800 Whirlpool Refrigerator Spacer
31Harness, Main Control
32BRACKET, FAN MOUNTING
33WP2210737 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
36W10629033 Whirlpool Refrigerator Inverter Control Box
37Screw (4)
38Tube, Discharge
39W11661108 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
412223394 Whirlpool Extension
42Clip, Heat Shield
452187737 Whirlpool Refrigerator Wire Harness
52WPW10339879 Whirlpool Wire Tie
63VALVE, ACCESS (5/8“)
63Following Parts Not Illustrated and Optional Parts Not Included
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63WP4373559 Whirlpool Fitting
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63REFRIGERANT CHARGE 6.00 oz. (R-134A)
