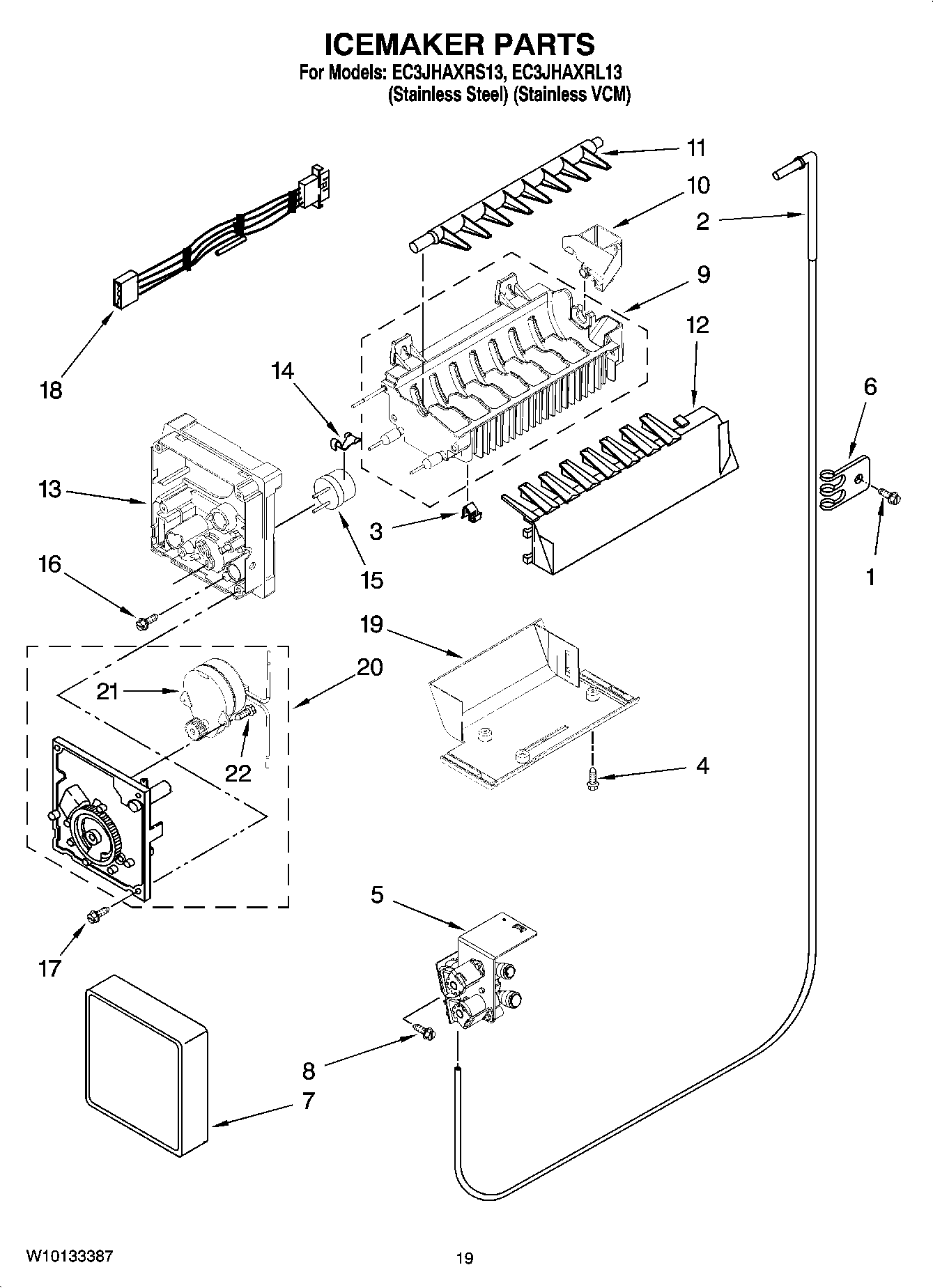

EC3JHAXRL13 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI25472A9
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Important: The spray paint is not to be used where the pai
	WPL ARI25471A2
	WP503695 Whirlpool Refrigerator Sealer
	833938 Whirlpool Refrigerator Terminal
	350942 Whirlpool Spray Paint
2	WP2256096 Whirlpool Refrigerator Fitting
3	WP628379 Whirlpool Refrigerator Clip
4	WP489478 Whirlpool Refrigerator Screw
5	W10247725 Whirlpool Water Inlet Valve
6	WP488366 Whirlpool Refrigerator Clamp
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10	WP628356 Whirlpool Refrigerator Fill Cup
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	W10297244 Whirlpool Refrigerator Arm Strip
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	WP681249 Whirlpool Screw Assembly
18	WP2187467 Whirlpool Refrigerator Wire Harness
19	BRACKET, ICEMAKER MOUNTING
20	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	489136 Whirlpool Refrigerator Screw
100	2198597 Whirlpool Refrigerator Ice Maker
