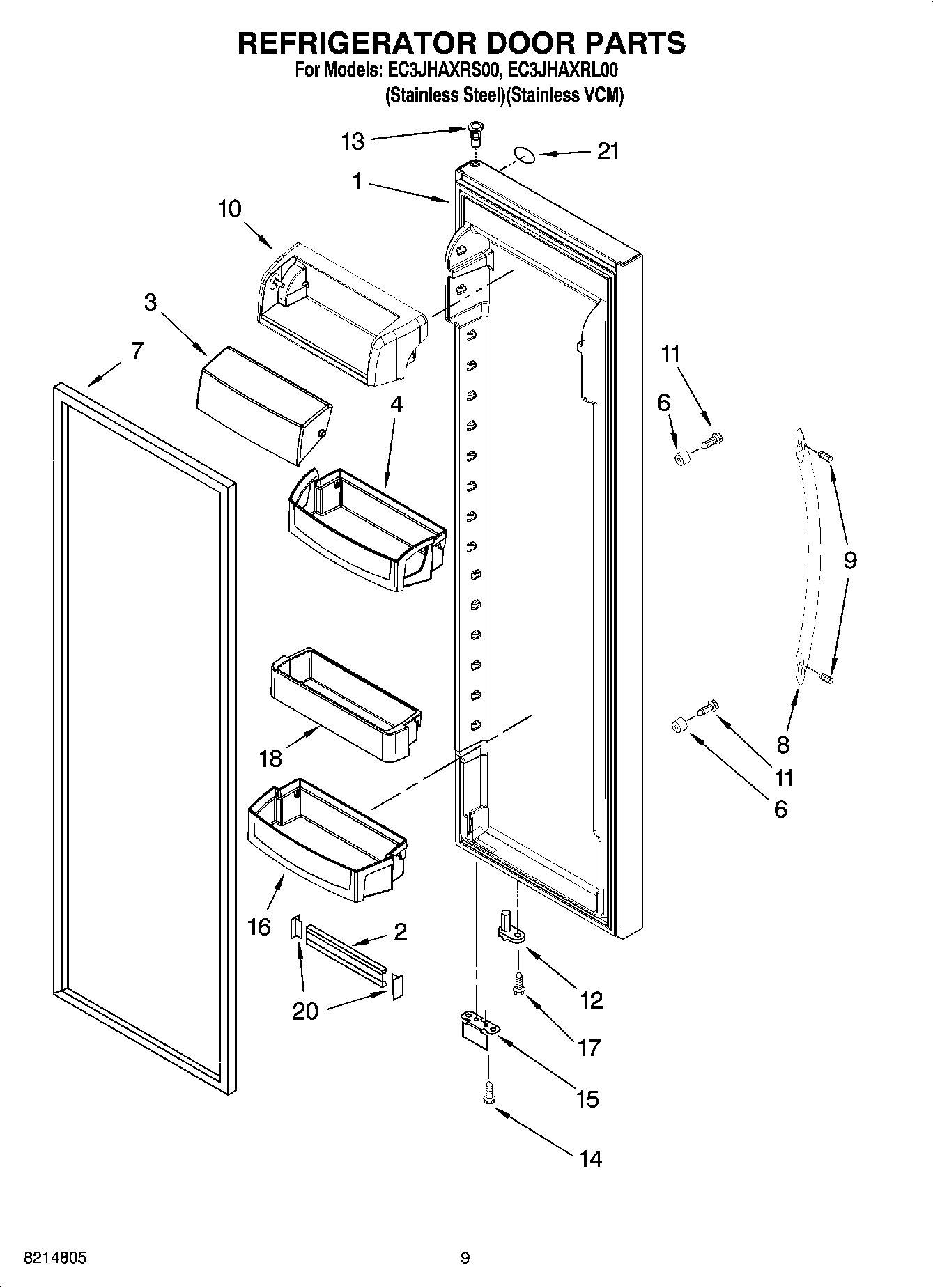

EC3JHAXRS00 06 – REFRIGERATOR DOOR PARTS

EC3JHAXRS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

EC3JHAXRS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Stainless Steel)
1Refrigerator Door (Includes 7) (Stainless VCM)
2Trim, Shelf
3Dairy Door
4Door Bin (2)
6WPW10170540 Whirlpool Screw
7GASKET, DOOR (BLACK)
8Handle (Includes 13) (Stainless)
9SCREW
10WP2223879 Whirlpool Refrigerator Compressor Door
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP2182181 Whirlpool Refrigerator Thimble
14WP489483 Whirlpool Screw
152306940B Whirlpool Refrigerator Bracket
16Door Bin (3)
17WP3400012 Whirlpool Refrigerator Screw
18WP2224173 Whirlpool Refrigerator Cantilever Bin
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21WP2213265 Whirlpool Refrigerator Nameplate
