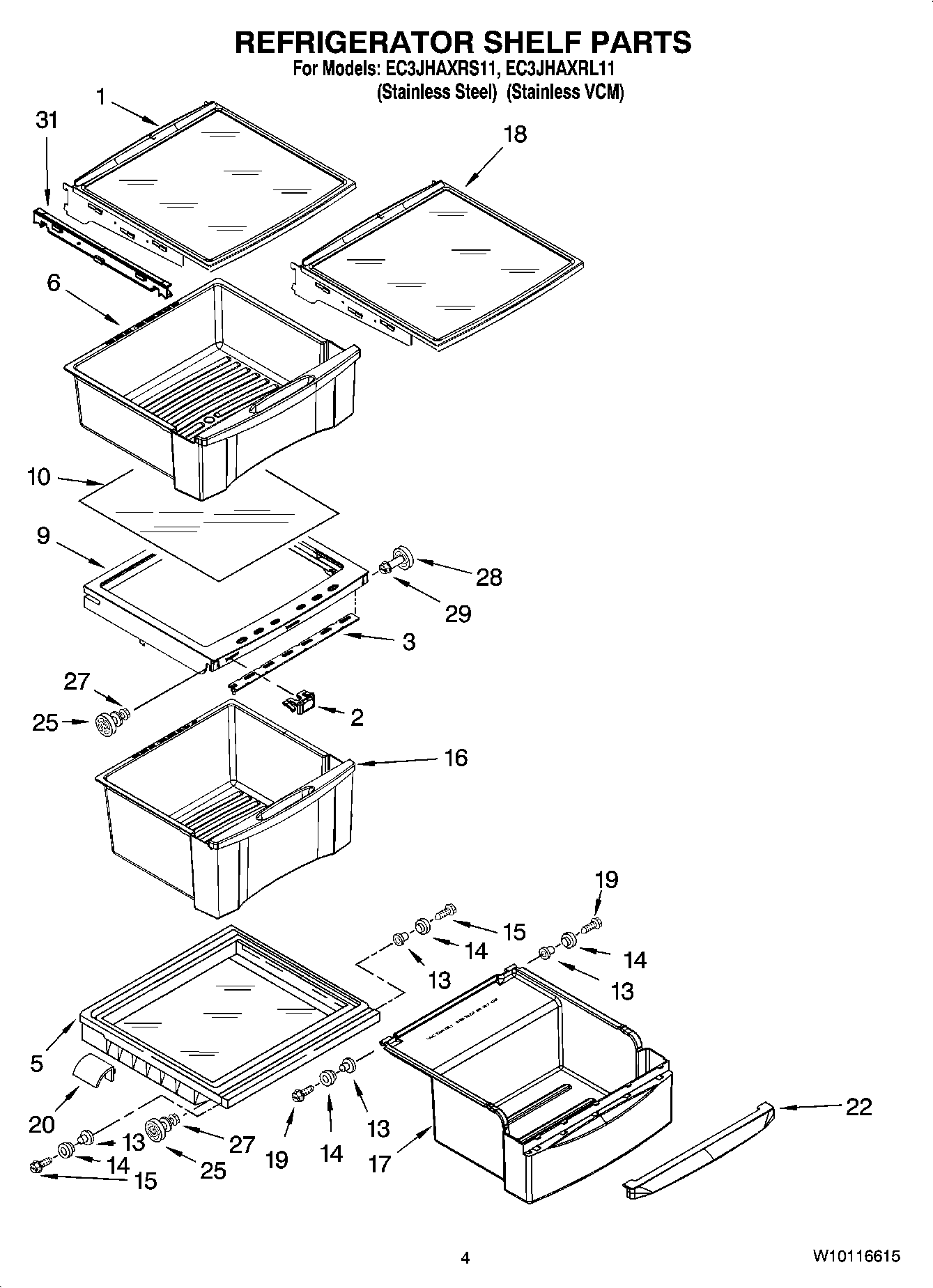

EC3JHAXRS11 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	WP2223288 Whirlpool Refrigerator Cantilever Shelf
2	Knob, Humidity Control
3	2223308 Whirlpool Refrigerator Slide
5	WPW10270150 Whirlpool Crisper Drawer Cover
6	Snack Bin Asm
9	Cover, Crisper
10	WP2223591 Whirlpool Refrigerator Glass Shelf
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	WPW10233488 Whirlpool Refrigerator Crisper Pan
17	ASSEMBLY, MEAT PAN
18	W10235943 Whirlpool Refrigerator CANT Shelf
19	WP489261 Whirlpool Refrigerator Screw
20	2223487 Whirlpool Refrigerator Deflector
22	HANDLE, MEAT PAN
25	W11223328 Whirlpool Refrigerator Shelf Stud
27	WP3-24004-109 Whirlpool Refrigerator Screw
28	WP2196483 Whirlpool Refrigerator Shelf Stud
29	WP3400806 Whirlpool Screw
31	WP2223320 Whirlpool Slide Track Pan
