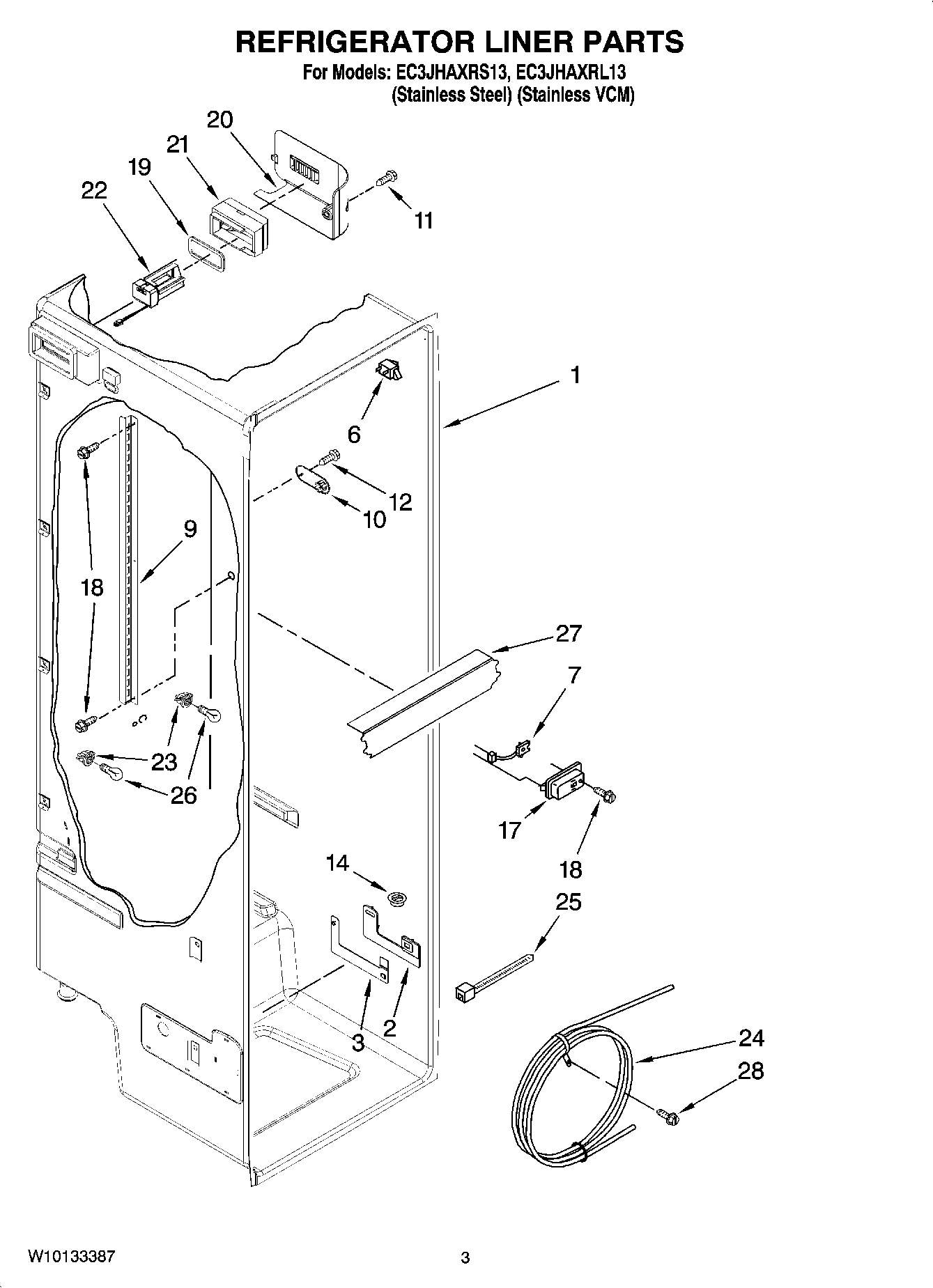

EC3JHAXRS13 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
6	W11384469 Whirlpool Door Switch
7	WP2188820 Whirlpool Refrigerator Thermistor
9	Shelf Ladder
10	Housing, Door Control
12	W10142289 Whirlpool Air Conditioner Screw
14	2171846 Whirlpool Refrigerator Release Valve
17	WP2317844 Whirlpool Refrigerator Cover
18	WP489478 Whirlpool Refrigerator Screw
19	Gasket, Air Baffle
20	COVER, AIR DIFFUSER
21	ASSEMBLY, AIR DIFFUSER
22	WP2220377 Whirlpool Refrigerator Air Baffle
23	4387478 Whirlpool Refrigerator Light Socket
24	RESERVOIR
25	WPW10339879 Whirlpool Wire Tie
26	RANGE ONLY 40W 120V APPL BULB
27	LENS, LIGHT
28	Screw (2)
