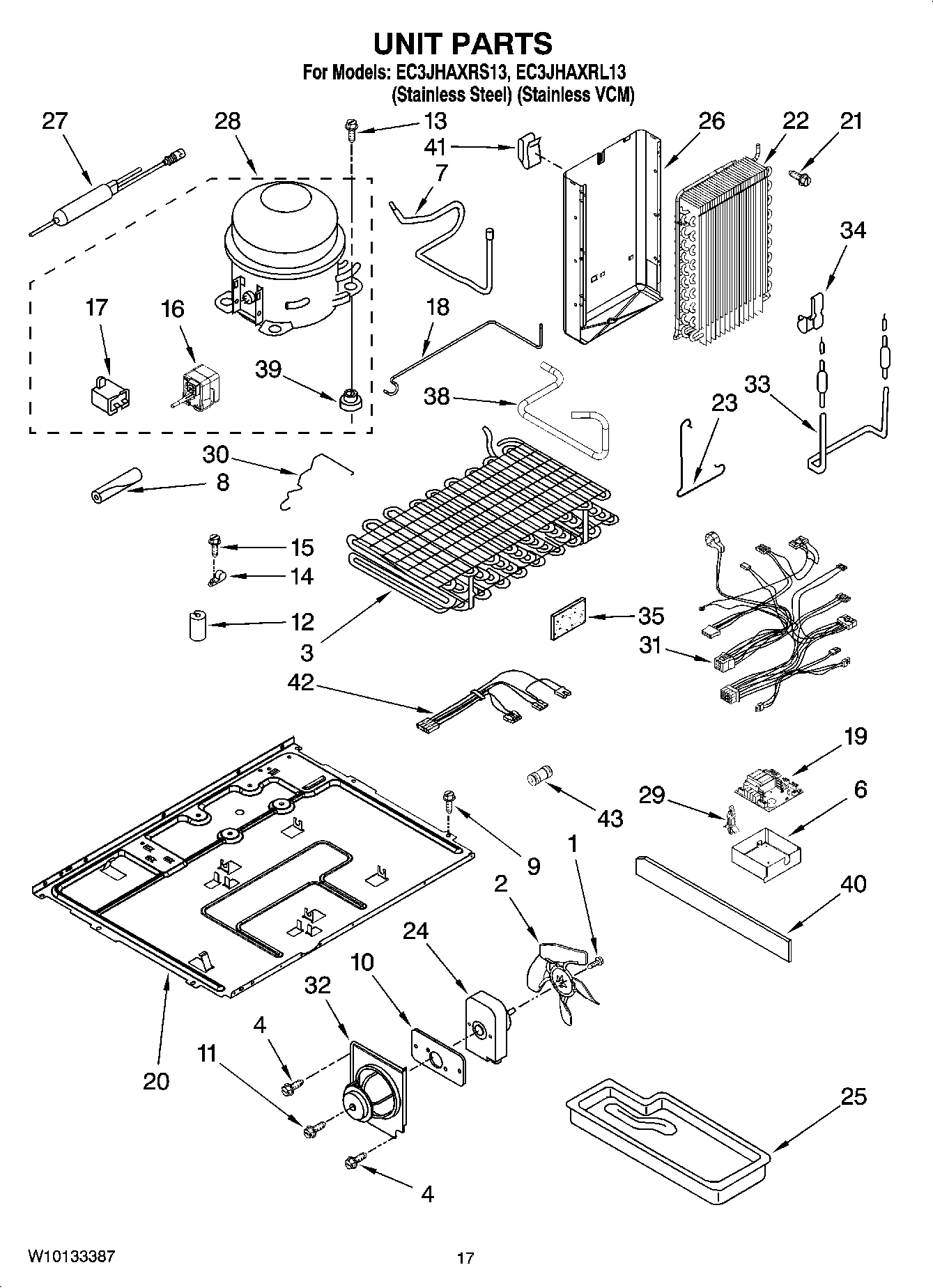

EC3JHAXRS13 11 – UNIT PARTS

Products

Position	Product
1	WP488234 Whirlpool Air Conditioner Screw
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W10193018 Whirlpool Refrigerator Condenser
4	8281197 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	3400524 Whirlpool Refrigerator Screw
10	Plate
11	WP8281196 Whirlpool Screw
12	W10852725 Whirlpool Refrigerator Grommet
14	W11456069 Whirlpool Refrigerator Clamp
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
16	WPW10189190 Whirlpool Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Tube, Condenser to Heat Loop
19	Electronic Control
20	Baseplate
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	Tray, Evaporator
26	SHIELD, HEAT
27	WPW10143759 Whirlpool Dryer Filter
28	W10139462 Whirlpool Refrigerator Compressor
29	2223800 Whirlpool Refrigerator Spacer
30	Clip, Retaining
31	Harness, Main Control
32	BRACKET, FAN MOUNTING
33	WP2210737 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
35	W11553819 Whirlpool Refrigerator Insulation
38	Tube, Discharge
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	2223394 Whirlpool Extension
41	Clip, Heat Shield
42	2187737 Whirlpool Refrigerator Wire Harness
43	VALVE, ACCESS (5/8“)
43	Following Parts Not Illustrated and Optional Parts Not Included
43	876764 Whirlpool Refrigerator Primary Valve
43	978027 Whirlpool Refrigerator Primary Valve
43	978030 Whirlpool Refrigerator Valve
43	WP978025 Whirlpool Refrigerator Valve
43	VALVE, ACCESS (1/2“)
43	978026 Whirlpool Refrigerator Primary Valve
43	WP4373559 Whirlpool Fitting
43	REFRIGERANT CHARGE 6.00 oz. (R-134A)
