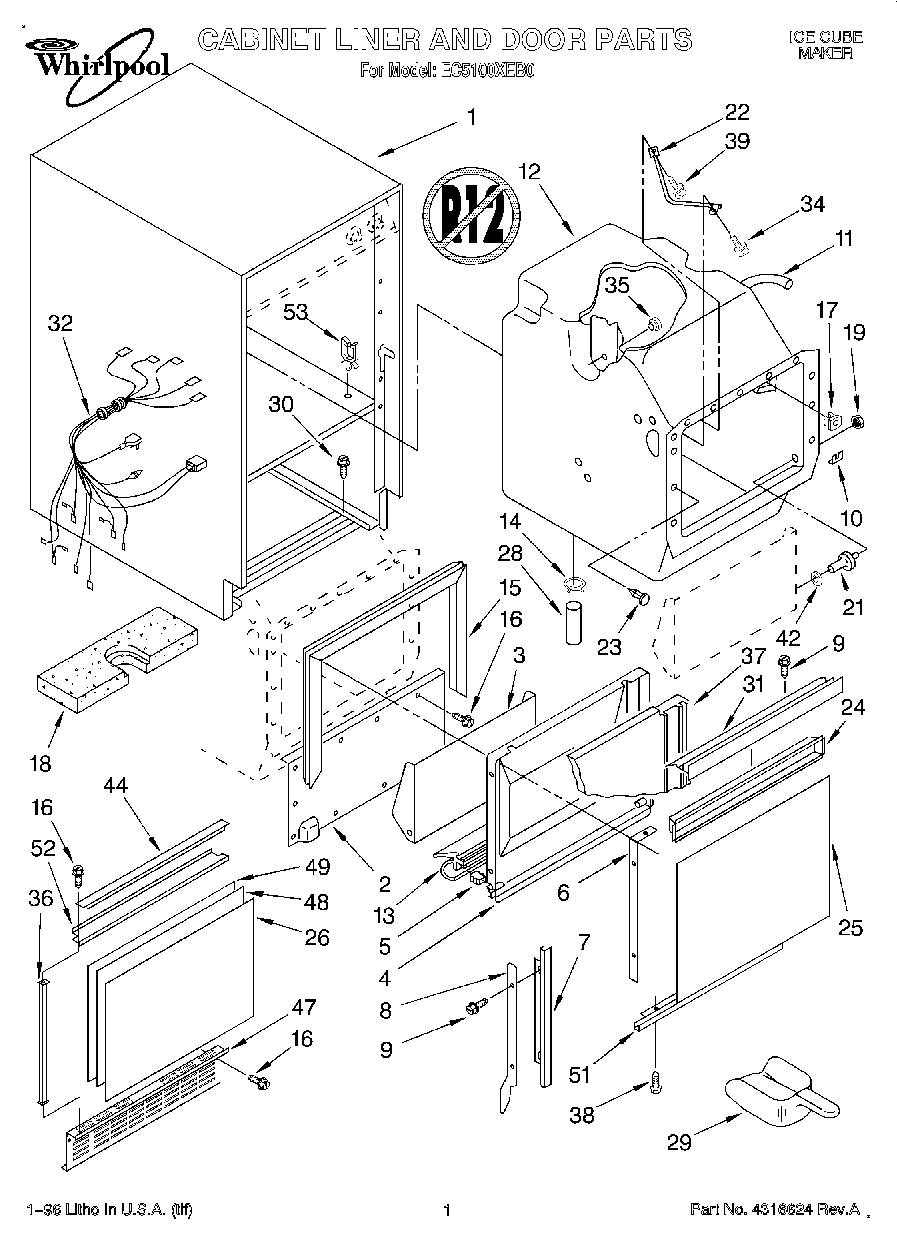

EC5100XEB0 01 – CABINET LINER AND DOOR
Written by
in
EC5100XEB0 01 – CABINET LINER AND DOOR
Products
Position
Product
1
Shell
2
WPL 2175619
3
Door, Inner
4
Liner, Door
5
Plug, Hinge
6
Strip, Tapping (2)
7
Trim, Door (2)
8
Rail, Door (Left Side)
8
Rail, Door (Right Side)
9
Screw, No.8-32 1/2 (6)
10
Washer, Clip
11
WPL 759213
12
Liner (Includes No.s 5, 6, 7, 11, 14)
13
WPL 2172898
14
Clamp, Hose (2)
15
Gasket, Liner
16
WP488729 Whirlpool Refrigerator Door Screw
17
Grommet, Mtg (2)
18
Insul/Bottom Foam
19
Nut, Hex 1/4 (2)
21
Stud, Inner Door Mtg. (2)
22
Thermostat, Well Bin
23
Clip, Linner (12)
24
Pocket, Handle
25
Panel, Door (White & Black)
26
Panel, Grille Cabinet Front
28
Hose, 5/8 x 4“ (Connector To Air Gap)
29
W11420408 Whirlpool Refrigerator Ice Scoop
30
Screw, No.10-32 x 3/8
31
Handle, Recessed
32
WPL 2174781
34
Thumbscrew 10-32 x 5/8
35
Nut, Well (3)
36
Trim, Sides (2)
37
Insulation, Door
38
Screw, No.8-32 x 1/2
39
Screw, 10 x 1/2
42
Washer (2)
44
Trim, Top & Bottom
47
Grille, Panel
48
Filler, Grille Panel
49
Panel, Inner Grille
51
Trim, Door (Lower)
52
WPL 2175604
53
Retainer, Wire (2)
←
