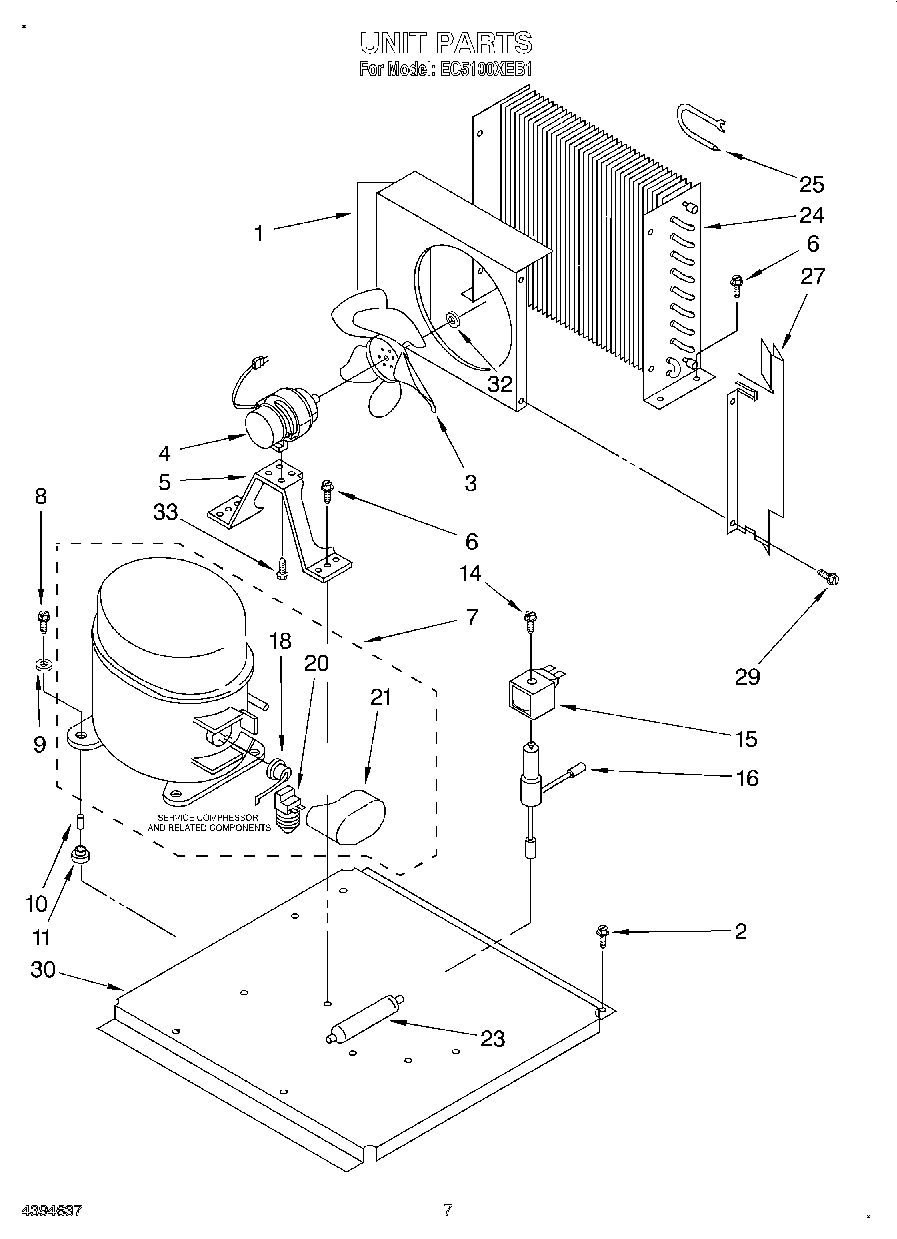

EC5100XEB1 05 – UNIT, LITERATURE

Products

Position	Product
	Use & Care Guide
	Instructions, Installation
	WPL LIT2180831
1	WPL 2180948
2	Screw, No.10-32 x 3/8
3	978655 Whirlpool Refrigerator Fan Blade
4	Motor, Fan (Includes No. 23)
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	W10309988 Whirlpool Refrigerator Compressor
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
14	SCREW
15	Coil, Solenoid
16	WP759113 Whirlpool Refrigerator Gas Valve
18	WPL 2183404
20	WPL 2183410
21	WP2162358 Whirlpool Refrigerator Terminal Cover
23	W10843121 Whirlpool Refrigerator Tube
24	W10139458 Whirlpool Refrigerator Condenser
25	WPL 2180807
27	Deflector, Air
29	WP90767 Whirlpool Screw
30	WPL 2180938
32	Nut, Hex 1/4-20
33	212643 Whirlpool Refrigerator Permagum Sealer
33	Screw, 8-36 x 1/2 (4)
33	WP505587 Whirlpool Refrigerator Sealer
33	978027 Whirlpool Refrigerator Primary Valve
33	978030 Whirlpool Refrigerator Valve
33	WP978025 Whirlpool Refrigerator Valve
33	VALVE, ACCESS (1/2``)
33	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
33	WP503695 Whirlpool Refrigerator Sealer
33	876370 Whirlpool Refrigerator Insulation
33	978026 Whirlpool Refrigerator Primary Valve
33	VALVE, ACCESS (5/8``)
