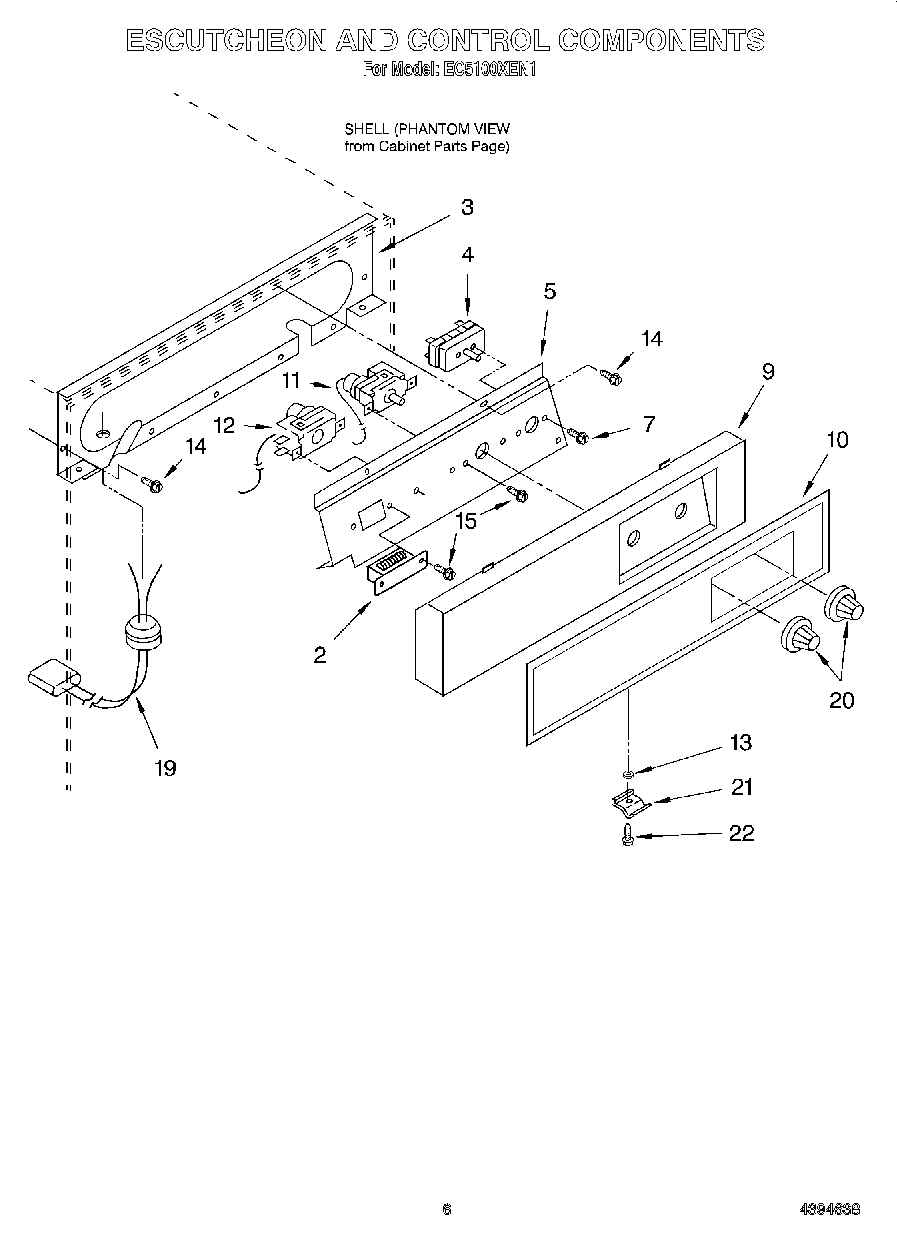

EC5100XEN1 04 – ESCUTCHEON AND CONTROL

Products

PositionProduct
2WPL 2165483
3Escutcheon, Panel
4Switch, Service
5WPL 2172846
7WP486579 Whirlpool Air Conditioner Screw
9Escutcheon
10Decal, Escutcheon
11Thermostat, Ice-Control
12Thermostat, Ice-Bin
13Washer, Latch
14WP488729 Whirlpool Refrigerator Door Screw
15Screw, 8-32 x 3/8 (2)
19Harness, Wiring (Cutter Grid)
20Knob
21Latch
22Screw, 8-32 x 1/2
