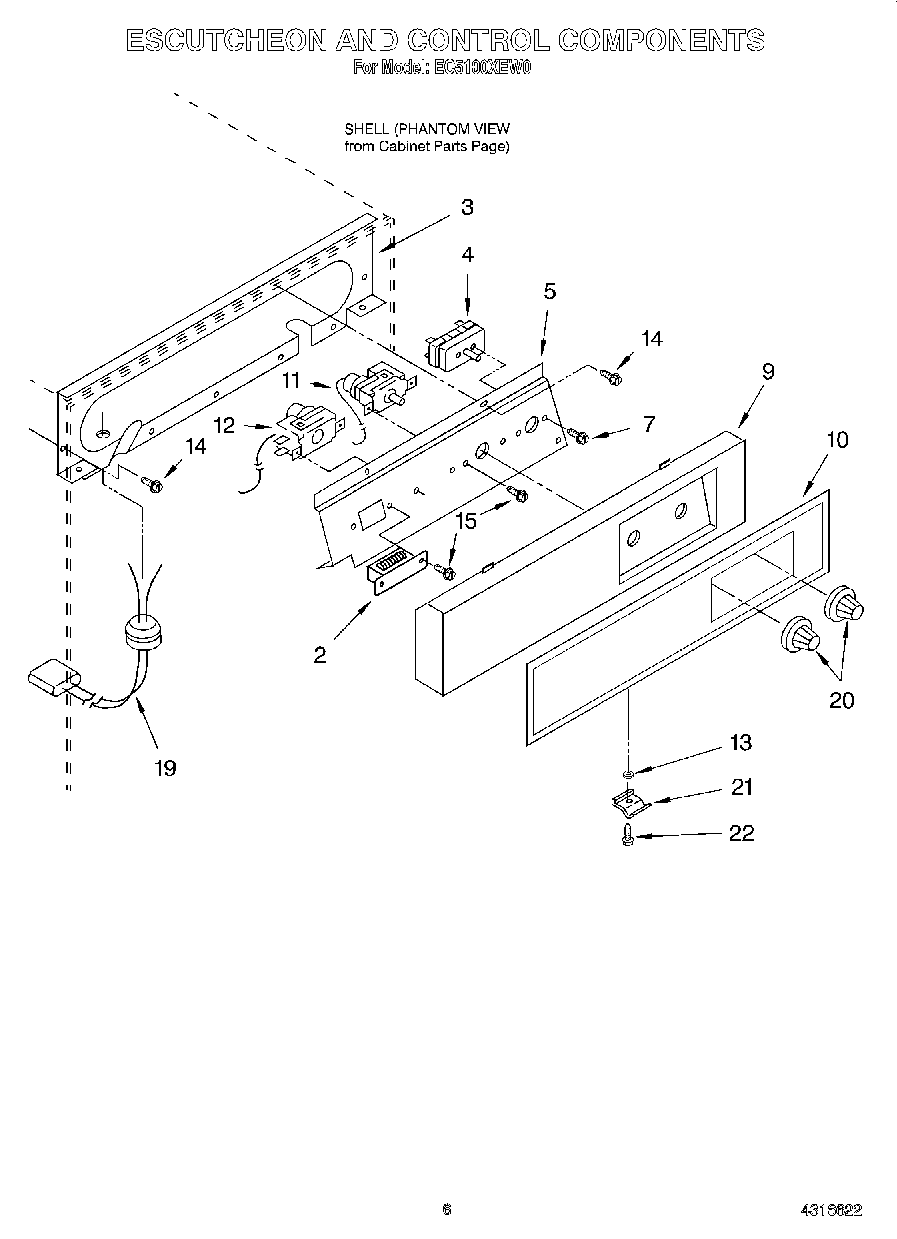

EC5100XEW0 04 – ESCUTCHEON AND CONTROL COMPONENTS

Written by

Products

Position	Product
2	WPL 2165483
3	Escutcheon, Panel
4	Switch, Service
5	WPL 2172846
7	WP486579 Whirlpool Air Conditioner Screw
9	Escutcheon
10	Decal, Escutcheon
11	Thermostat, Ice-Control
12	Thermostat, Ice-Bin
13	Washer, Latch
14	WP488729 Whirlpool Refrigerator Door Screw
15	Screw, 8-32 x 3/8 (2)
19	Harness, Wiring (Cutter Grid)
20	Knob
21	Latch
22	Screw, 8-32 x 1/2
