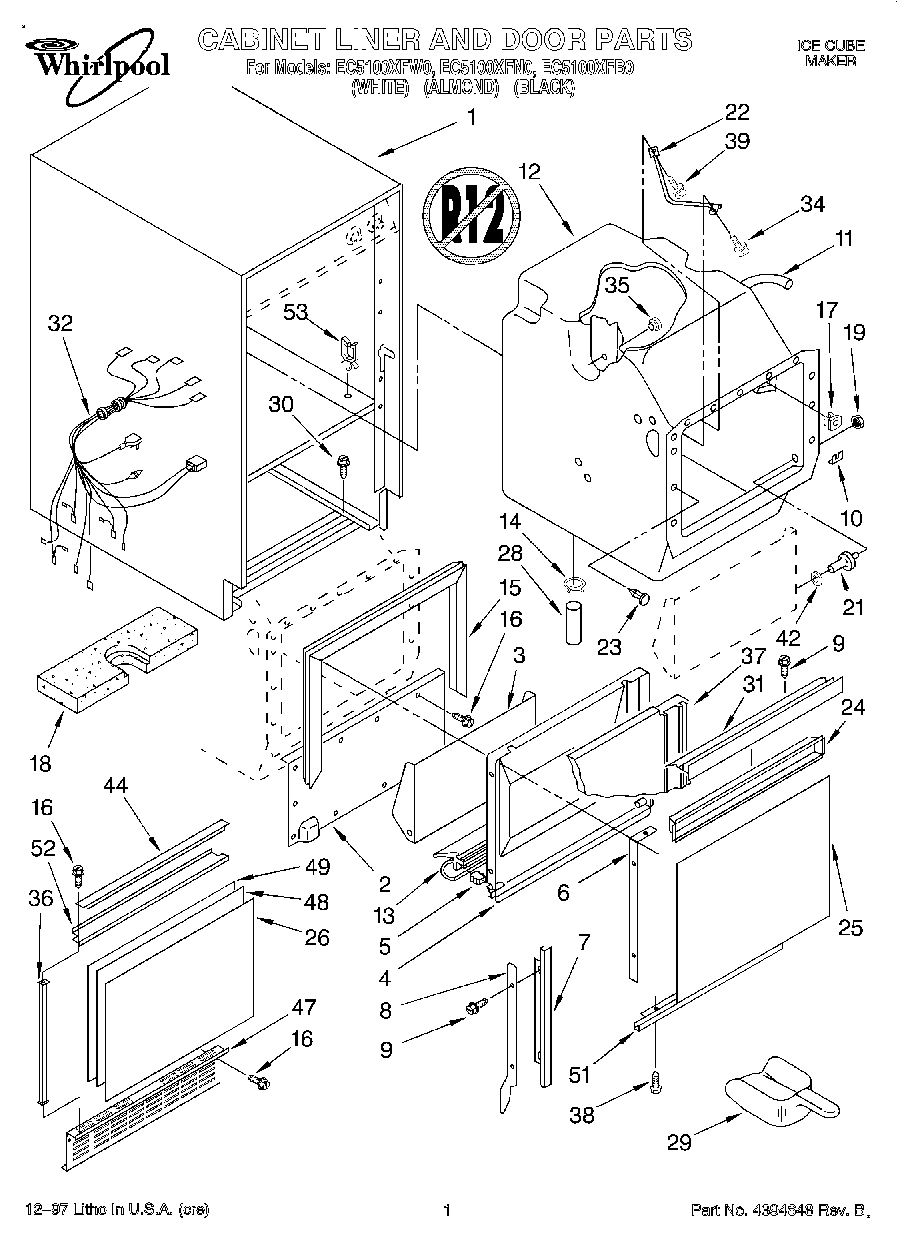

EC5100XFN0 01 – CABINET LINER AND DOOR

Products

Position	Product
1	WPL 2175698
1	Shell
1	WPL 2175636
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2) (Black)
7	Trim, Door (2) (White)
7	Trim, Door (2) (Almond)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pocket, Handle (White)
24	Pocket, Handle (BLack)
24	Pocket, Handle (Almond)
25	Panel, Door (White & Black)
25	WPL 758745
26	Panel, Grille Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Handle, Recessed
31	Handle, Recessed
31	Handle, Recessed
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Side (2) (Almond)
36	Trim, Side (2) (White)
36	Trim, Side (2) (Black)
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top And Bottom (Black)
44	Trim, Top And Bottom (Almond)
44	Trim, Top And Bottom (White)
47	Grill, Front
47	Grille, Panel
47	Grill, Front
48	Filler, Grille Panel
49	Panel, Inner Grille
51	WPL 2181109
51	WPL 2181110
51	WPL 2181111
52	WPL 2175604
53	WPL 489482
