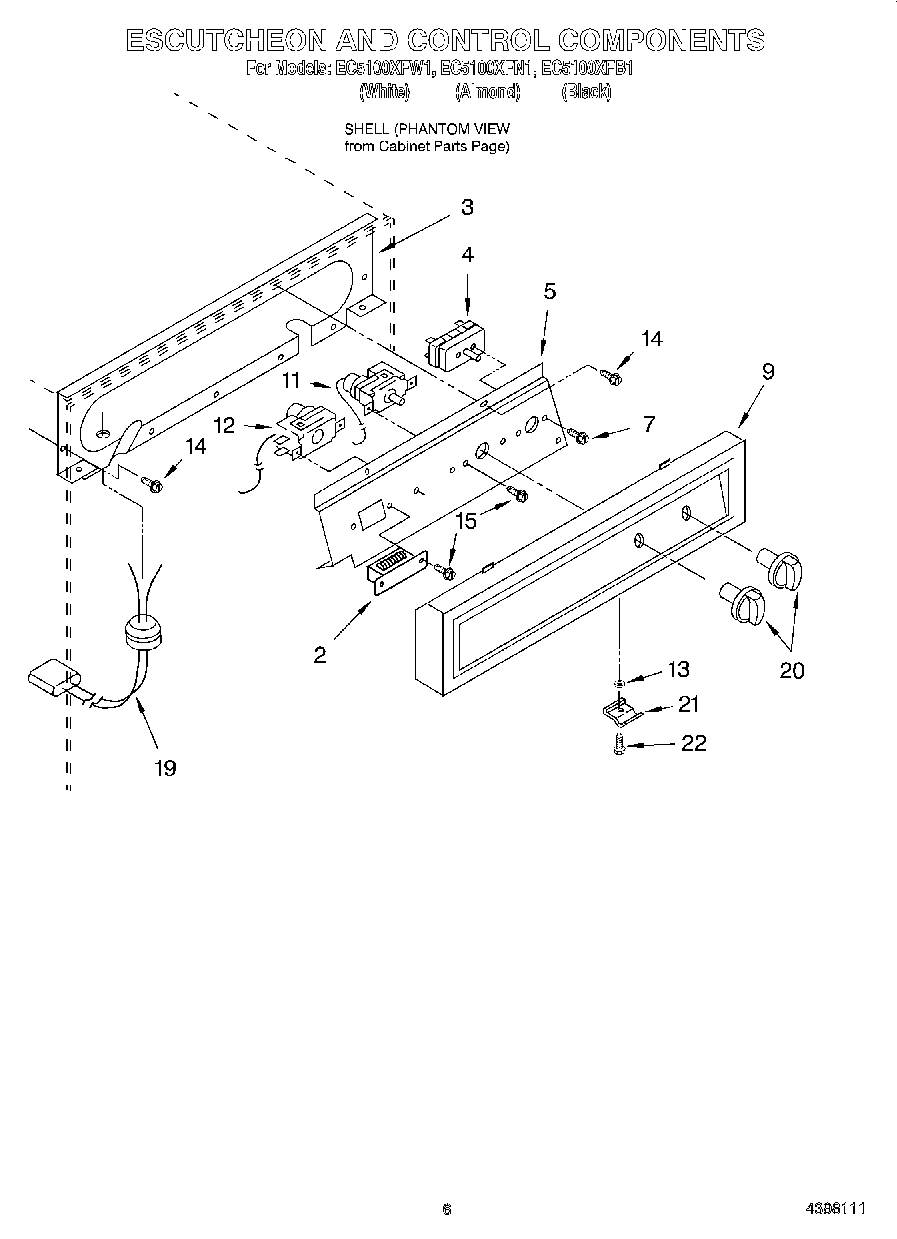

EC5100XFW1 04 – ESCUTCHEON AND CONTROL COMPONENTS

Products

PositionProduct
2WPL 2165483
3Escutcheon, Panel
4WPL 2181045
5WPL 2172846
7WP486579 Whirlpool Air Conditioner Screw
9Escutcheon (Almond)
9Escutcheon (Black)
9Escutcheon (White)
11Thermostat, Ice-Control
12Thermostat, Ice-Bin
13Washer, Latch
14WP488729 Whirlpool Refrigerator Door Screw
15Screw, 8-32 x 3/8 (2)
19Harness, Wiring (Cutter Grid)
20Knob (Black)
20Knob (White)
20Knob (Almond)
21Latch
21Latch, Door
21Latch
22Screw, 8-32 x 1/2
