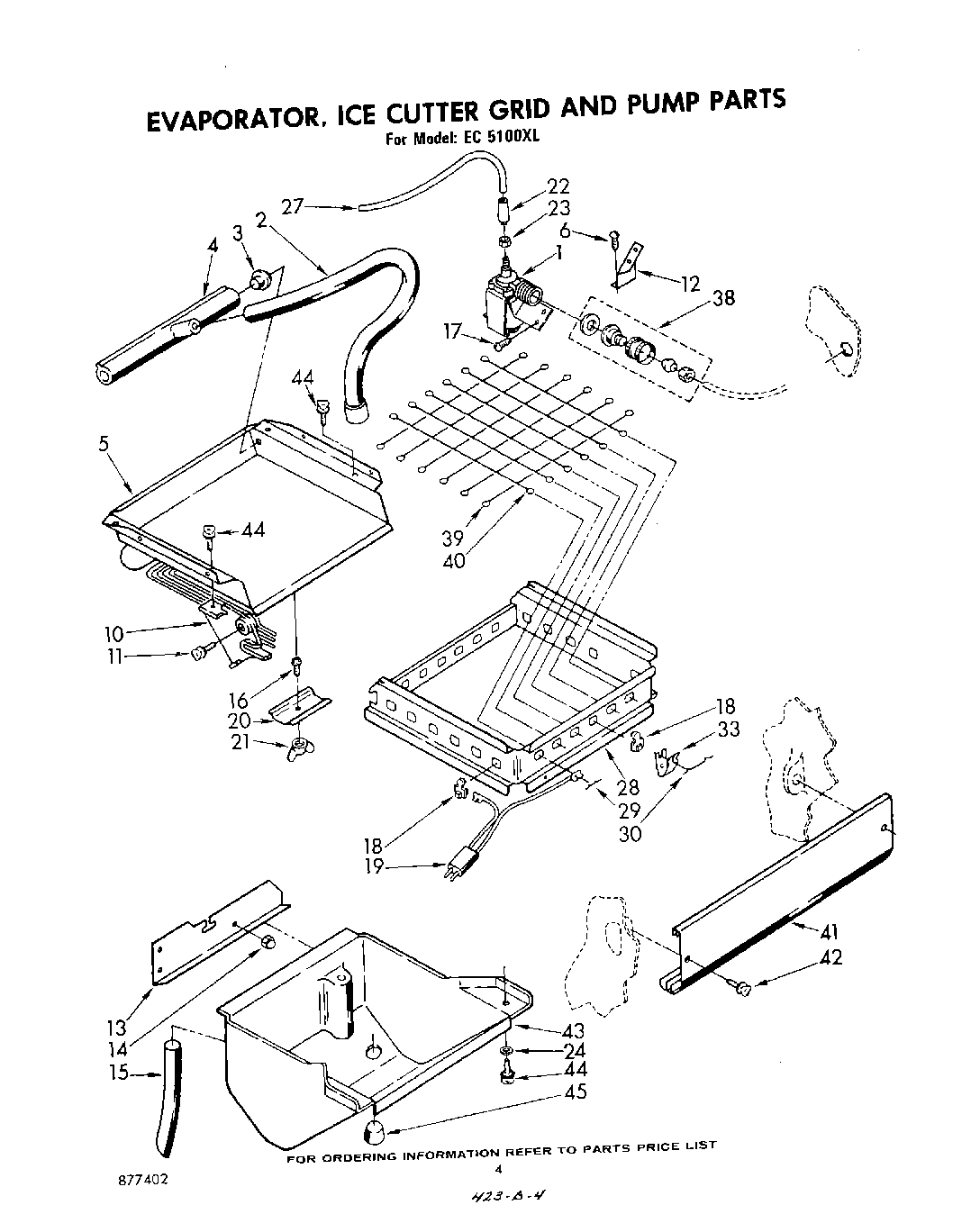

EC5100XL 03 – EVAPORATOR, ICE CUTTER GRID AND PUMP

Products

Position	Product
1	Valve, Water
2	Hose, Dispenser
3	Plug (2)
4	Dispenser, Water
5	Evaporator
6	WP90767 Whirlpool Screw
10	Bracket, Grid (2)
11	Screw, Thumb 10-32 x 1“
12	Bracket, Water Valve
13	Shelf, Water Pan
14	Nut (3)
15	Hose, 1/2 I.D. x 12“ (Bin To Pump)
16	Screw, 10-32 x 1/2
17	Screw, 1/4-20 x 1/2
18	Insulator, Grid Wires (38)
19	Harness, Wiring (Cutter Grid)
20	Clamp
21	Nut, Wing
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
24	Washer, Latch
27	W10823511 Whirlpool Refrigerator Water Tube
28	Frame, Grid (Not A Service Item)
29	Pin, Grid Wire (17)
30	Pin, Grid Wires (4)
33	Clip, Grid Wires (38)
38	WPL 533238
39	Wire, Cutter (Includes 9 Wires)
40	Wire, Cutter (Includes 10 Wires)
41	Panel, Grid
42	Thumbscrew 10-32 x 5/8
43	Pan, Water
44	Screw, 10 x 1/2
45	Plug, Pan
