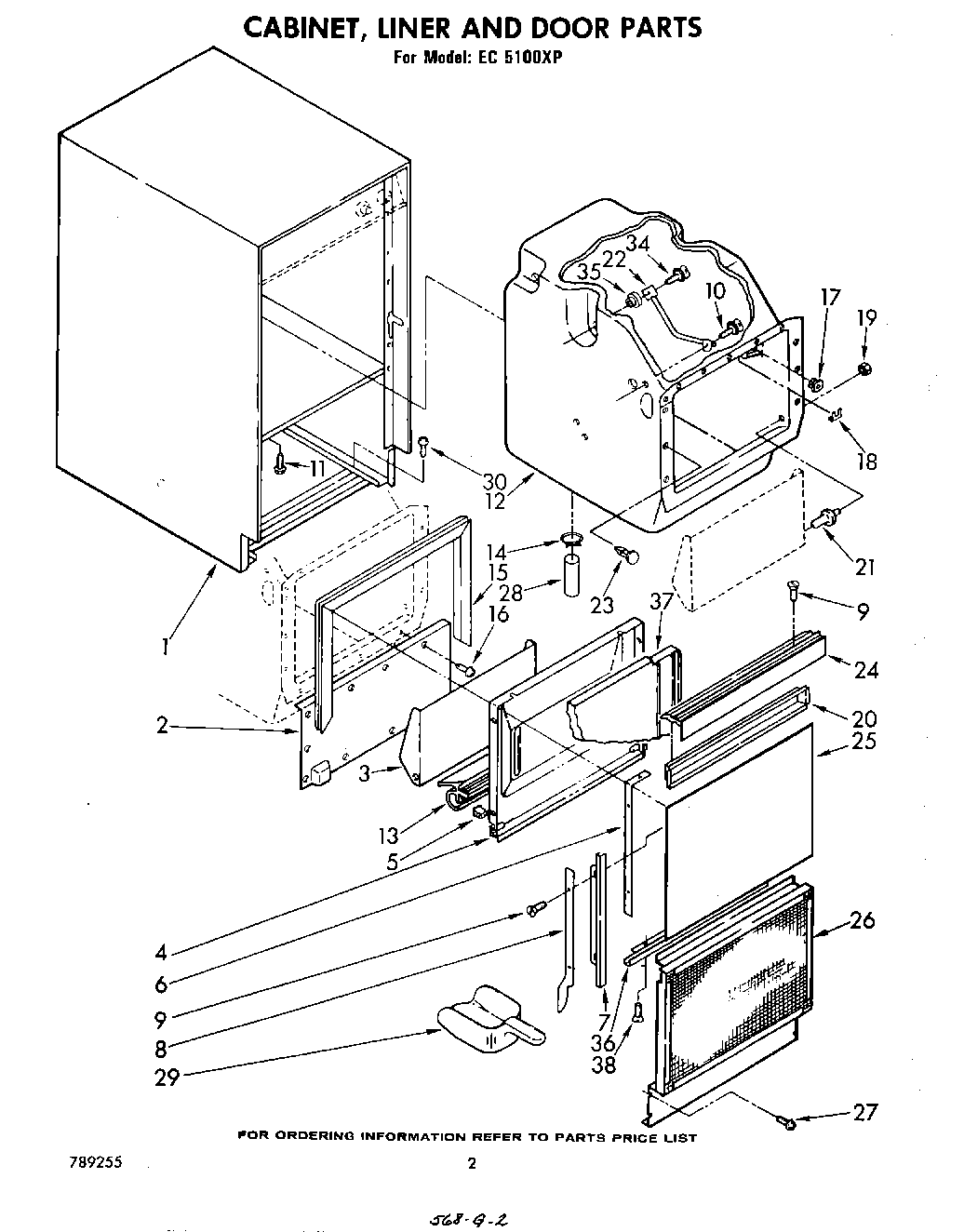

EC5100XP 02 – CABINET, LINER AND DOOR , LIT/OPTIONAL

Products

Position	Product
	350956 Whirlpool Spray Assembly
	Instructions, Installation
	Instructions, Owner`s
	350942 Whirlpool Spray Paint
	WPL LIT758459
	List, Parts
	Leveler (Thinner) (2oz.)
1	Cabinet
2	Support, Cabinet Front
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Thumbscrew 10-32 x 5/8
11	Screw, 8-32 x 3/8 (2)
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	Gasket, Door
14	Clamp, Hose (2)
15	Gasket
16	WP965173 Whirlpool Dishwasher Screw
17	Grommet, Mtg (2)
18	Washer, Clip
19	Nut, Hex 1/4 (2)
20	Pocket, Handle
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Handle, Door
25	Panel, Door (White & Black)
25	WPL 758745
25	Panel
26	Grille
27	WP90767 Whirlpool Screw
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
34	Screw, 10 x 1/2
35	Nut, Well (3)
36	Trim, Door
37	Insulation, Door
38	Screw, No.8-32 x 1/2
38	Leg, Leveling Kit
38	Grid, Cutter (3/4“ – Cubes)
38	Grid, Cutter (1-1/4“ – Cubes (Complete Assembly))
38	WP503695 Whirlpool Refrigerator Sealer
38	978026 Whirlpool Refrigerator Primary Valve
38	WP978025 Whirlpool Refrigerator Valve
38	Ice Deflector Kit
