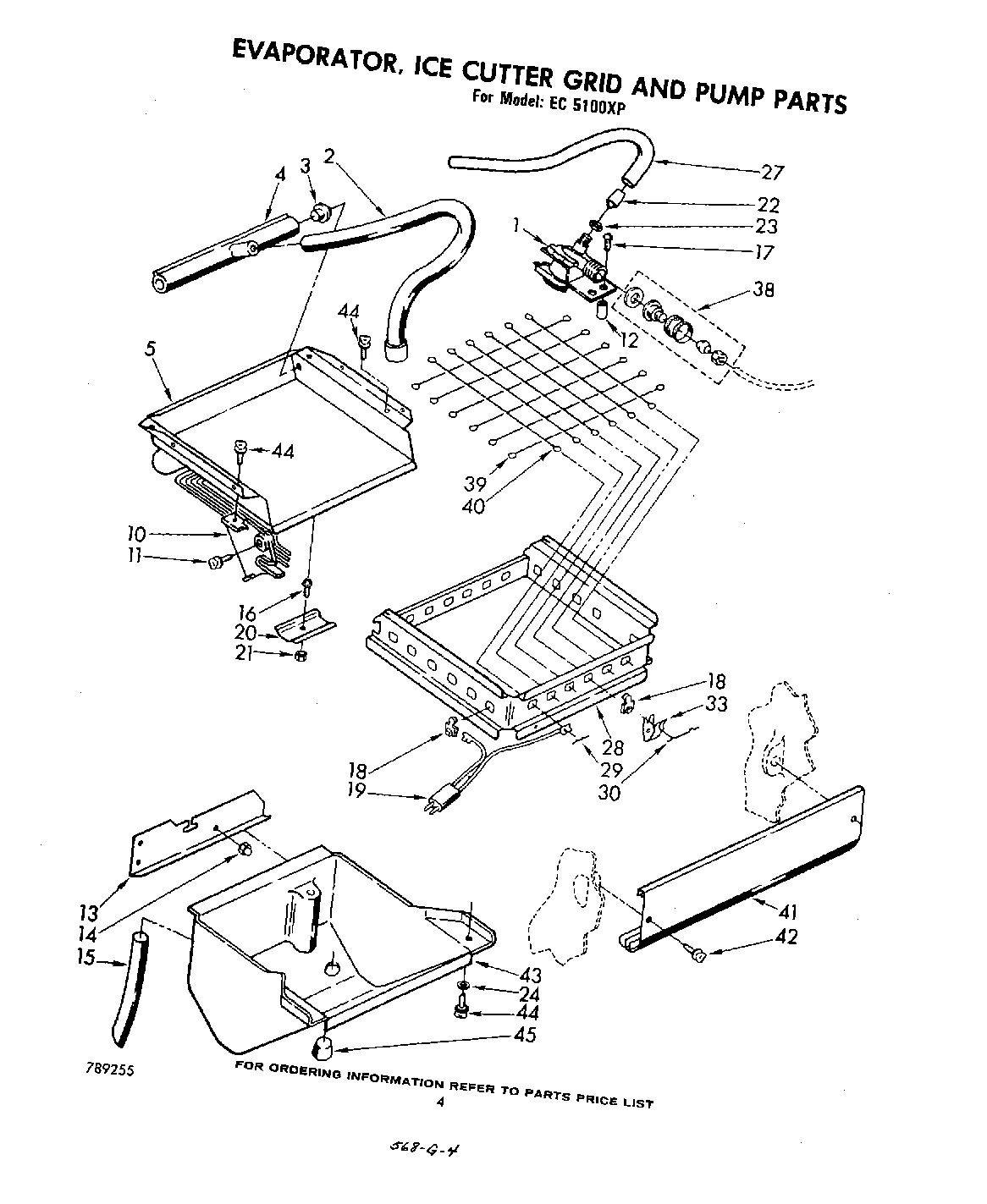

EC5100XP 03 – EVAPORATOR, ICE CUTTER GRID AND PUMP

Products

Position	Product
1	Valve, Water
2	Hose, Dispenser
3	Plug (2)
4	Dispenser, Water
5	Evaporator
10	Bracket, Grid (2)
11	Screw, Thumb 10-32 x 1“
12	Spacer, (2) Water Valve
13	Shelf, Water Pan
14	Nut (3)
15	Hose, 1/2 I.D. x 12“ (Bin To Pump)
16	Screw, 10-32 x 1/2
17	Screw, 1/4 x 20 x 1 3/4
18	Insulator, Grid Wires (38)
19	Harness, Wiring (Cutter Grid)
20	Clamp
21	Nut, 10-32
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
24	Washer, Latch
27	W10823511 Whirlpool Refrigerator Water Tube
28	Frame, Grid (Not A Service Item)
29	Pin, Grid Wire (17)
30	Pin, Grid Wires (4)
33	Clip, Grid Wires (38)
38	WPL 533238
39	Wire, Cutter (Includes 9 Wires)
40	Wire, Cutter (Includes 10 Wires)
41	Panel, Grid
42	Screw, Thumb 10-32 x 3/4 (2)
43	Pan, Water
44	Screw, 10 x 1/2
45	Plug, Pan
