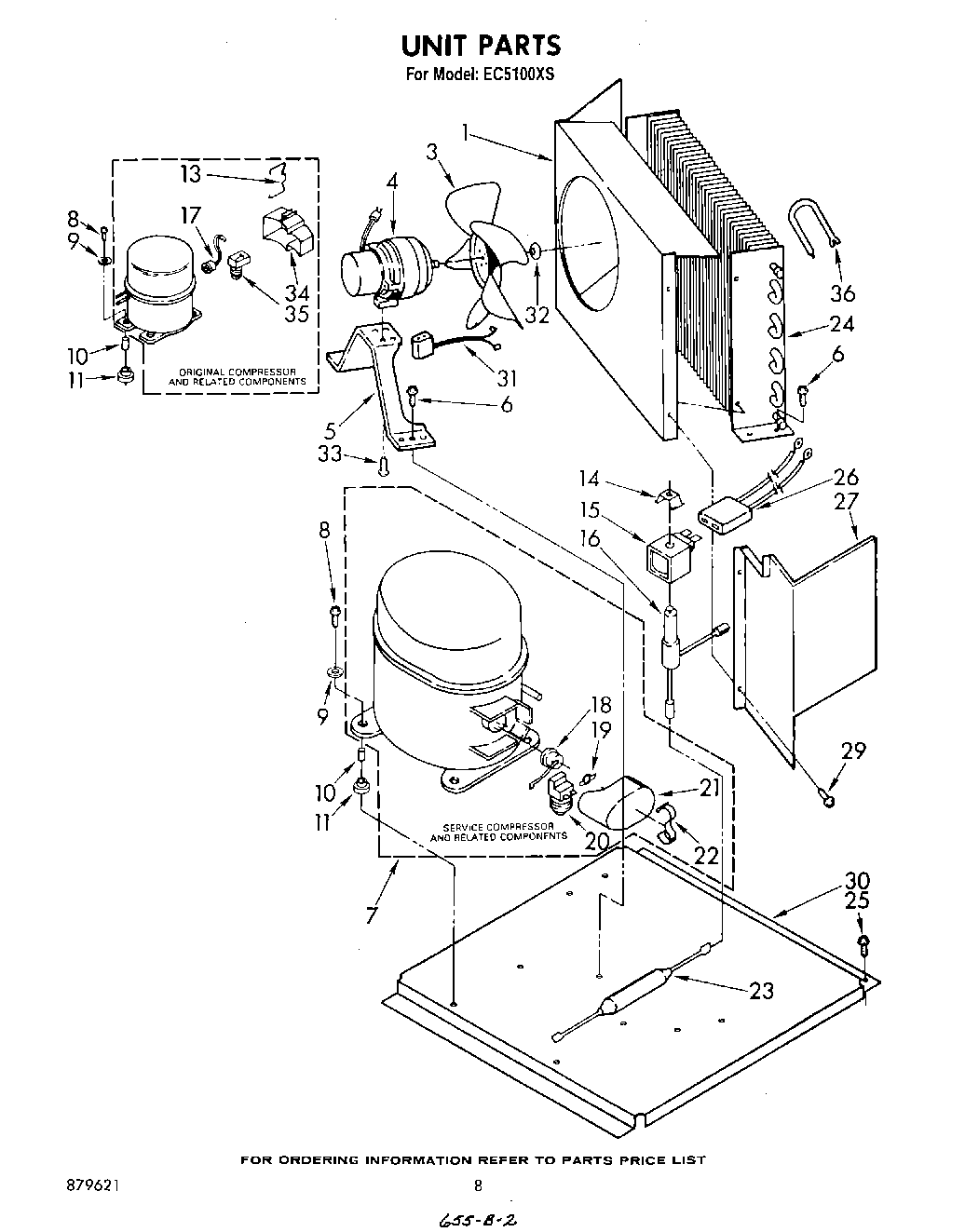

EC5100XS 06 – UNIT

Products

Position	Product
1	Shroud, Condenser
3	978655 Whirlpool Refrigerator Fan Blade
4	Motor, Fan
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	Compressor, Service (Complete Assembly)
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
13	Strap
14	Retainer, Solenoid Coil
15	Coil, Solenoid
16	Valve, Solenoid Coil
17	Overload
18	Overload
19	Spring, Overload
20	Relay, Start
21	Cover, Terminal
22	Cover, Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
25	Screw, No.10-32 x 3/8
26	Harness, Wiring (Solenoid Coil)
27	Deflector, Front
29	WP90767 Whirlpool Screw
30	Base, Unit
31	Harness, Wiring (Fan Motor)
32	Nut, Hex 1/4-20
33	Screw, 8-36 x 1/2 (Included With Fan Motor)
34	Cover
35	Relay, Start
36	Accumulator
