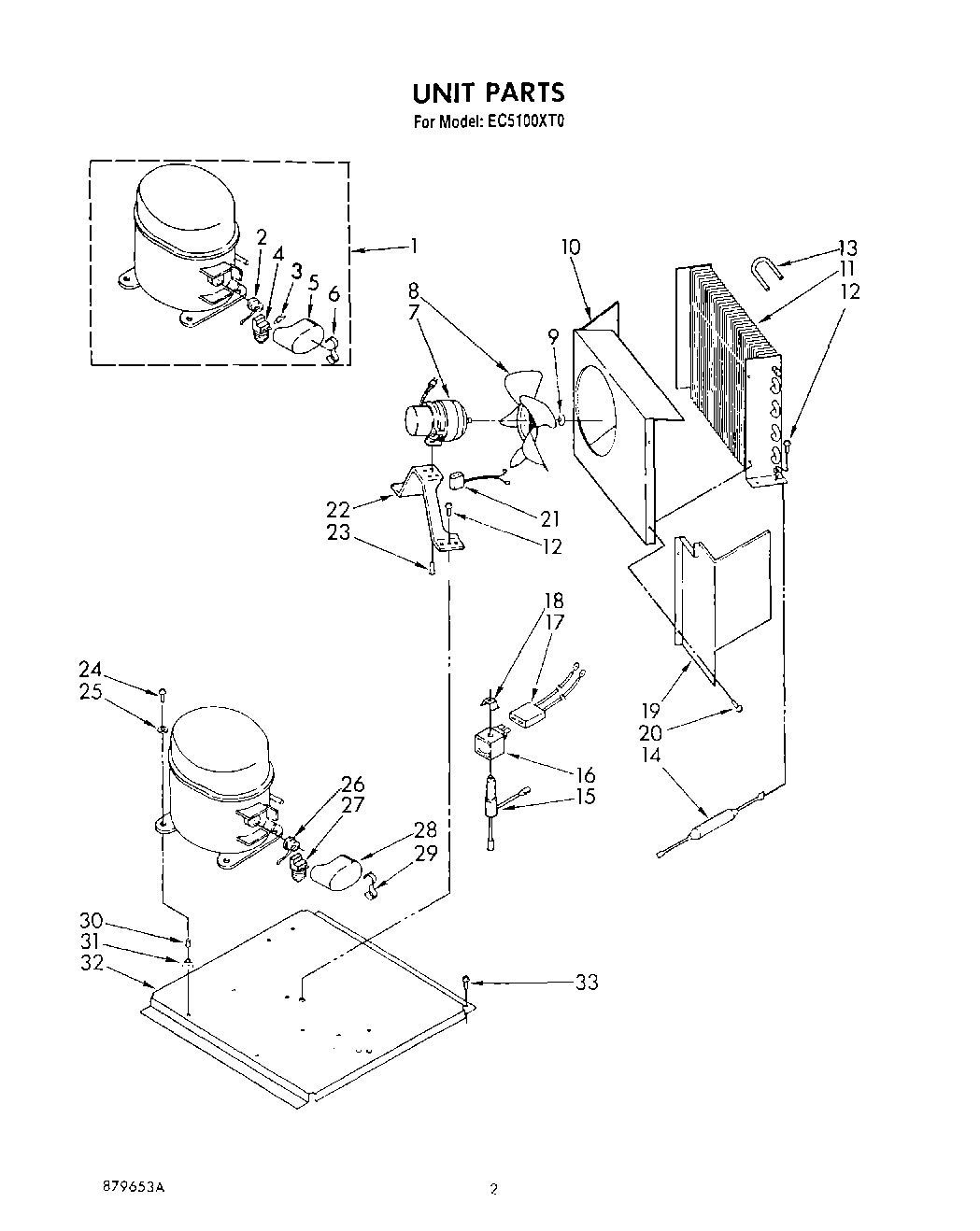

EC5100XT0 02 – UNIT, LITERATURE

Products

PositionProduct
List, Repair Parts
Instructions, Installation
Guide, Use And Care
WPL LIT758860
1Compressor, Service (Complete Assembly)
2Overload
3Spring, Overload
4Relay, Start
5Cover, Terminal
6Cover, Spring
7Motor, Fan (Includes No. 23)
8978655 Whirlpool Refrigerator Fan Blade
9Nut, Hex 1/4-20
10Shroud, Condenser
11Condenser
12Screw, 1/4-20 x 1/2
13Accumulator
14W10843121 Whirlpool Refrigerator Tube
15Valve, Solenoid Coil
16Coil, Solenoid
17Harness, Wiring (Solenoid Coil)
18Retainer, Solenoid Coil
19Deflector, Air
20WP90767 Whirlpool Screw
21Harness, Wiring (Fan Motor)
22Bracket, Fan Motor
23Screw, 8-36 x 1/2 (4)
24Screw, 5/16-18 x 1-1/4 (4)
25Washer, Flat (4)
26Overload
27Relay, Start
28Cover
29Strap
30Sleeve (4)
31Grommet (4)
32Base, Unit
33Screw, No.10-32 x 3/8
