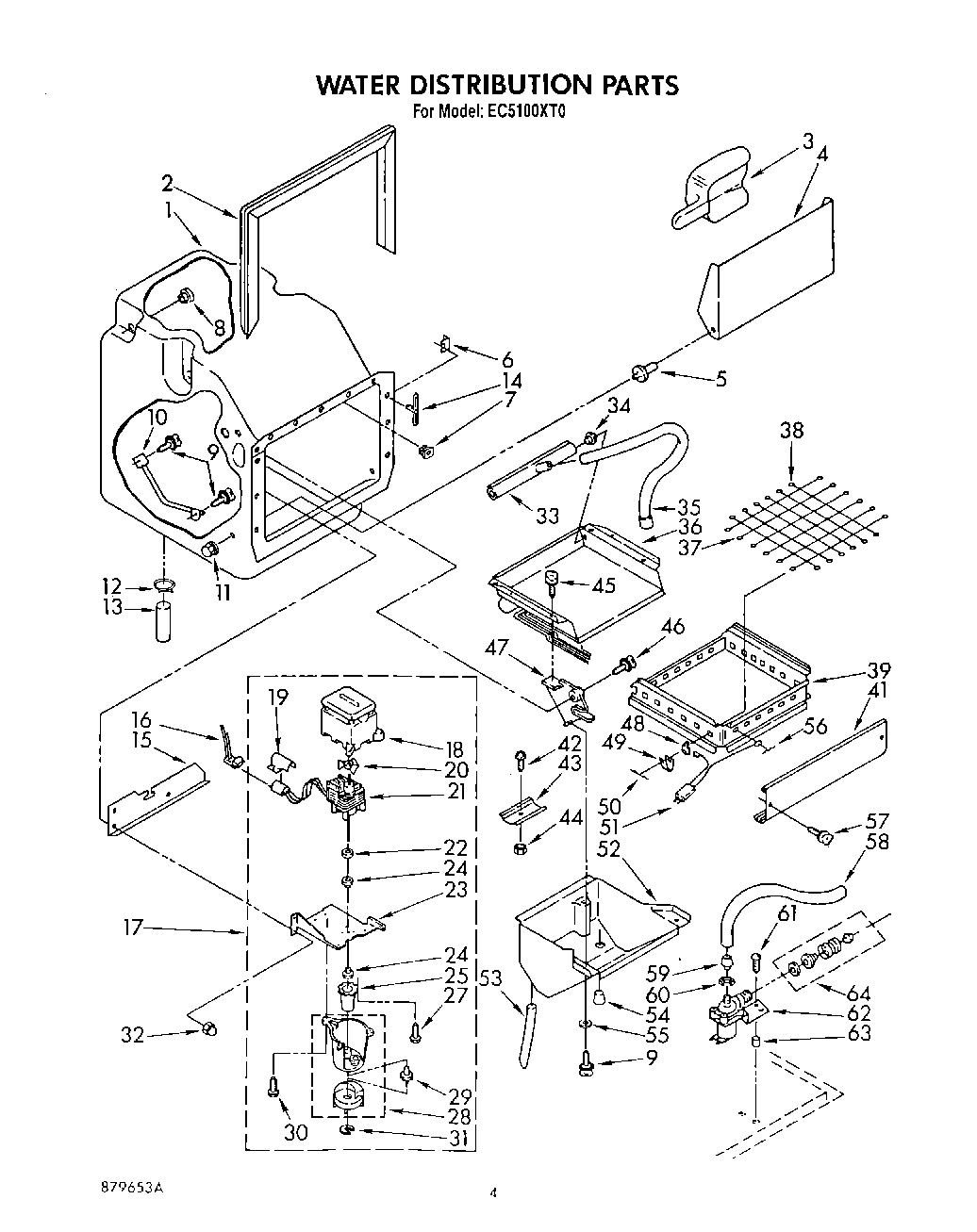

EC5100XT0 03 – WATER DISTRIBUTION

Products

Position	Product
1	Liner (Includes No.s 5, 6, 7, 11, 14)
2	Gasket, Liner
3	W11420408 Whirlpool Refrigerator Ice Scoop
4	Door, Inner
5	Stud, Inner Door Mtg. (2)
6	Washer, Clip
7	Grommet, Mtg (2)
8	Nut, Well (3)
10	Thermostat, Well Bin
11	Nut, Hex 1/4 (2)
12	Clamp, Hose (2)
13	Hose, 5/8 x 4“ (Connector To Air Gap)
14	Clip, Linner (12)
15	Shelf, Water Pan
16	Harness, Wiring (Water Pump)
17	WP756782 Whirlpool Refrigerator Pump
18	Housing, Motor
19	Sheild, Wiring
20	Blade, Fan
21	Motor, Pump
22	Washer
23	Bracket, Pump
24	Grommet (2)
25	Sleeve
27	681390 Whirlpool Refrigerator Screw
28	Pump, Assembly
29	Impeller, Pump (Includes No. 31)
30	Screw, 8-18 x 3/4
31	Ring, Retaining
32	Nut (3)
33	Dispenser, Water
34	Plug,
35	Hose, Dispenser
36	Evaporator
37	Wire, Cutter (Includes 9 Wires)
38	Wire, Cutter (Includes 10 Wires)
41	Panel, Grid
42	Screw, 10-32 x 1/2
43	Clamp
44	Nut, 10-32
45	Screw, 10 x 1/2
46	Screw, Thumb 10-32 x 1“
47	Bracket, Grid (2)
48	Insulator, Grid Wires (38)
49	Clip, Grid Wires (38)
50	Pin, Grid Wires (4)
51	Harness, Wiring (Cutter Grid)
52	Pan, Water
53	Hose, 1/2 I.D. x 12“ (Bin To Pump)
54	Plug, Pan
55	Washer, Latch
56	Pin, Grid Wire (17)
57	Screw, Thumb 10-32 x 3/4 (2)
58	W10823511 Whirlpool Refrigerator Water Tube
59	4387491 Whirlpool Refrigerator Insert
60	WP627018 Whirlpool Refrigerator Nut
61	Screw, 1/4 -20 x 1-3/4 (2)
62	Valve, Water
63	WPL 758737
64	WPL 533238
