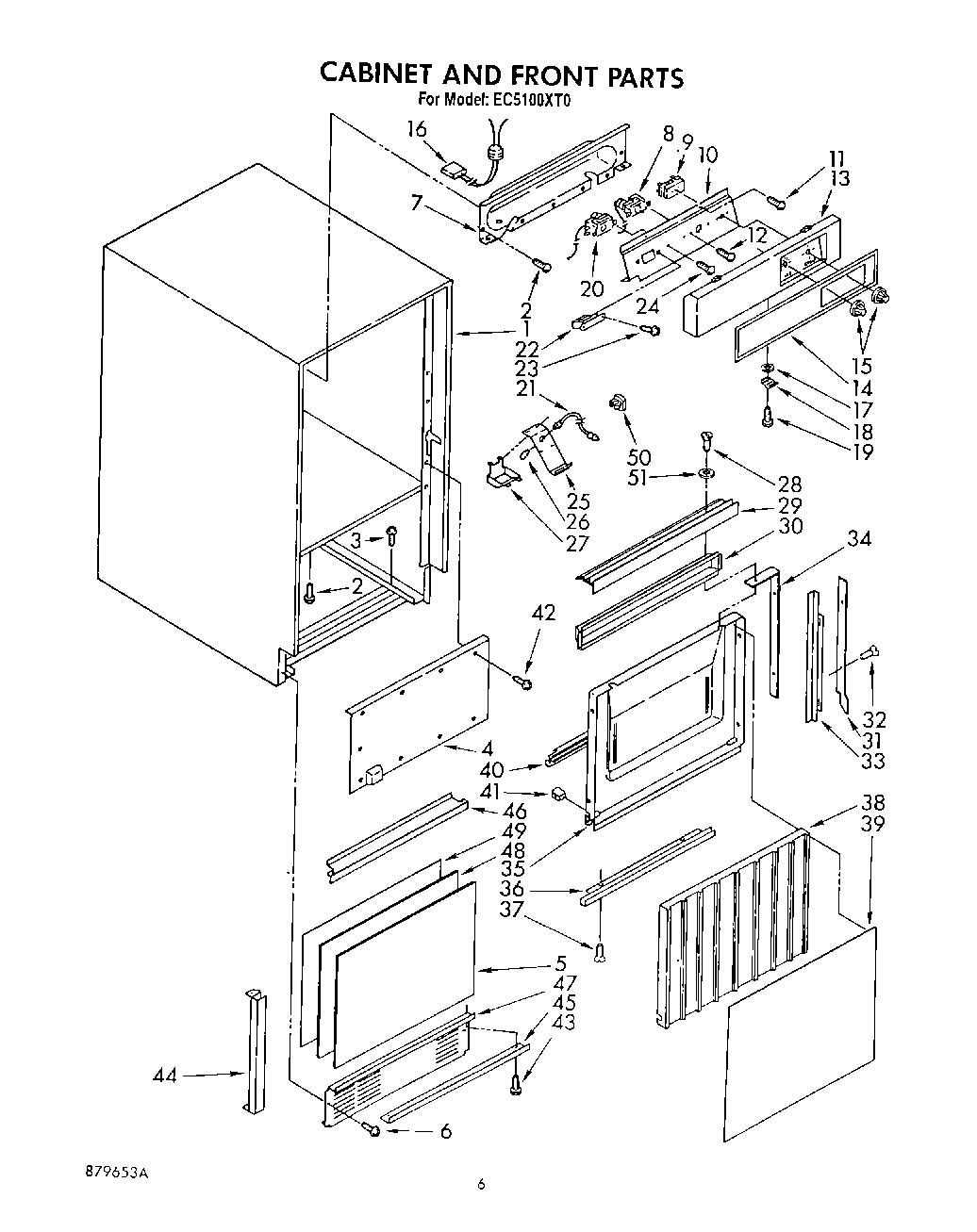

EC5100XT0 04 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Panel, Grille Cabinet Front
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	Thermostat, Evaporator
9	Switch, Rotary
10	Panel, Control
12	WP486579 Whirlpool Air Conditioner Screw
13	Escutcheon, Control
14	Insert, Escutcheon
15	Knob, Control (2)
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch, Door
19	Screw, 8-32 x 1/2
20	Thermostat, Ice Bin
21	Harness, Light
22	Transformer
24	Screw, 8-32 x 3/8 (2)
25	Bracket, Light
26	Bulb, Light (Pkg. Of 2)
27	Shield, Light
28	Screw, 10 x 1/2
29	Handle, Door
30	Pocket, Handle
31	Rail, Door (Left Side)
31	Rail, Door (Right Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (2)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door
37	Screw, No.8-32 x 1/2
38	Insulation, Door
39	Panel, Door (White & Black)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
44	Trim, Sides (2)
45	Trim, Top & Bottom
46	Support Panel
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
50	Retainer, Wire
51	Washer (2)
