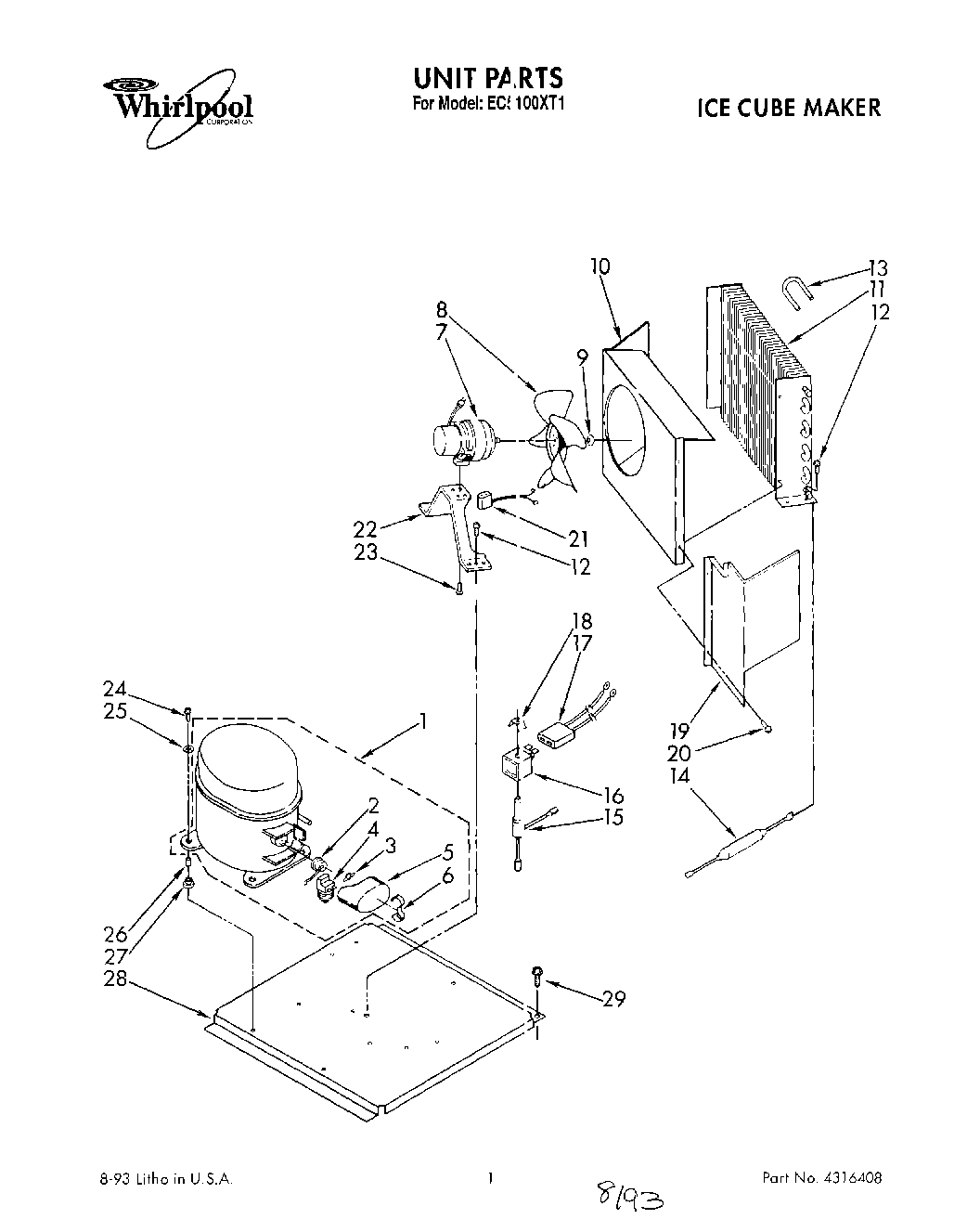

EC5100XT1 01 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	WPL LIT758860
	List, Repair Parts
	WPL 758846
	Guide, Use And Care
1	Compressor, Service Kit
2	Overload
2	Overload
3	Spring, Overload
4	Relay, Start
4	Relay, Start (Service)
5	Cover
5	Cover, Terminal
6	Cover, Spring
6	Strap
7	Motor, Fan (Includes No. 23)
8	978655 Whirlpool Refrigerator Fan Blade
9	Nut, Hex 1/4-20
10	Shroud, Condenser
11	Condenser
12	Screw, 1/4-20 x 1/2
13	Accumulator
14	W10843121 Whirlpool Refrigerator Tube
15	Valve, Solenoid Coil
16	Coil, Solenoid
17	Harness, Wiring (Solenoid Coil)
18	Retainer, Solenoid Coil
19	Deflector, Air
20	WP90767 Whirlpool Screw
21	Harness, Wiring (Fan Motor)
22	Bracket, Fan Motor
23	Screw, 8-36 x 1/2 (4)
24	Screw, 5/16-18 x 1-1/4 (4)
25	Washer, Flat (4)
26	Sleeve (4)
27	Grommet (4)
28	Base, Unit
29	Screw, No.10-32 x 3/8
