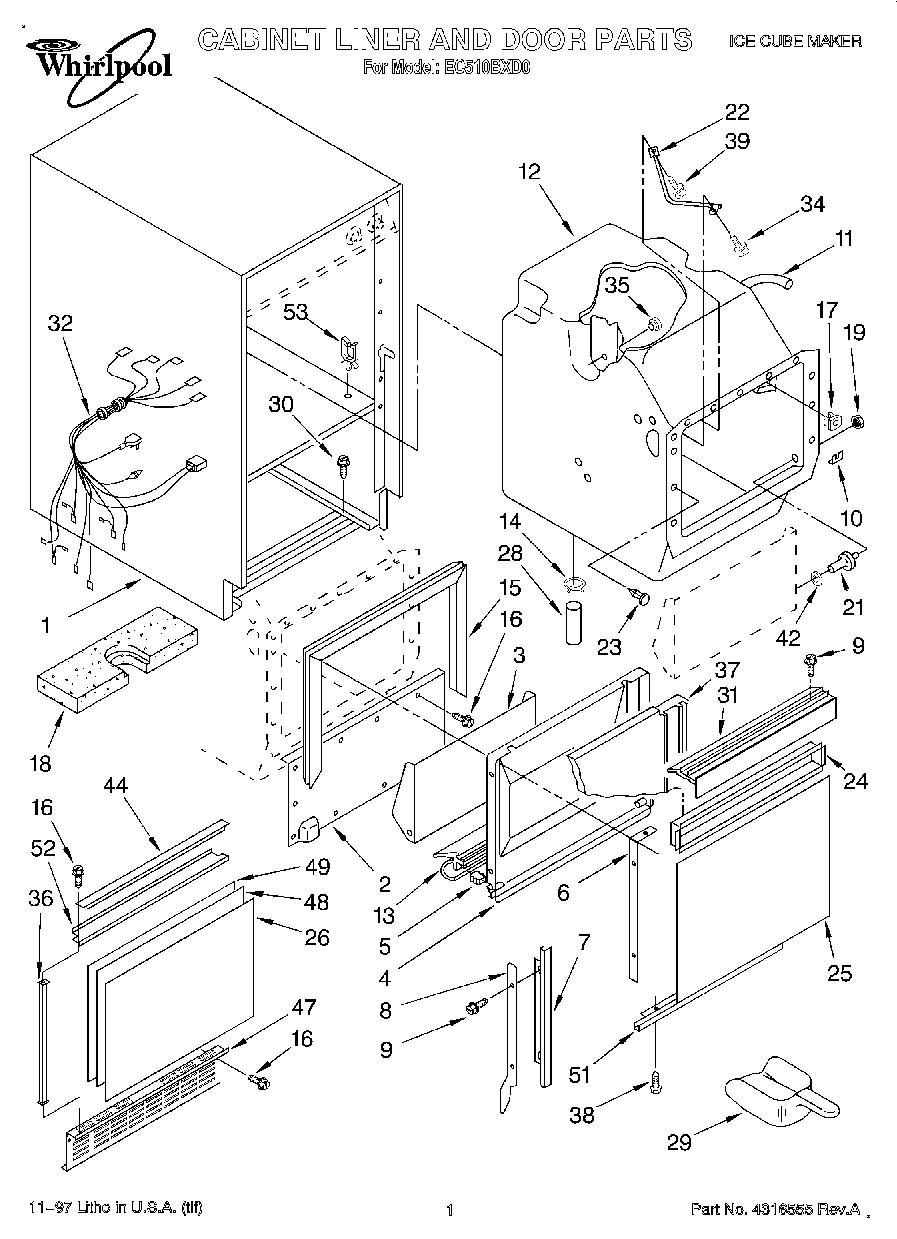

EC510BXD0 01 – CABINET LINER AND DOOR, LIT/OPTIONAL

Products

Position	Product
	Use and Care Guide
	Instruc
	Tech Sheet
	Label, Wiring
1	Shell
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pocket, Handle
25	Panel, Door (White & Black)
26	Panel, Grille Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Handle, Recessed
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	212643 Whirlpool Refrigerator Permagum Sealer
53	VALVE, ACCESS (5/8“)
53	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
53	876370 Whirlpool Refrigerator Insulation
53	WP503695 Whirlpool Refrigerator Sealer
53	978026 Whirlpool Refrigerator Primary Valve
53	978027 Whirlpool Refrigerator Primary Valve
53	WP505587 Whirlpool Refrigerator Sealer
53	978030 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (1/2“)
53	WP978025 Whirlpool Refrigerator Valve
53	Retainer, Wire (2)
