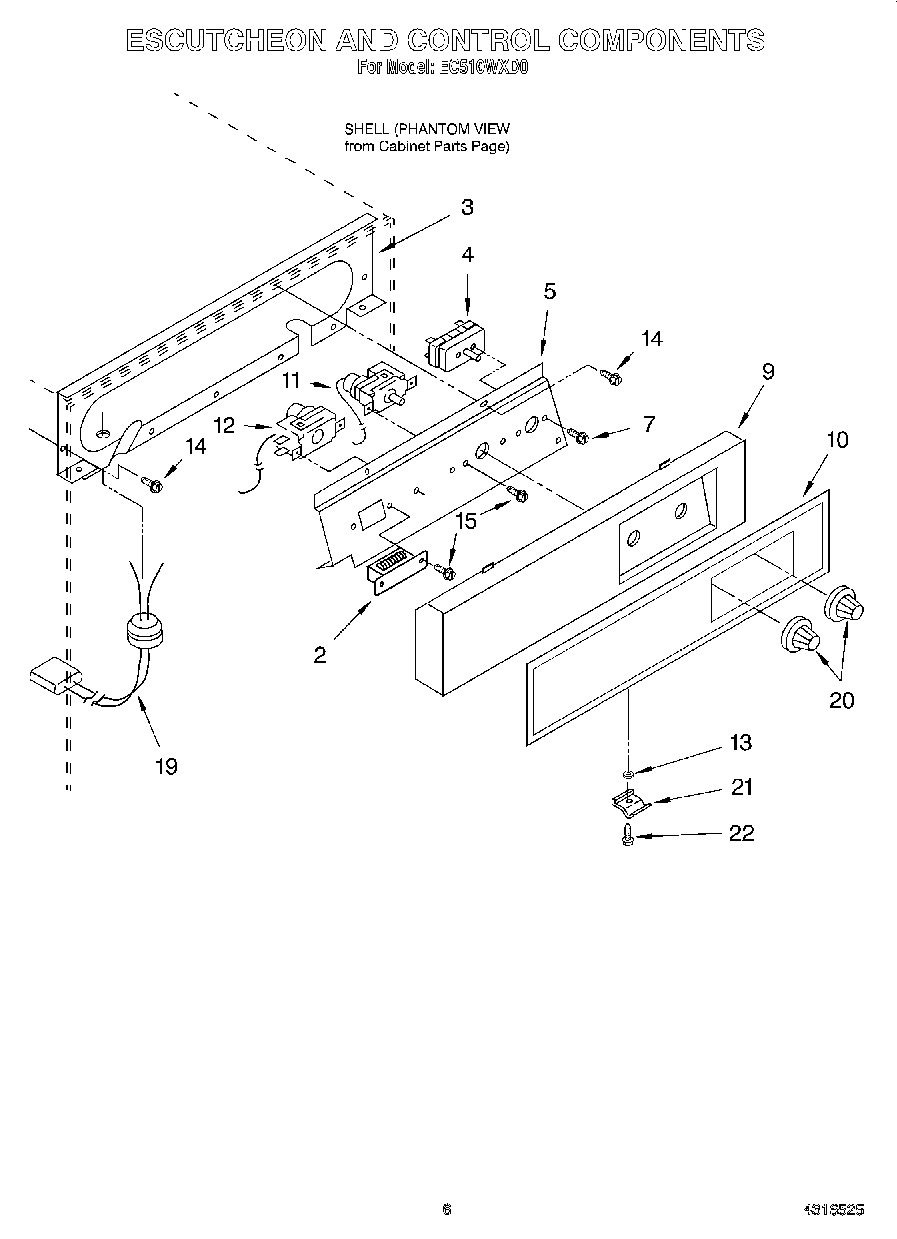

EC510WXD0 04 – ESCUTCHEON AND CONTROL COMPONENTS

EC510WXD0 04 – ESCUTCHEON AND CONTROL COMPONENTS

Written by

in

EC510WXD0 04 – ESCUTCHEON AND CONTROL COMPONENTS

Products

PositionProduct
2WPL 2165483
3Escutcheon, Panel
4Switch, Service
5WPL 2172846
7WP486579 Whirlpool Air Conditioner Screw
9Escutcheon
10Decal, Escutcheon
11WPL 2157321
12WPL 2165478
13Washer, Latch
14WP488729 Whirlpool Refrigerator Door Screw
15Screw, 8-32 x 3/8 (2)
19Harness, Wiring (Cutter Grid)
20Knob
21Latch
22Screw, 8-32 x 1/2
