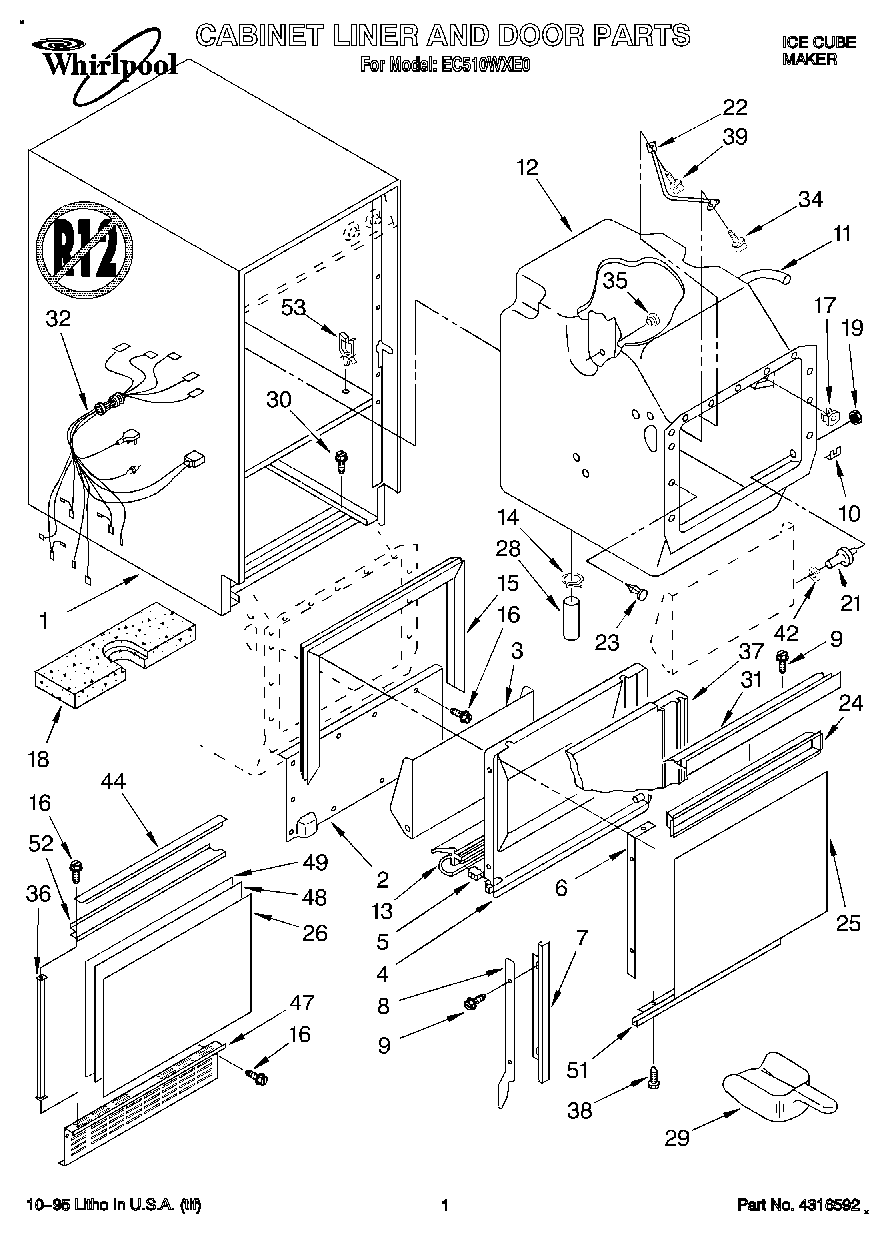

EC510WXE0 01 – CABINET LINER AND DOOR

Products

Position	Product
1	WPL 2175636
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pocket, Handle
25	Panel, Door (White & Black)
26	Panel, Grille Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Handle, Recessed
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
47	Grill, Front
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	Retainer, Wire (2)
