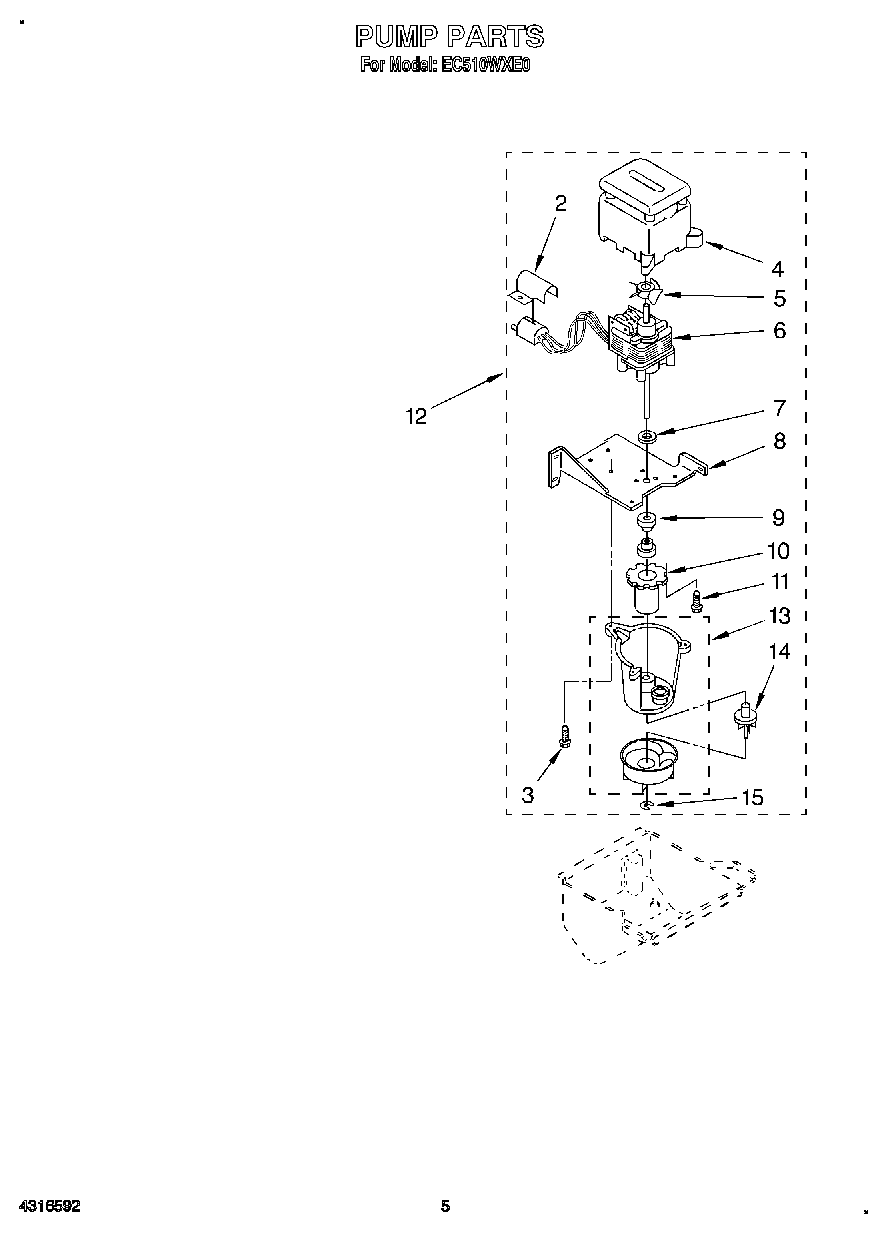

EC510WXE0 03 – PUMP

Written by

EC510WXE0 03 – PUMP

Products

Position	Product
2	Sheild, Wiring
3	Screw, 8-18 x 3/4
4	WPL 583155
5	Blade, Fan
6	WPL 1127834
7	WPL 583424
8	Bracket, Pump
9	Grommet (2)
10	Sleeve
11	681390 Whirlpool Refrigerator Screw
12	WP756782 Whirlpool Refrigerator Pump
13	Pump, Assembly
14	Impeller, Pump (Includes No. 31)
15	Ring, Retaining
