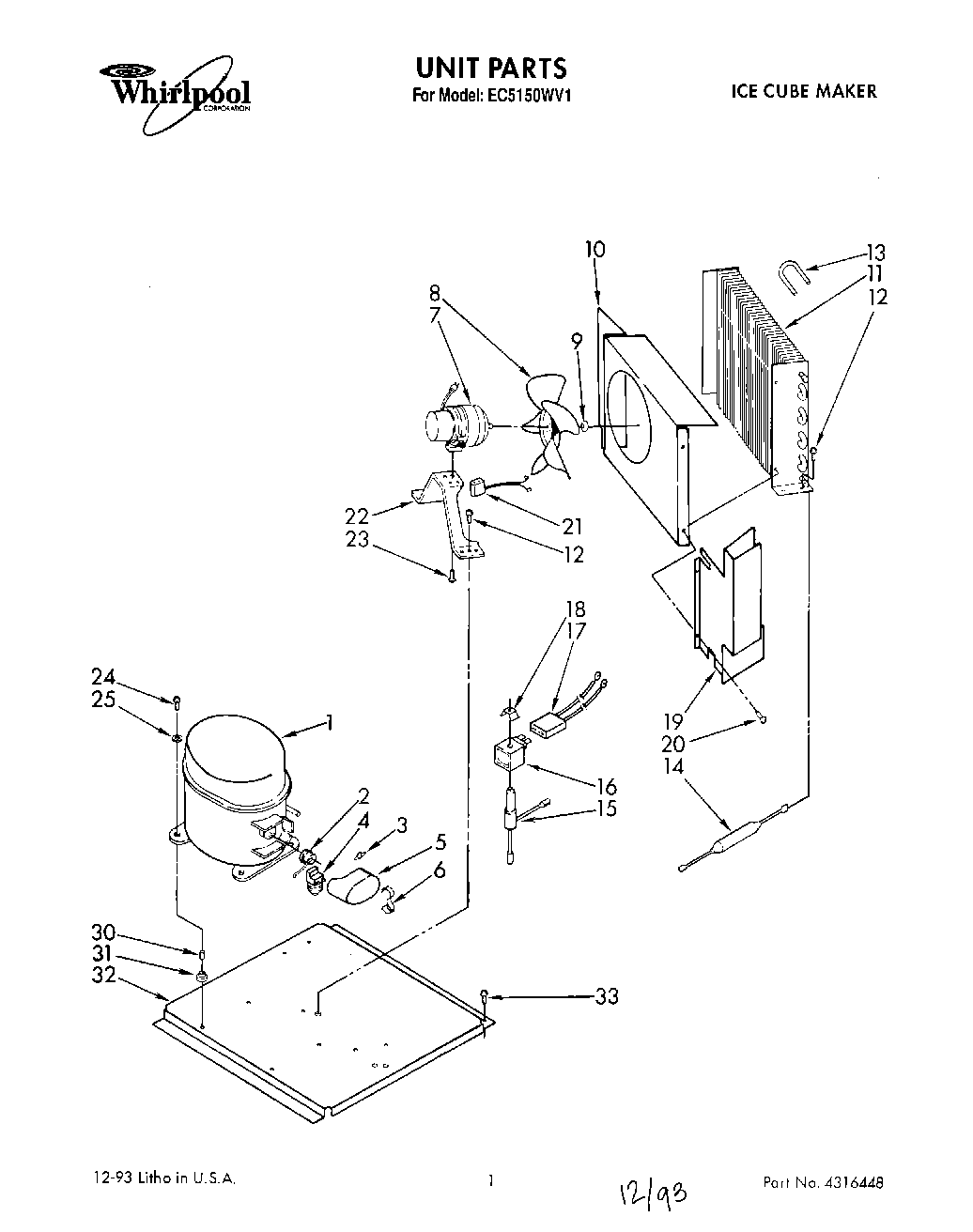

EC5150WV1 01 – UNIT, LITERATURE

Products

Position	Product
	Sheet, Tech
	Wiring Diagram
	Guide, Use And Care
	Instructions, Installation
1	Compressor, Service Kit
2	Overload
2	Overload
3	Spring, Overload
4	Relay, Start
4	Relay, Start
5	Cover, Terminal
5	Cover
6	Cover, Spring
6	Strap
7	Motor, Fan (Includes No. 23)
8	978655 Whirlpool Refrigerator Fan Blade
9	Nut, Hex 1/4-20
10	Shroud, Condenser
11	Condenser
12	Screw, 1/4-20 x 1/2
13	Accumulator
14	W10843121 Whirlpool Refrigerator Tube
15	Valve, Solenoid Coil
16	Coil, Solenoid
17	Harness, Wiring (Solenoid Coil)
18	Retainer, Solenoid Coil
19	Deflector, Air
20	WP488729 Whirlpool Refrigerator Door Screw
21	Harness, Wiring (Fan Motor)
22	Bracket, Fan Motor
23	Screw, 8-36 x 1/2 (4)
24	Screw, 5/16-18 x 1-1/4 (4)
25	Washer, Flat (4)
30	Sleeve (4)
31	Grommet (4)
32	Base, Unit
33	Screw, No.10-32 x 3/8
