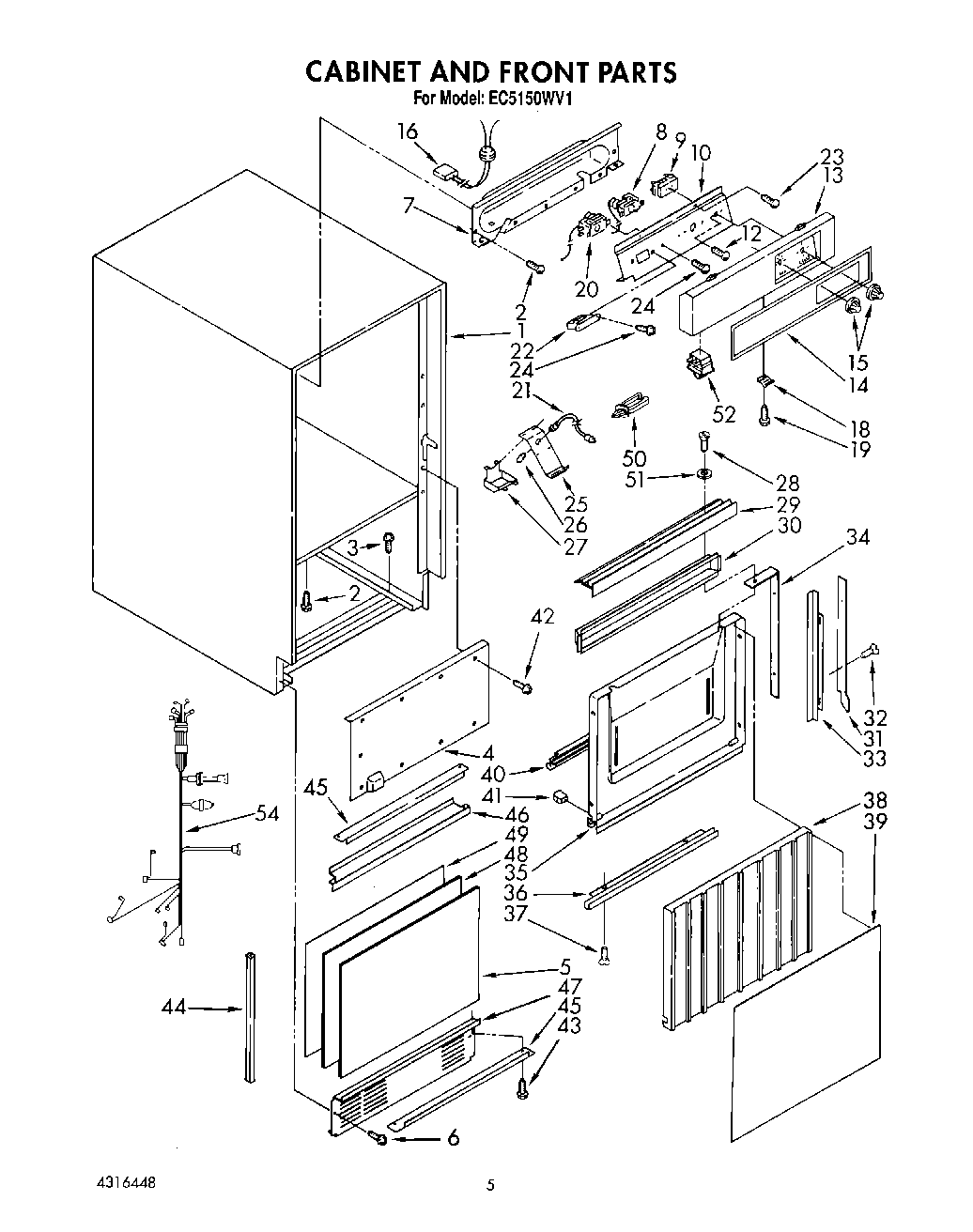

EC5150WV1 03 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Panel, Grille Cabinet Front
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	Thermostat, Ice-Control
9	Switch, Rotary
10	Panel, Control
12	WP486579 Whirlpool Air Conditioner Screw
13	Escutcheon, Control
14	Insert, Escutcheon
15	Knob, Control (2)
16	Harness, Wiring (Cutter Grid)
18	Latch, Door
19	Screw, 8-32 x 1/2
20	Thermostat, Ice-Bin
21	Harness, Light
22	Transformer
24	Screw, 8-32 x 3/8 (2)
25	Bracket, Light
26	Bulb, Light (Pkg. Of 2)
27	Shield, Light
28	Screw, 10 x 1/2
29	Handle, Door
30	Pocket, Handle
31	Rail, Door (Right Side)
31	Rail, Door (Left Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (2)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door
37	Screw, No.8-32 x 1/2
38	Insulation, Door
39	Panel, Door (White & Black)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	Trim Front, Panel (Side)
45	Trim Front, Panel (Top & Bottom)
46	Support Panel
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
50	Retainer, Wire (2)
51	Washer (2)
52	W11384469 Whirlpool Door Switch
54	WPL 758838
