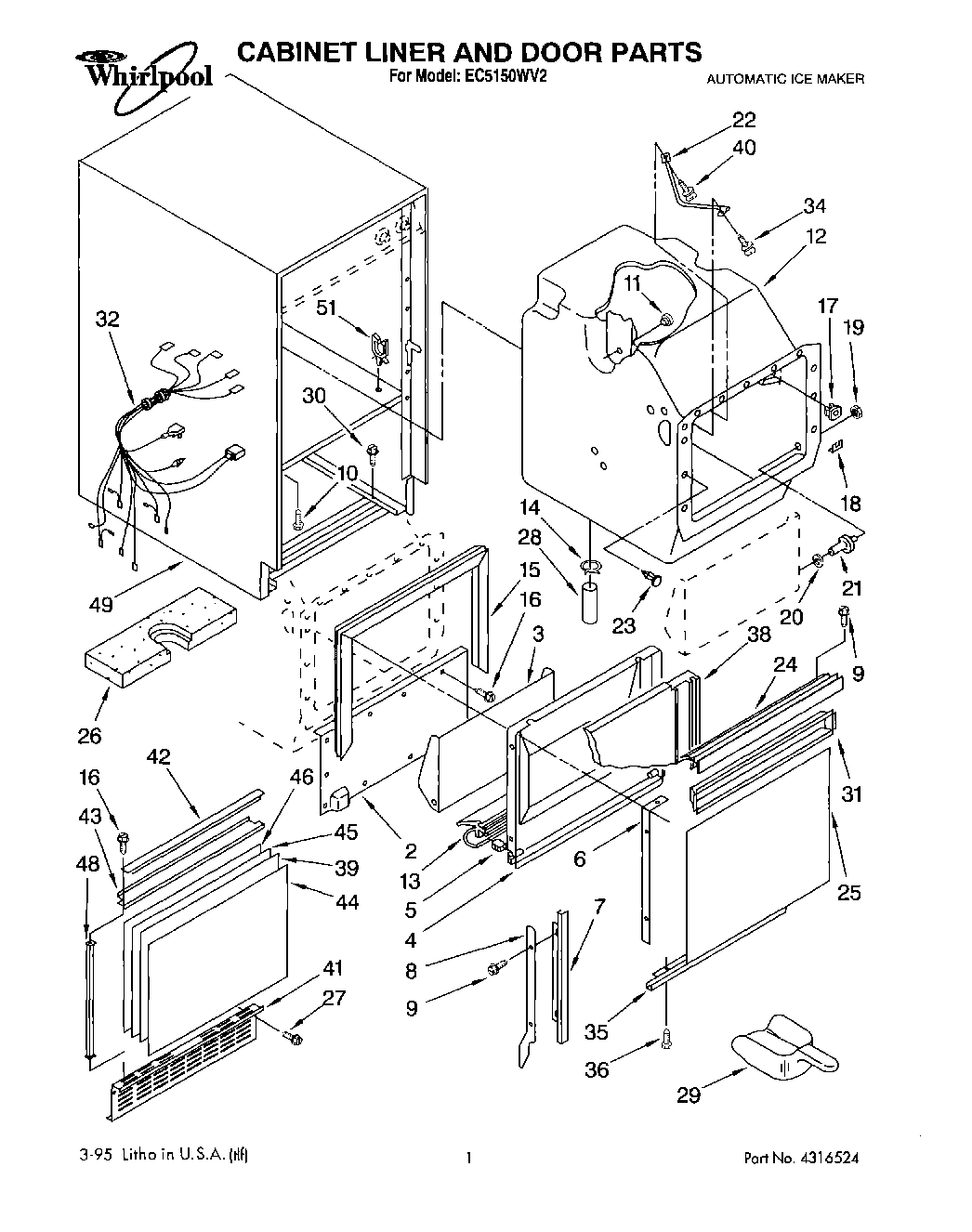

EC5150WV2 01 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	Installation Instructions
	Use and Care Guide
	Tech Sheet
	Wiring Diagram
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Left Side)
8	Rail, Door (Right Side)
9	Screw, No.8-32 1/2 (6)
10	Screw, 8-32 x 3/8 (2)
11	Nut, Well (3)
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Washer, Clip
19	Nut, Hex 1/4 (2)
20	Washer (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Handle, Door
25	Panel, Door (White & Black)
26	Insul/Bottom Foam
27	WP90767 Whirlpool Screw
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
31	Pocket, Handle
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Trim, Door
36	Screw, No.8-32 x 1/2
38	Insulation, Door
39	Panel, Grille Cabinet Front
40	Screw, 10 x 1/2
42	Trim Front, Panel (Top & Bottom)
43	WPL 2175604
44	Grille, Panel
45	Filler, Grille Panel
46	Panel, Inner Grille
48	Trim Front, Panel (Side)
49	WPL 2175698
51	Retainer, Wire (2)
