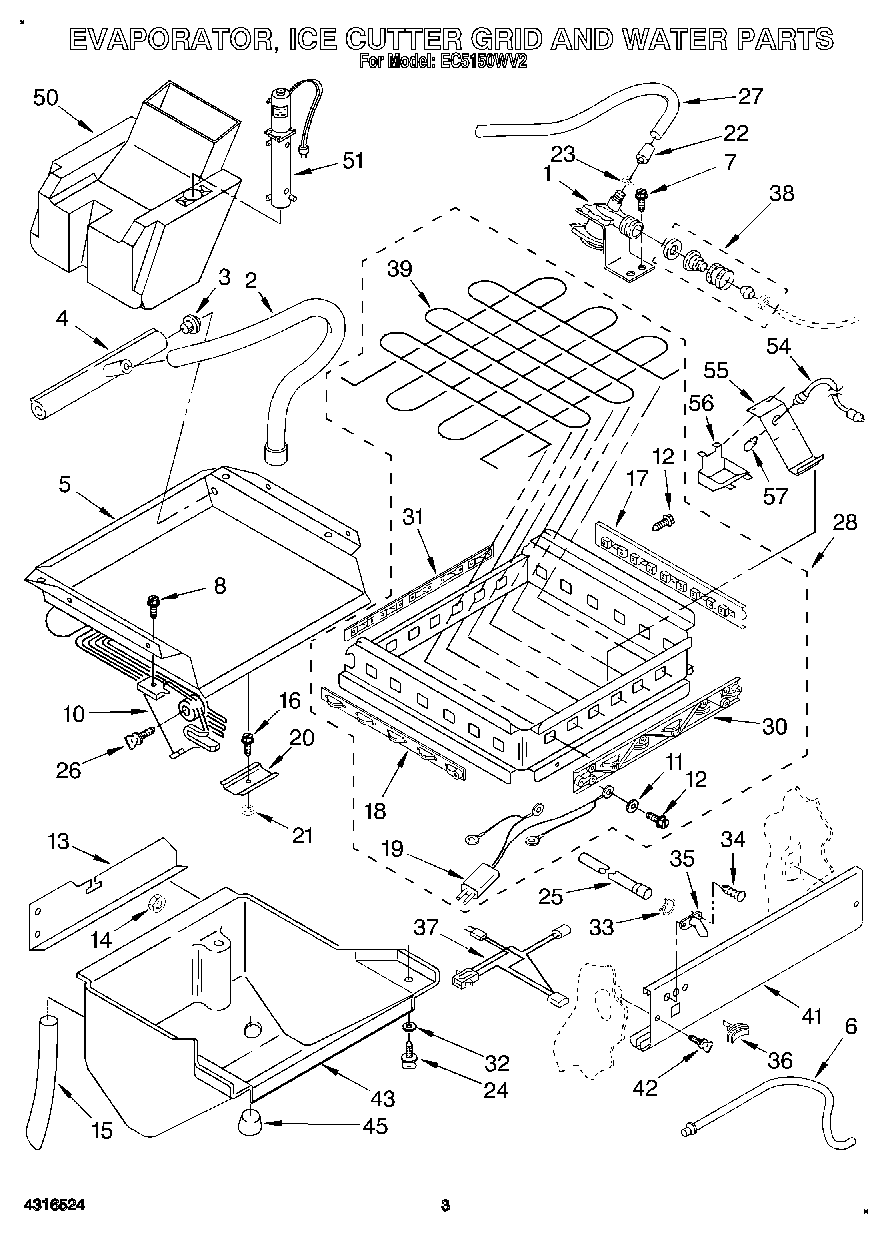

EC5150WV2 02 – EVAPORATOR, ICE CUTTER GRID AND WATER

Products

Position	Product
1	Valve, Water
2	Hose, Dispenser
3	Plug,
4	WPL 1129798
5	Evaporator
6	WPL 759213
7	Screw, 1/4-20 x 1/2
8	SCREW
10	Bracket, Grid (2)
11	Washer
12	Screw
13	Shelf, Water Pan
14	Nut (3)
15	WPL 759109
16	Screw, 10-32 x 1/2
17	Spacer, Adjustable
18	Spacer, Fixed
19	Harness, Grid
20	Clamp
21	Nut, 10-32
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
24	Screw, 10 x 1/2
25	Hose (Pump to Faucet)
26	Screw, Thumb 10-32 x 1“
27	W10823511 Whirlpool Refrigerator Water Tube
28	Grid Assembly
30	Spacer, Adjustable
31	Spacer, Fixed
32	Washer, Latch
33	WP596669 Whirlpool Hose Clamp
34	Clip
35	WP4388152 Whirlpool Refrigerator Fitting
36	Lever, Water Disp.
37	Harness, Water Dispenser
38	Adapter
39	Wire, Grid Cutter
41	Panel, Grid
42	Screw, Thumb 10-32 x 3/4 (2)
43	Pan, Water
45	WPL 759043
50	Tank, Water
51	Pump, Dispensing
54	Harness, Light
55	Bracket, Light
56	Shield, Light
57	Bulb, Light (Pkg. Of 2)
