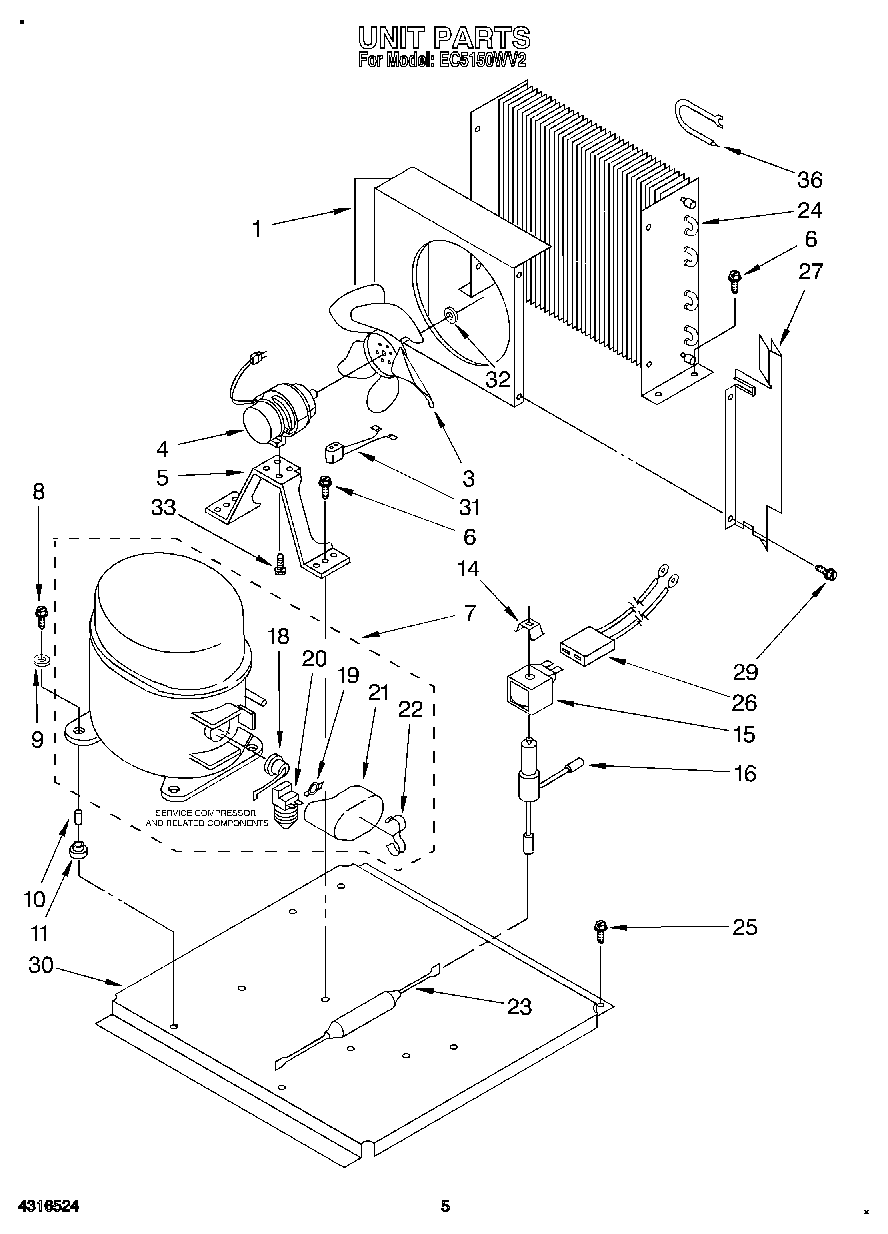

EC5150WV2 03 – UNIT

Products

Position	Product
1	Shroud, Condenser
3	978655 Whirlpool Refrigerator Fan Blade
4	Motor, Fan (Includes No. 23)
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	Compressor, Service Kit
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
14	Retainer, Solenoid Coil
15	Coil, Solenoid
16	Valve, Solenoid Coil
18	Overload
18	Overload
19	Spring, Overload
20	Relay, Start
20	Relay, Start
21	Cover, Terminal
21	Cover
22	Strap
22	Cover, Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
25	Screw, No.10-32 x 3/8
26	Harness, Wiring (Solenoid Coil)
27	Deflector, Air
29	WP488729 Whirlpool Refrigerator Door Screw
30	Base, Unit
31	Harness, Wiring (Fan Motor)
32	Nut, Hex 1/4-20
33	Screw, 8-36 x 1/2 (4)
36	Accumulator
