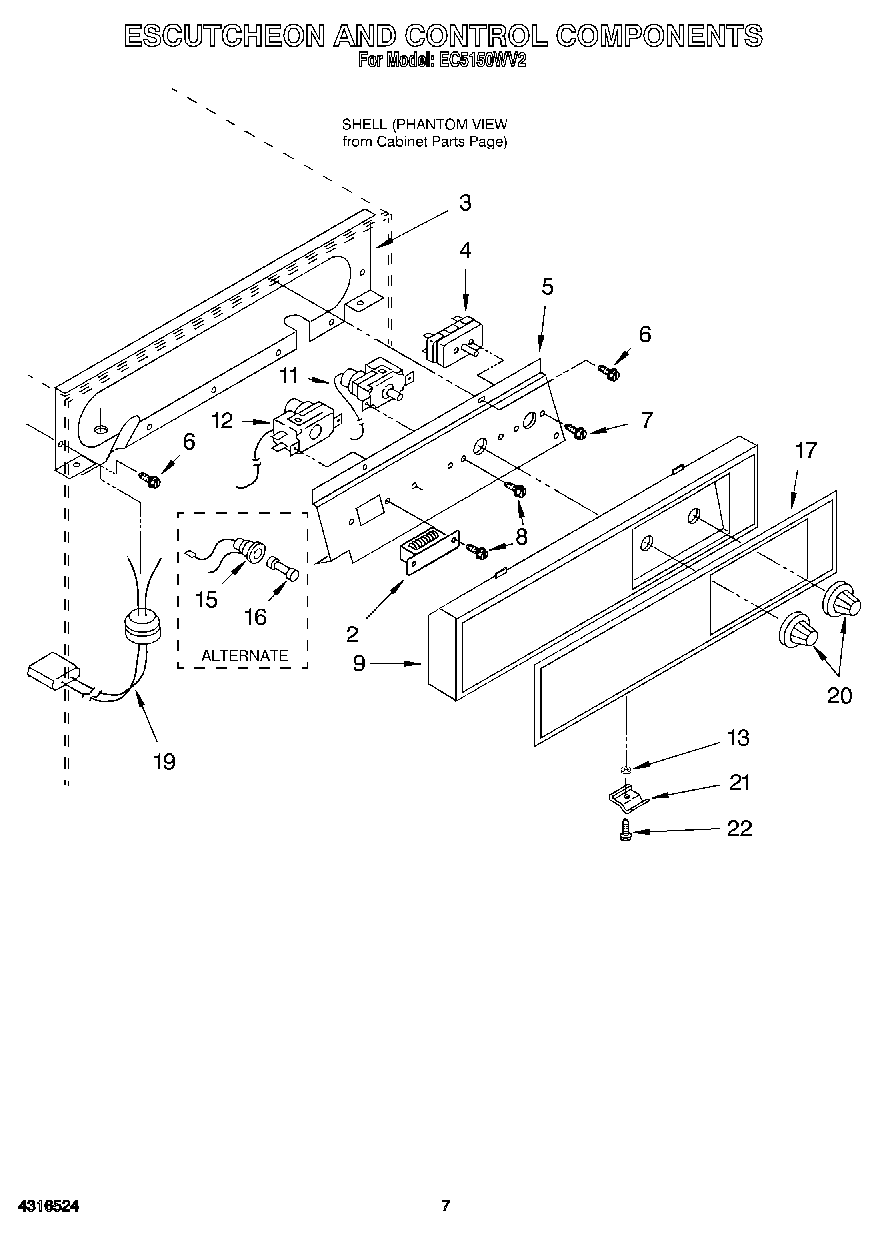

EC5150WV2 04 – ESCUTCHEON AND CONTROL COMPONENTSadmin2025-04-26T11:46:20+00:00EC5150WV2 04 – ESCUTCHEON AND CONTROL COMPONENTS
Products
| Position | Product |
|---|
| 2 | Transformer |
| 3 | Escutcheon, Panel |
| 4 | Switch, Service |
| 5 | WPL 2172846 |
| 6 | WP488729 Whirlpool Refrigerator Door Screw |
| 7 | WP486579 Whirlpool Air Conditioner Screw |
| 8 | Screw, 8-32 x 3/8 (2) |
| 9 | Escutcheon, Control |
| 11 | WPL 2157321 |
| 12 | WPL 2165478 |
| 13 | Washer, Latch |
| 15 | Holder, Fuse |
| 16 | Fuse |
| 17 | Insert, Escutcheon |
| 19 | Harness, Wiring (Cutter Grid) |
| 20 | Knob, Control (2) |
| 21 | Latch, Door |
| 22 | Screw, 8-32 x 1/2 |
