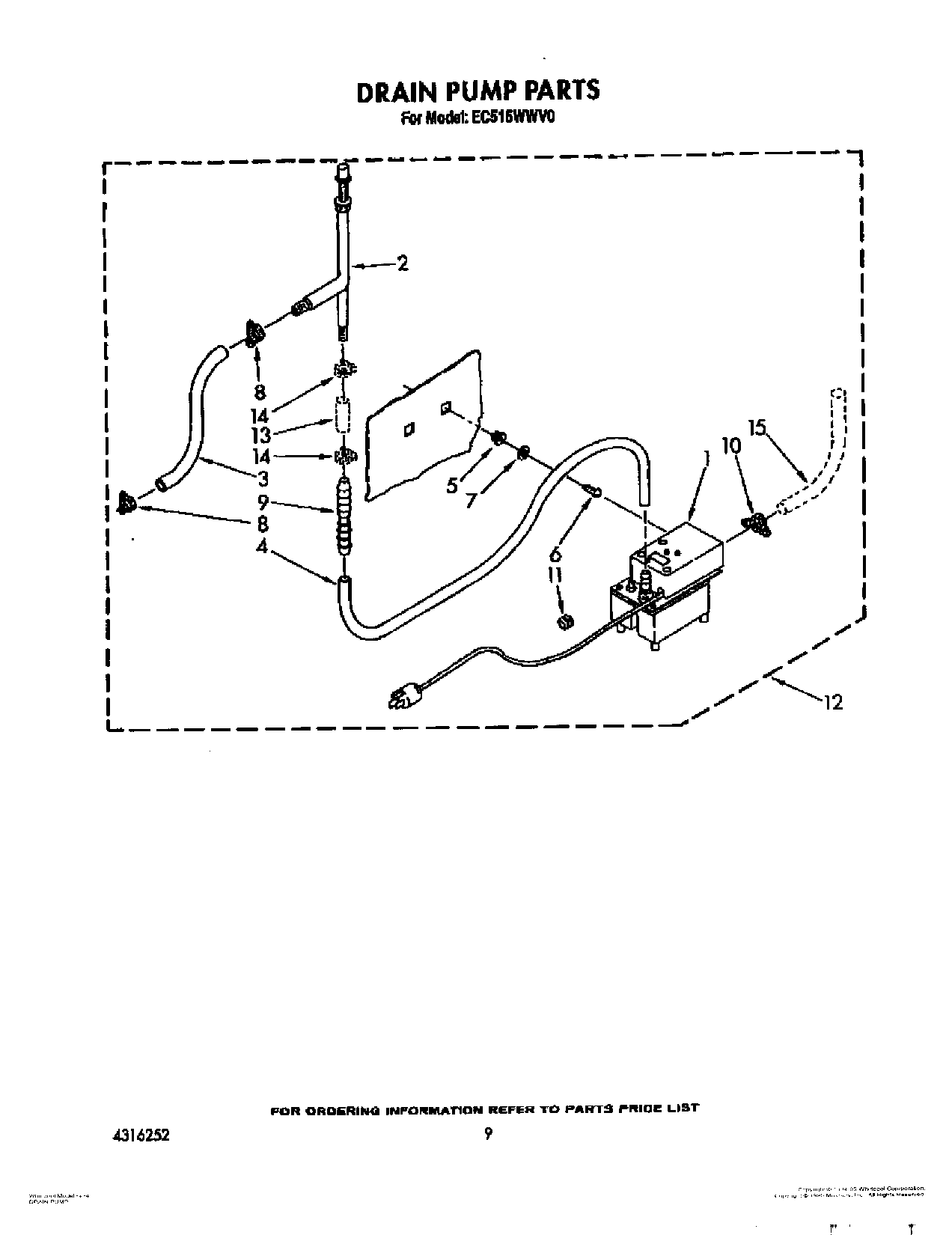

EC515WWV0 06 – DRAIN PUMP

Products

Position	Product
1	WPL 759008
2	WP300096 Whirlpool Dishwasher Air Gap
3	Hose, 7/8 I.D. x 20.0“ (Air Gap To Discharge)
4	Hose, 3/8 I.D. x 14 3/8“ (Pump To Air Gap)
5	Grommet, Mtg (2)
6	W10759522 Whirlpool Screw
7	Washer (2)
8	Clamp, Hose (2)
9	Connector, Hose
10	WP285655 Whirlpool Hose Clamp
11	Bushing, Cord
12	WPL 759009
13	Hose, 5/8 x 4“ (Connector To Air Gap)
14	Clamp, Hose (2)
15	Hose, 1/2 I.D. x 12“ (Bin To Pump)
