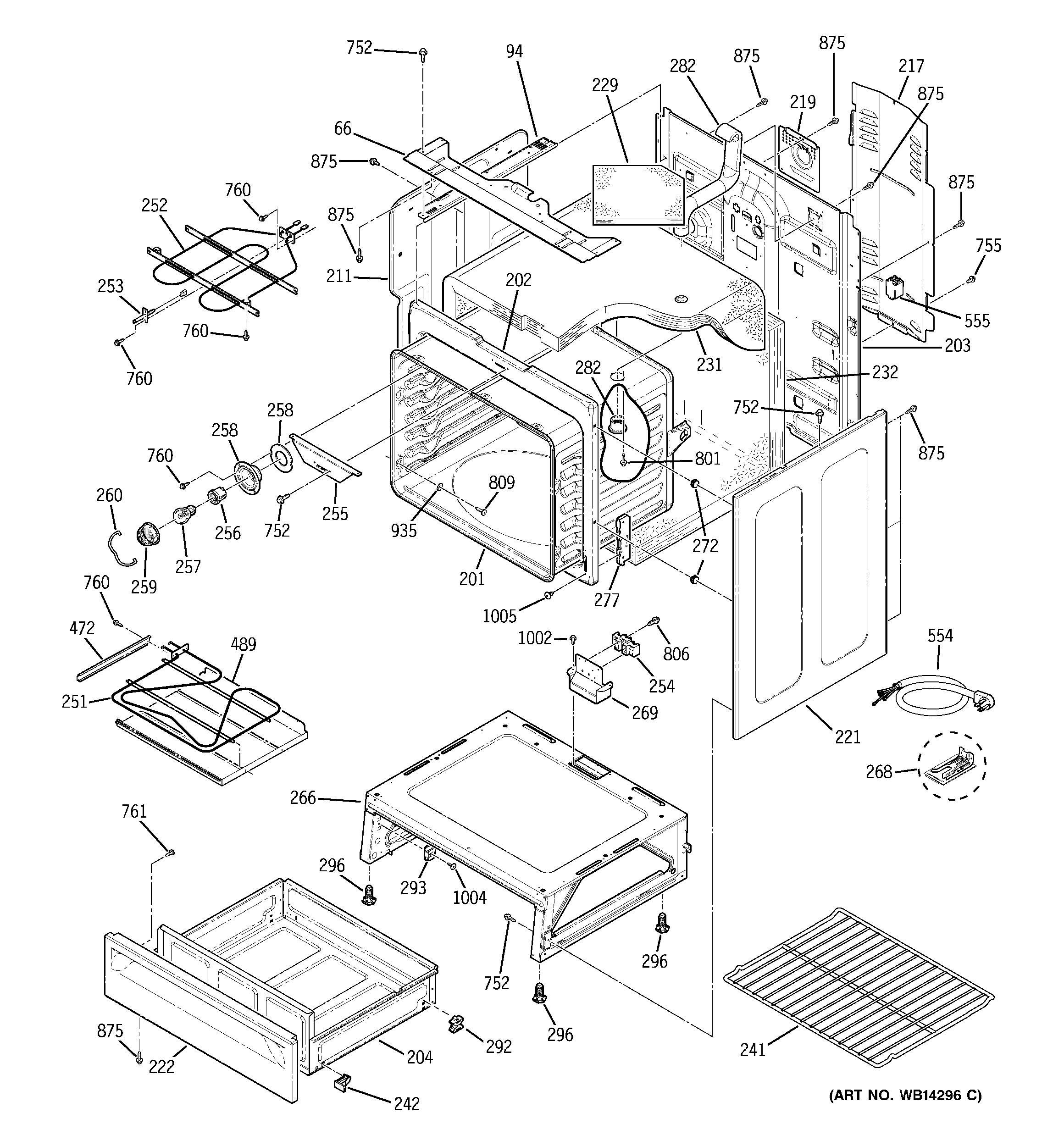

ECBP82DM1WW BODY PARTS

ECBP82DM1WW BODY PARTS

Written by

in

ECBP82DM1WW BODY PARTS

Products

PositionProduct
66ENCLOSURE RANGETOP
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
201GEN WB63T10118
202FRAME FRONT
203GEN WB63T10132
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02T10275
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28884 GE Oven White Side Panel
222GEN WB56T10268
229WB35T10017 GE Oven Vent Tube Insulation
231WB35T10211 GE Oven Insulation
232GEN WB35T10023
241GEN WB48T10028
242WB48T10068 GE Oven Wedge Drawer
251WB44X45499 GE Oven Bake Element
252GEN WB44T10077
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10027 GE Oven Gasket
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
266WB63X28540 GE Base Assembly Rivet
268GEN WB02T10137
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
282WB38X33648 GE Vent Tube
282WB28T10217 GE Radiant Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
554WB08T10029 GE Range Cord 4' 3-Prong
555WB18T10352 GE Oven Relay
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
935WB01T10112 GE Washer Aluminum
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
