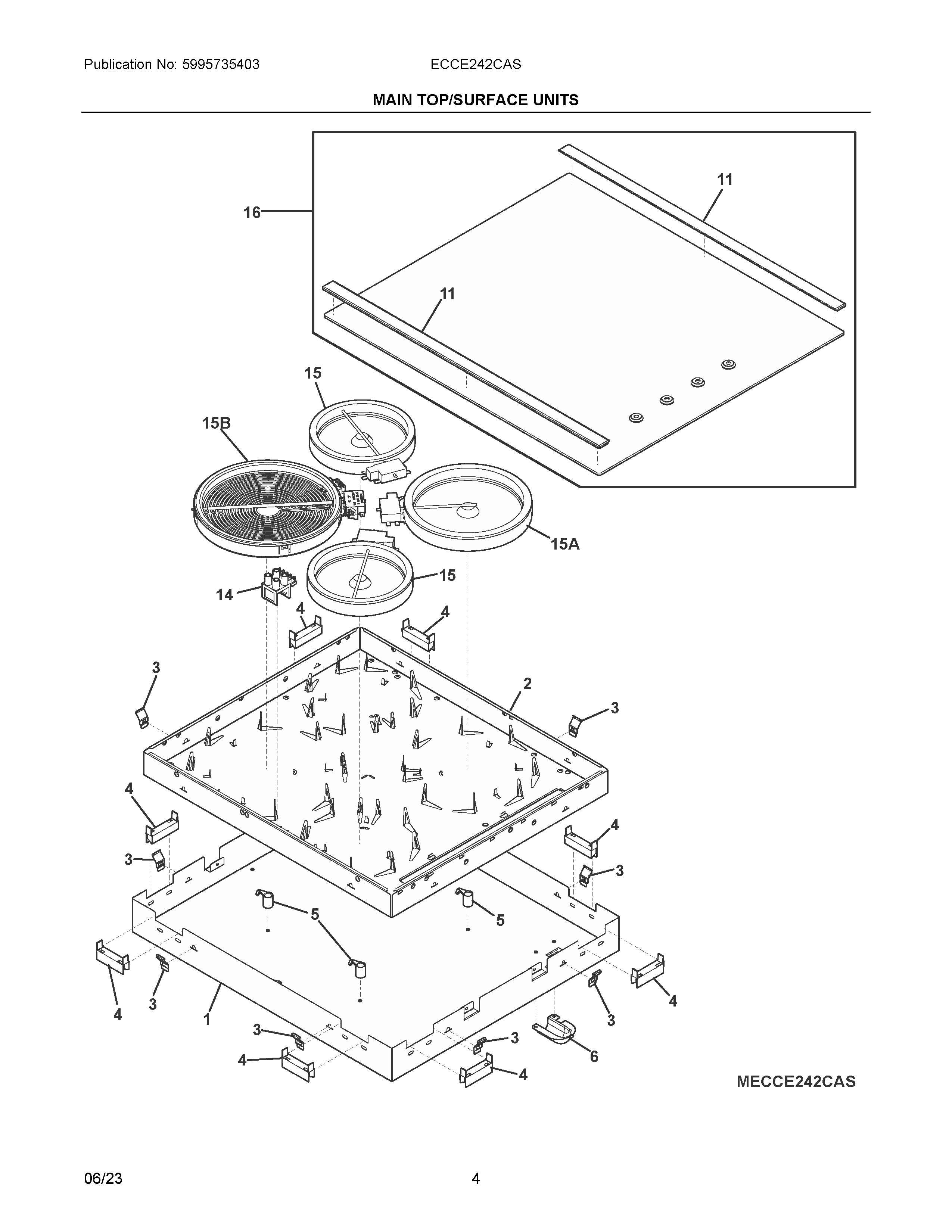

ECCE242CAS 03 – MAIN TOP/SURFACE UNITSadmin2025-04-26T08:51:08+00:00ECCE242CAS 03 – MAIN TOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NIA | 5308014215 Frigidaire Oven Screw |
| NI | HARNESS, WIRING, MAIN |
| NI | 202855101 Frigidaire Holder |
| NI | 330447900 Frigidaire Oven Screw |
| NI | SCREW, M4 |
| NI | 305452800 Frigidaire Screw |
| NI | SCREW, 8 X 5/8, SPARK MODULE |
| NI | HARNESS, WIRING, BOX & CABLE |
| NIA | 5304462994 Frigidaire Oven Screw |
| NIA | 305338602 Frigidaire Screw |
| 1 | BOX |
| 2 | BOX, INNER |
| 3 | 387174602 Frigidaire Oven Bracket |
| 4 | 387627600 Frigidaire Spacer |
| 5 | BRACKET, SUPPORT, PLASTIC |
| 6 | COVER, ELBOW, BOX & CABLE |
| 11 | TRIM, SMOOTHTOP, STAINLESS |
| 12 | 387683300 Frigidaire Bracket |
| 13 | 387372900 Frigidaire SPRING |
| 14 | 387812004 Frigidaire Light Assembly |
| 15 | A02843501 Frigidaire Element |
| 15A | ELEMENT, SURFACE, 7", 1800W |
| 15B | ELEMENT, SURFACE, 5"/8", 750W/2200W |
| 16 | SMOOTHTOP |
| 26 | BRACKET |
