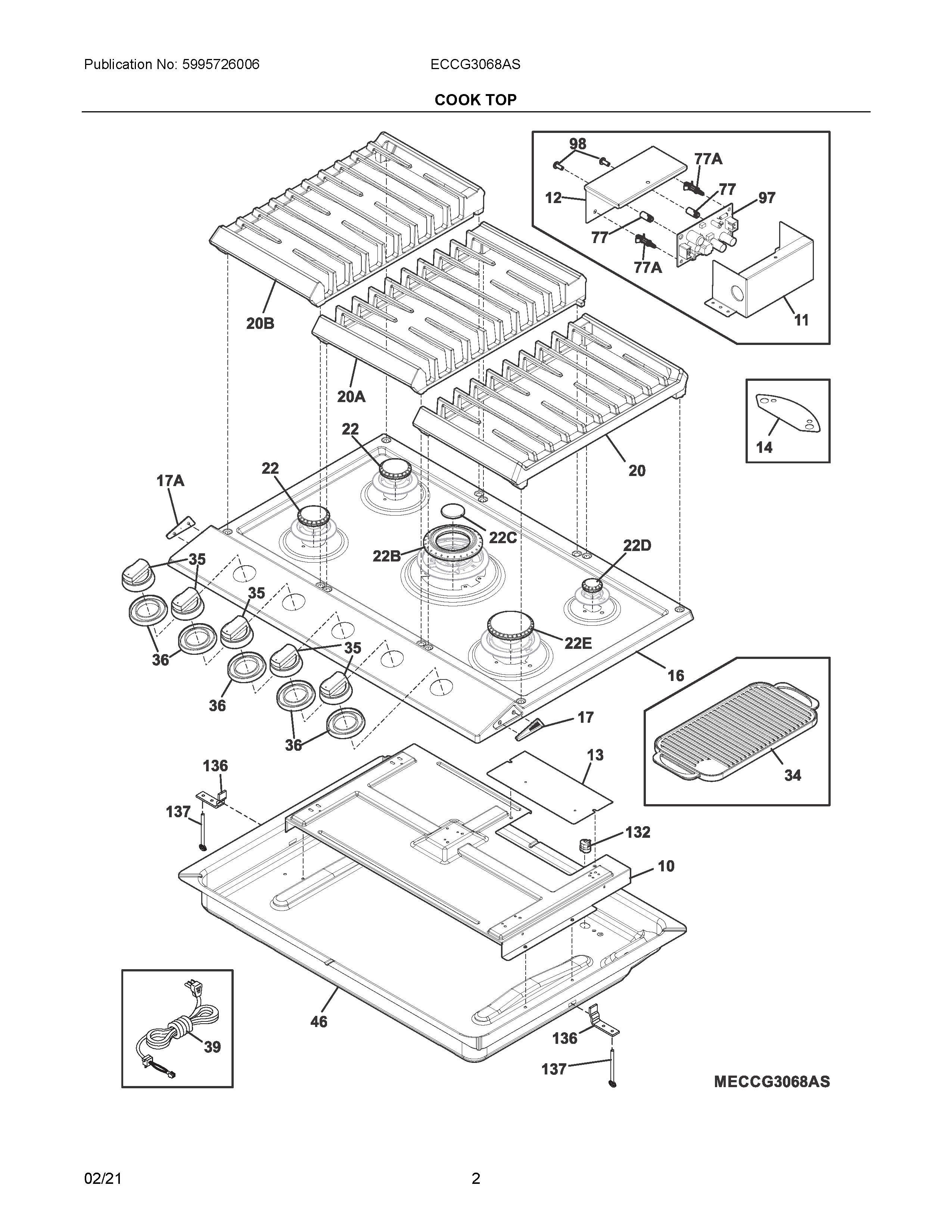

ECCG3068AS 02 – COOK TOP

ECCG3068AS 02 – COOK TOP

Written by

in

ECCG3068AS 02 – COOK TOP

Products

PositionProduct
NI5304527676 Frigidaire Screw
NIA305452800 Frigidaire Screw
NI305338604 Frigidaire Screw
NI305338602 Frigidaire Screw
NIA316574603 Frigidaire Oven FOIL
NIAATAPE, SIDE PLATE, LH
NIATAPE, KNOB BEZEL
NIWCI 318163602
NIATAPE, SIDE PLATE, RH
10SHIELD, HEAT
11SHIELD, HEAT, SMPS BOARD
12COVER, SMPS BOARD
13COVER, SPARK MODULE
14SHIELD, TOP BREATHER
165304527662 Frigidaire Maintop
175304527665 Frigidaire Side Plate
17A5304527666 Frigidaire Side Plate
20GRATE, BURNER, BLACK, RH
20AGRATE, BURNER, BLACK, CENTER
20BGRATE, BURNER, BLACK, LH
225304527669 Frigidaire Cap
22B5304527671 Frigidaire Cap
22E5304527668 Frigidaire Cap
22DCAP, BURNER, 5K, BLACK
22CCAP, BURNER, 20K, BRASS, INNER
345304495353 Frigidaire Oven Griddle
35KNOB, BACKLIT, STAINLESS
36BEZEL, BACKLIT KNOB
39305574902 Frigidaire Power Cord
46BOX, BURNER
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
975304527657 Frigidaire PC Board
98SCREW, M4
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
