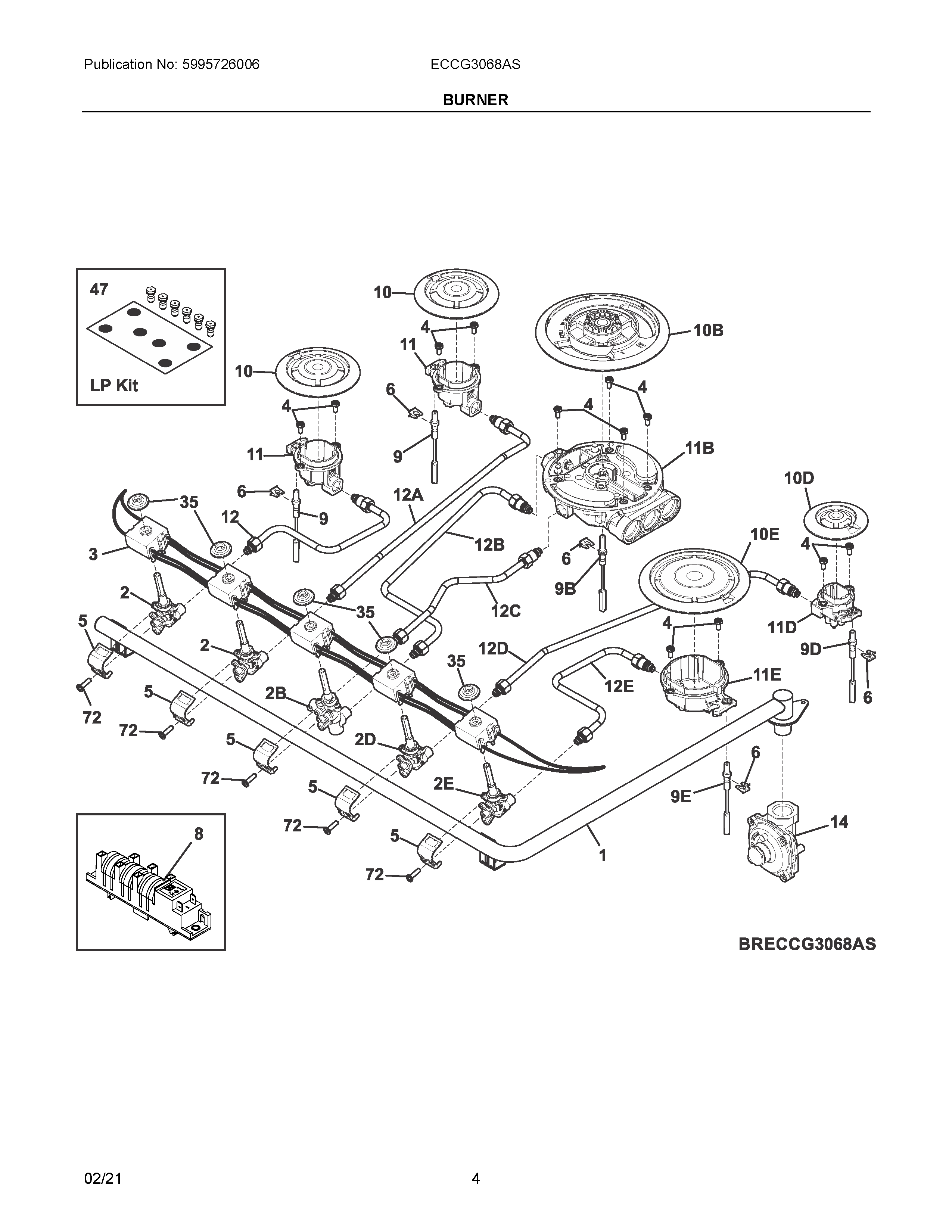

ECCG3068AS 03 – BURNER

Products

PositionProduct
NI305338602 Frigidaire Screw
NIB5304516456 Frigidaire Wire
NIACA
NIA305452800 Frigidaire Screw
1MANIFOLD, GAS
25304527639 Frigidaire Valve
2E5304508472 Frigidaire Oven Valve
2D5304508471 Frigidaire Oven Valve
2B5304508435 Frigidaire Oven Valve
35304527660 Frigidaire Harness Assembly
45304527676 Frigidaire Screw
5357733402 Frigidaire Oven Bracket
6SPRING CLIP IGNITOR
8SPARK MODULE
9EIGNITOR, SPARK, RH FRONT
9DIGNITOR, SPARK, RH REAR
9IGNITOR, SPARK, LH FRONT/REAR
9B5304527647 Frigidaire Igniter Assembly
10E5304527674 Frigidaire Crown
10DCROWN, BURNER, 5K
10BCROWN, BURNER, 20K, DUAL BURNER
10CROWN, BURNER, 9.5K
11DHOLDER ASSEMBLY, IGNITOR/ORIFICE, 5K BTU
115304527642 Frigidaire Holder Assembly
11B5304527640 Frigidaire Holder Assembly
11E5304527643 Frigidaire Holder Assembly
12ATUBE, BURNER, LH REAR
12TUBE, BURNER, LH FRONT
12ETUBE, BURNER, RH FRONT
12C5304527652 Frigidaire Tube
12DTUBE, BURNER, RH REAR
12BTUBE, BURNER, CENTER LEFT
145304519943 Frigidaire Regulator
35GASKET, BACKLIT KNOB
47LP GAS, CONVERSION KIT
725304508436 Frigidaire Oven Screw
