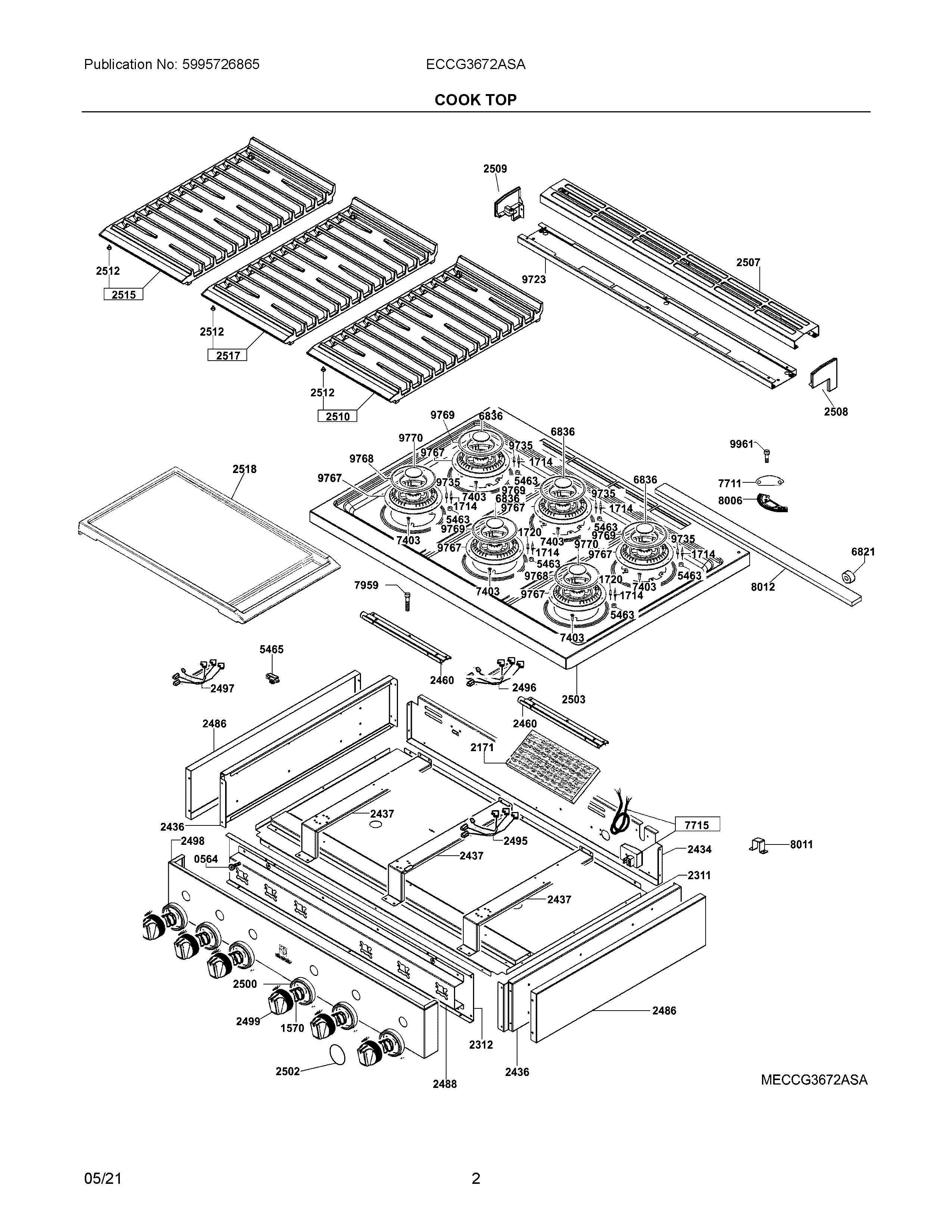

ECCG3672ASA 02 – COOK TOP

ECCG3672ASA 02 – COOK TOP

Products

PositionProduct
564SCREW, BRACKET, (10), CONTROL PANEL
15705304527483 Frigidaire Spring
17145304527484 Frigidaire Thermocouple Sensor
17205304527715 Frigidaire Igniter
2171INSULATION PANEL, JUNCTION BLOCK
2311BOX, BURNER
2312PANEL, SUPPORT, CONTROL PANEL
2434PANEL, REAR
2436PANEL, SUPPORT, SIDE, (2)
2437SUPPORT, BURNERS, (3)
2460BRACKET, SUPPORT, (2)
2486PANEL, SIDE, OUTER, (2)
2488BRACKET, CONTROL PANEL, SUPPORT
2495HARNESS, WIRING
2496HARNESS, WIRING, KNOBS
2497HARNESS, WIRING
2498CONTROL PANEL, STAINLESS
24995304529262 Frigidaire Assembly-Knob
2500TRIM RING, KNOB, (6)
25025304529264 Frigidaire Gasket
25035304529265 Frigidaire Main Top
2510GRATE, BURNER, BLACK, RH, W/BUMPERS
2512BUMPER, BURNER GRATE, (12)
2515GRATE, BURNER, BLACK, LH, W/BUMPERS
2517GRATE, BURNER, BLACK, CENTER, W/BUMPERS
2518GRIDDLE
5463NUT, THERMOCOUPLE, TOP BURNER
5465CLAMP, HARNESS, (10)
6821SPACER, FRAME, REAR, (2)
68365304527495 Frigidaire Cap
7403SCREW, BURNER, M4 X 8
7711PLATE, BURNER
7715CABLE ASSEMBLY, FEEDER
7959SCREW
80065304527505 Frigidaire Gasket
8011BRACKET, ASSEMBLY, TOP MOUNTIN
8012WCI 5304529230
97235304530061 Frigidaire Trim Assemblyy
97355304527546 Frigidaire Igniter
97675304527550 Frigidaire Burner Assembly
97685304527551 Frigidaire Burner Cap
97695304527552 Frigidaire Burner Cap
97705304527553 Frigidaire Cap
9961WCI 5304527449
