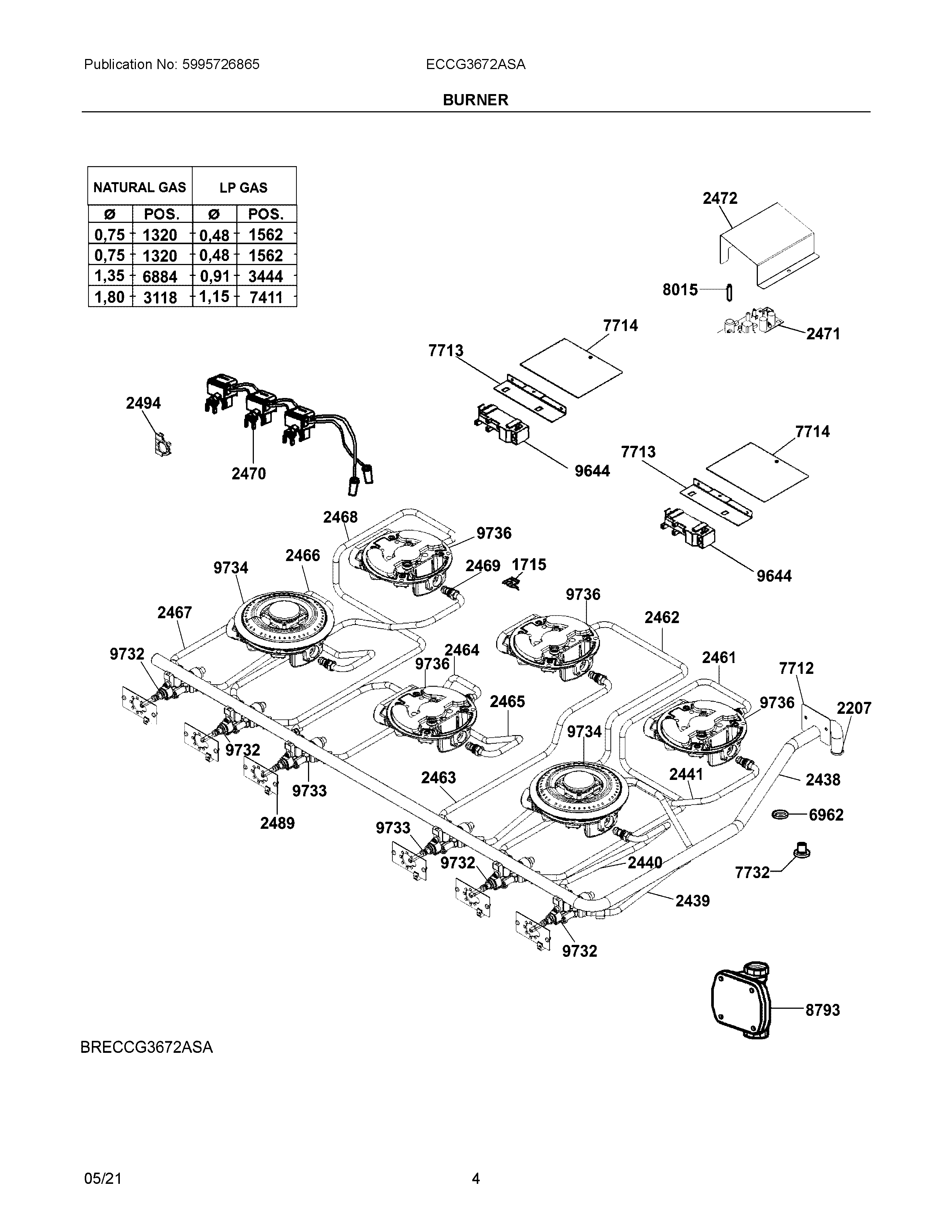

ECCG3672ASA 03 – BURNER

ECCG3672ASA 03 – BURNER

Written by

in

ECCG3672ASA 03 – BURNER

Products

PositionProduct
13205304527459 Frigidaire Orifice
15625304527467 Frigidaire Orifice
1715SPRING CLIP, BURNER
2207CONNECTOR, MANIFOLD TUBE
2438MANIFOLD, TUBE, BURNERS
2439TUBE, DUAL BURNER, RH FRONT, REAR CONNECT
2440TUBE, DUAL BURNER, RH FRONT, SIDE CONNECT
2441TUBE, DUAL BURNER, RH REAR, SIDE CONNECT
2461TUBE, DUAL BURNER, RH REAR, REAR CONNECT
2462TUBE, DUAL BURNER, CENTER REAR, REAR CONNECT
2463TUBE, DUAL BURNER, CENTER REAR, SIDE CONNECT
2464TUBE, DUAL BURNER, CENTER FRONT, REAR CONNECT
2465TUBE, DUAL BURNER, CENTER FRONT, SIDE CONNECT
2466TUBE, DUAL BURNER, LH FRONT, REAR CONNECT
2467TUBE, DUAL BURNER, LH FRONT, SIDE CONNECT
2468TUBE, DUAL BURNER, LH REAR, REAR CONNECT
2469TUBE, DUAL BURNER, LH REAR, SIDE CONNECT
24705304529251 Frigidaire Harness Assembly
24715304529252 Frigidaire PCB Board
2472COVER, PC BOARD
24895304529256 Frigidaire Pc Board
2494HARNESS ASSEMBLY, MICRO SWITCHES, LED BOARDS
3118ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERNAL, (2), DUAL BURNER
34445304527696 Frigidaire Orifice
6884ORIFICE, NATURAL GAS, D.1, 35-12K BTU
69625304527447 Frigidaire Seal
74115304527438 Frigidaire Orifice
7712WCI 5304529225
7713WCI 5304529226
7714WCI 5304529227
7732CAP, GAS PIPE
8015SPACER, ELECTRONIC UNIT, (3)
87935304527531 Frigidaire Regulator
96445304527443 Frigidaire Module
97325304527750 Frigidaire Valve
97335304527544 Frigidaire Valve
97345304527545 Frigidaire Holder Assembly
97365304527751 Frigidaire Assembly Holder
