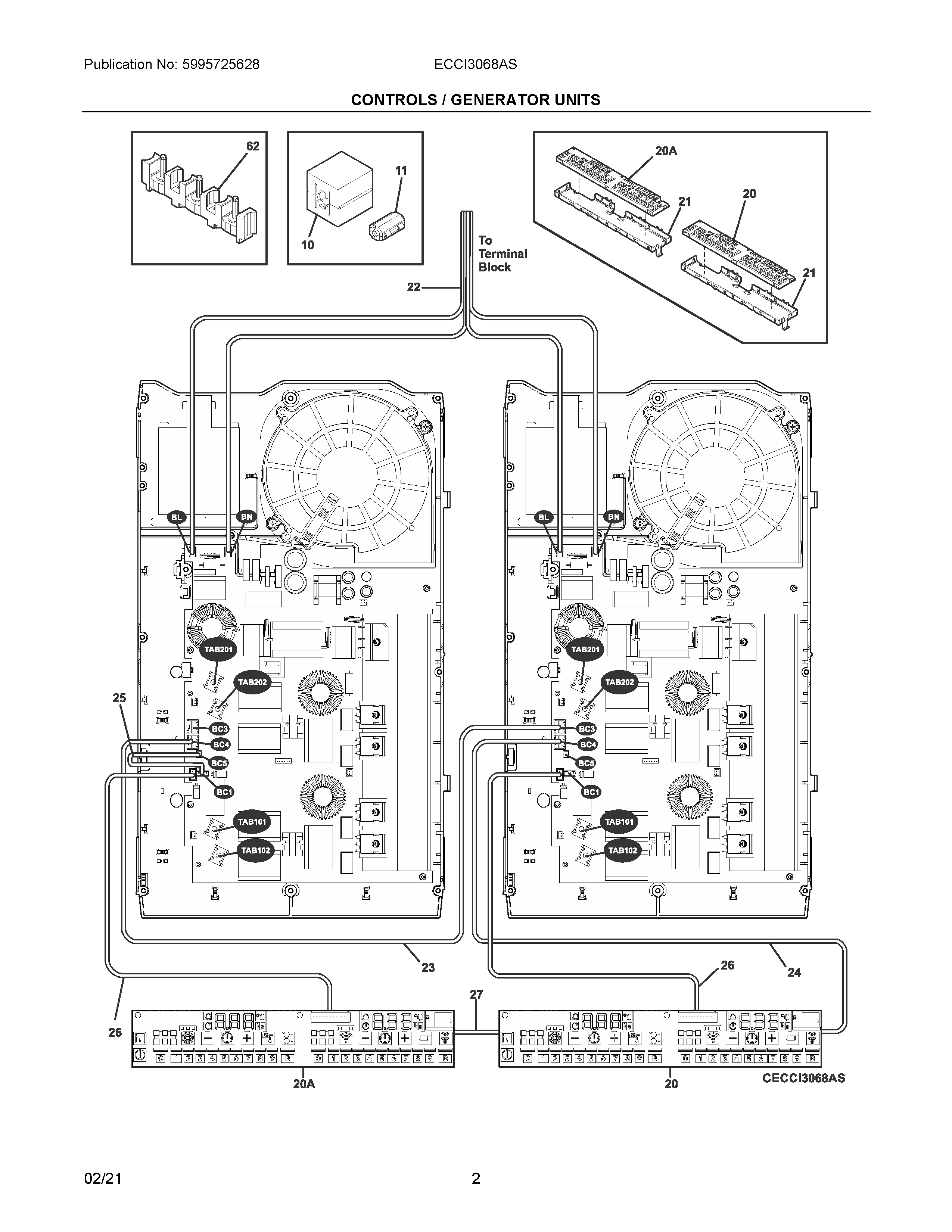

ECCI3068AS 02 – CONTROLS / GENERATOR UNITSadmin2025-04-26T08:51:12+00:00ECCI3068AS 02 – CONTROLS / GENERATOR UNITS
Products
| Position | Product |
|---|
| NI | 5304527611 Frigidaire Assembly Filter |
| NIB | NUT, TERMINAL BLOCK, (2) |
| NIA | SCREW, M4 |
| NI | 5304527623 Frigidaire Harness Assembly |
| NI | 5304527610 Frigidaire Box & Wires Assembly |
| NIC | 305452800 Frigidaire Screw |
| 1 | 5304527612 Frigidaire Assembly-Generator |
| 10 | 5304506076 Frigidaire Filter |
| 11 | 5304514339 Frigidaire Filter |
| 20A | 5304527618 Frigidaire Pc Board |
| 20 | 5304527619 Frigidaire PC Board |
| 21 | CARRIER, USER INTERFACE |
| 22 | 5304527613 Frigidaire Harness |
| 23 | 318578332 Frigidaire Oven Harness |
| 24 | HARNESS, WIRING, COMMUNICATION, UI TO GENERATOR |
| 25 | JUMPER ASSEMBLY, BC1-BC5 |
| 26 | HARNESS, WIRING, GENERATOR, TO UI BOARD |
| 27 | HARNESS, WIRING, UI BOARDS, CONNECTING |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
