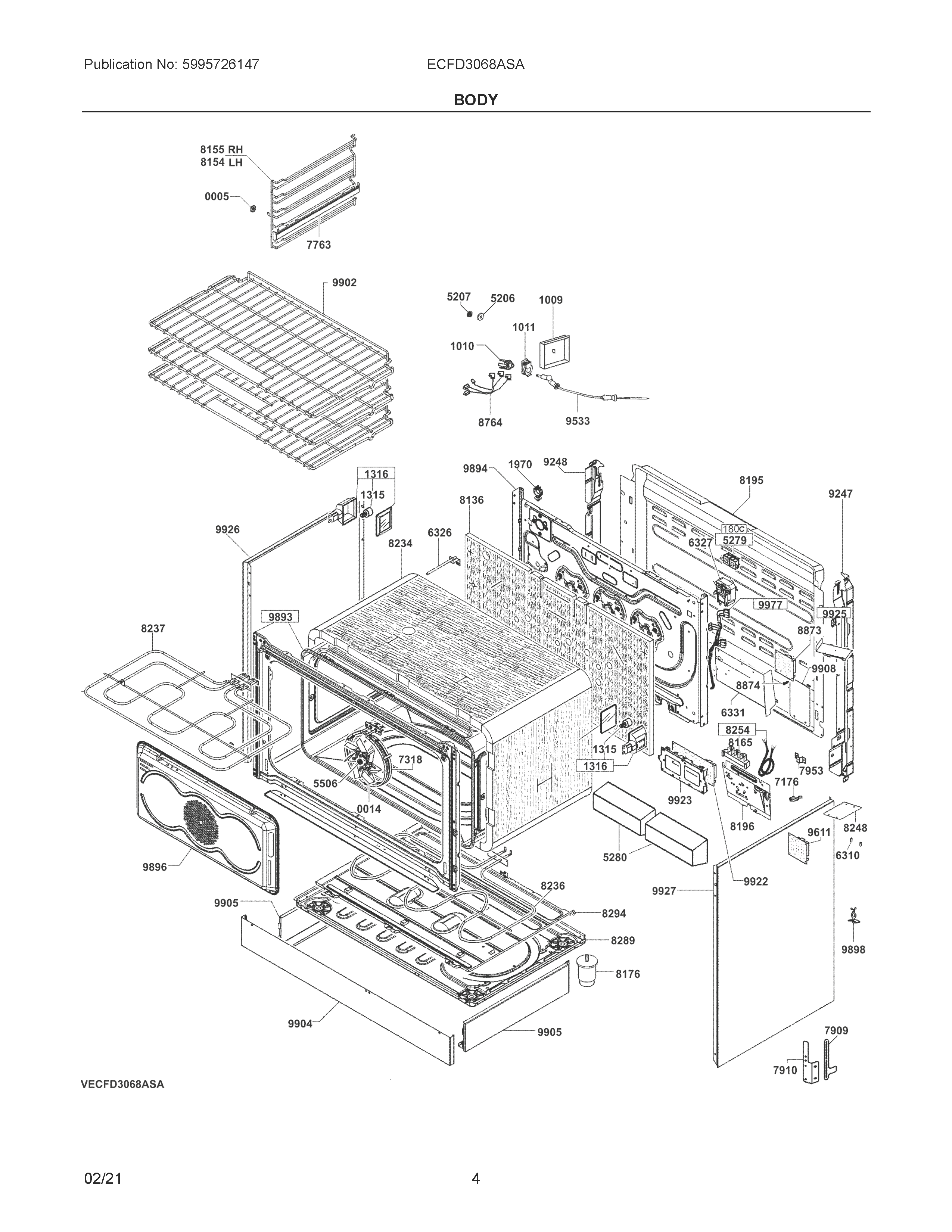

ECFD3068ASA 03 – BODY

ECFD3068ASA 03 – BODY

Written by

in

ECFD3068ASA 03 – BODY

Products

PositionProduct
5BUSHING, RACK SUPPORT, (4)
145304527454 Frigidaire Blade
1009SHIELD, PROBE, PROTECTION BOX
10105304527481 Frigidaire Receptacle Assembly
1011COVER, RECEPTACLE, MEAT PROBE
1315BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2)
1316LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), W/BULB
1970CLAMP, CABLE, (6)
5206WASHER
5207NUT
52795304527474 Frigidaire Thermostat
5280COUNTERWEIGHT, (2)
55065304527436 Frigidaire Nut
6310SPACER, (4)
63265304527492 Frigidaire Probe
63275304527493 Frigidaire Motor
63315304527494 Frigidaire Power Electronics
7176CLAMP, HOSE, RTE12000
7318ELEMENT, CONVECTION, 2700W
77635304527498 Frigidaire Glide Kit
79095304533551 Frigidaire Bracket and Hook Assembly
7953BRACKET, ATTACHMENT
8136INSULATION, OVEN, BACK
8154LADDER SUPPORT, OVEN RACK, LH
8155LADDER SUPPORT, OVEN RACK, RH
81655304527478 Frigidaire Block Terminal
81765304527518 Frigidaire Assembly Foot
8195PANEL, MAIN BACK
81965304527520 Frigidaire Support
8234INSULATION, OVEN WRAPPER
82365304527522 Frigidaire Element
8237ELEMENT, BROIL, UPPER, 3300W
8248SHIELD, FEEDER BOARD
82545304527525 Frigidaire Feeder Cable
8289BASE, OVEN BOTTOM
8294BURNER BOX, SUPPORT, HIDDEN BAKE
87645304527530 Frigidaire Harness
88735304531582 Frigidaire PC Board
8874SPACER, PC BOARD, (5)
9247WCI 5304527457
9248WCI 5304527458
95335304527535 Frigidaire Probe
96115304527540 Frigidaire PC Board
9893WCI 5304527555
9894WCI 5304527556
9896WCI 5304527557
9898WCI 5304527444
99025304527563 Frigidaire Rack
99045304527564 Frigidaire Plinth
9905WCI 5304527565
9908WCI 5304527568
99225304527570 Frigidaire PC Board
9923WCI 5304527571
9925WCI 5304527572
9926WCI 5304527573
9927PANEL
9977HARNESS
