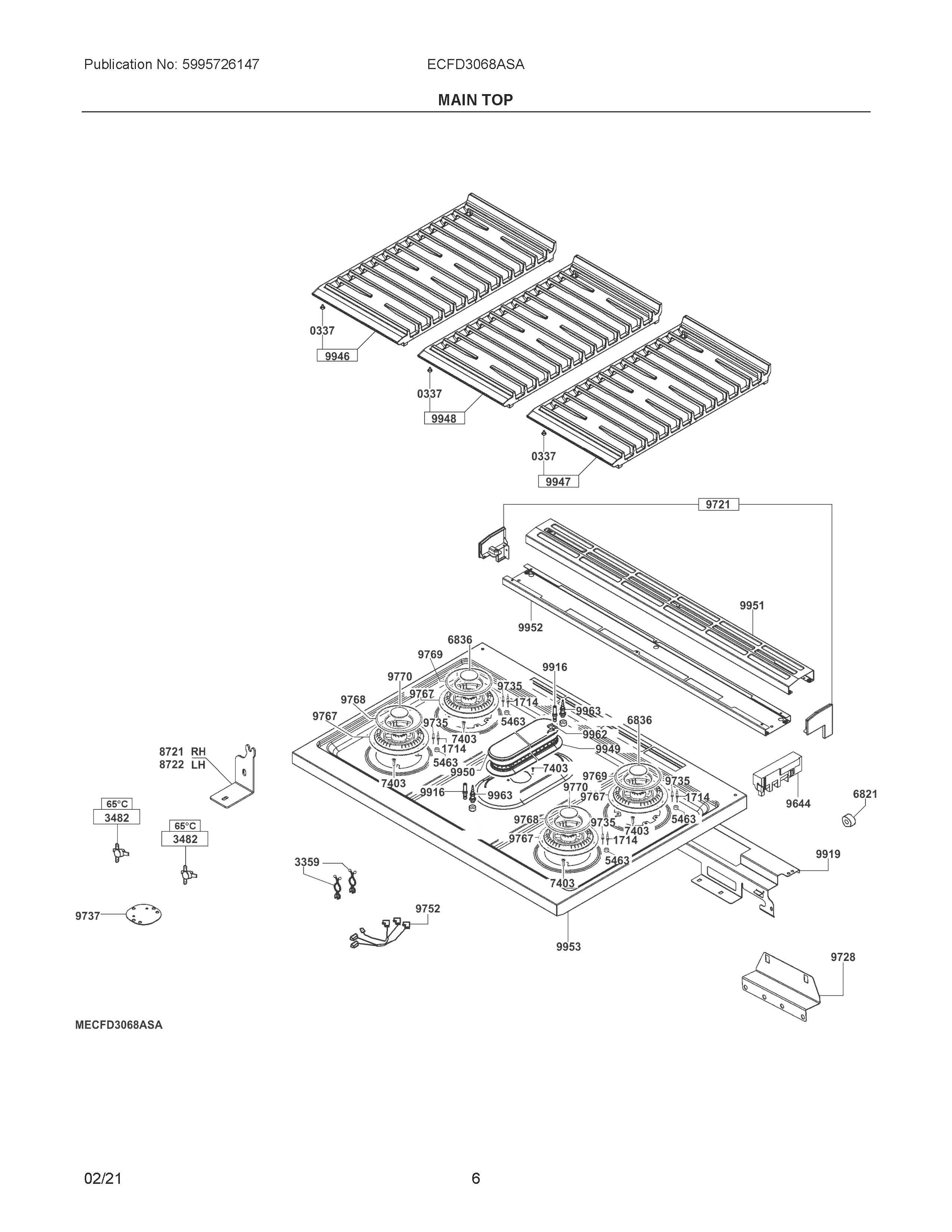

ECFD3068ASA 04 – MAIN TOP

ECFD3068ASA 04 – MAIN TOP

Written by

in

ECFD3068ASA 04 – MAIN TOP

Products

PositionProduct
3375304531583 Frigidaire Foot
17145304527484 Frigidaire Thermocouple Sensor
3359CLIP, WIRING, SPARK IGNITOR
34825304527486 Frigidaire Thermostat
5463NUT, THERMOCOUPLE, TOP BURNER
6821SPACER, FRAME, REAR, (2)
68365304527495 Frigidaire Cap
7403SCREW, BURNER, M4 X 8
8721BRACKET, RH
8722BRACKET, LH
96445304527443 Frigidaire Module
97215304527541 Frigidaire Bracket Side
9728BRACKET, SUPPORT, (2)
97355304527546 Frigidaire Igniter
9737PLATE, COOK TOP, (2)
97525304527548 Frigidaire Harness Assembly
97675304527550 Frigidaire Burner Assembly
97685304527551 Frigidaire Burner Cap
97695304527552 Frigidaire Burner Cap
97705304527553 Frigidaire Cap
9916IGNITOR, SPARK, CENTER, (2)
9919SUPPORT, COOK TOP, REAR
99465304527575 Frigidaire Grate
99475304527576 Frigidaire Grate
9948GRATE, TOP BURNER, BLACK, CENTER, W/BUMPERS
9949BURNER, SUPPORT, CENTER, (2), FLAME SPREADER
9950BURNER CAP
9951TRIM, COOK TOP, STAINLESS, REAR
9952BRACKET, REAR TRIM
99535304527582 Frigidaire Maintop
9962CLIP, SPRING, (5)
99635304527591 Frigidaire Thermocouple
